Back to overview New WLAN antenna cable with MHF® 4L connector ADA-WLAN-DUAL-0500CX-2XMHF4-6E Discover the new ES&S antenna for ultimate WLAN flexibility! With our innovative antenna, you can harness the complete potential of your WLAN connections. Backed by support for the 2.4 GHz, 5 GHz, and groundbreaking 6 GHz bands, you're optimally equipped to meet all internal demands.. The ability to utilise the new Wi-Fi 6E frequency range, which is specially designed for short distances, is particularly outstanding. The integration of the 6 GHz band opens up completely new possibilities for lightning-fast and reliable connections. Practical and time-saving, it is easy to install directly on your PCB thanks to the self-adhesive backing - without any additional tools.

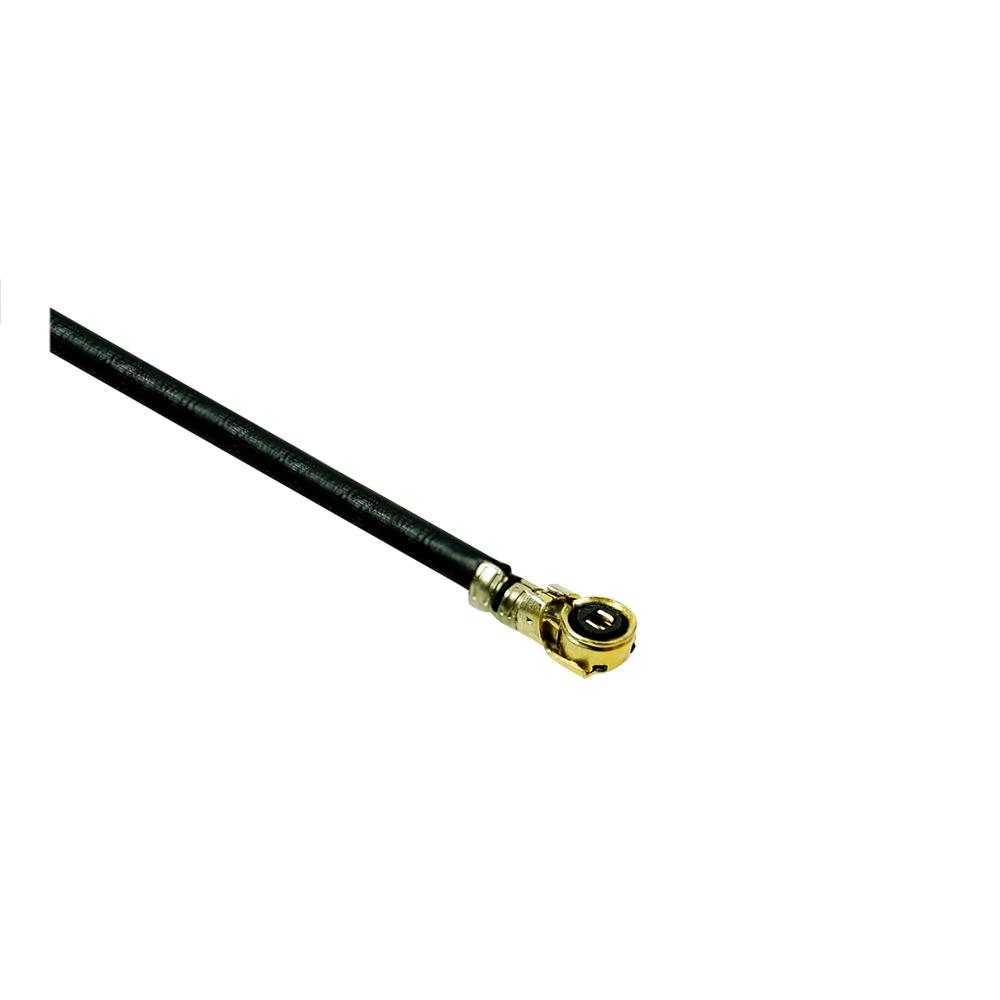

Connection: 2 x I-PEX 20565-001R, MHF® 4L connector

Frequency range: 2400 - 2500 MHz

5150 - 5850 MHz 5925 - 7125 MHZ

Supported standards: Bluetooth, WLAN 2.4, 5.0 GHz, 6.0 GHz, ZigBee 2.4 GHz, ISM

Antenna gain: 3 - 5 dB

VSWR: 2.0

Impedance: 50 Ohm

Polarisation: linear, vertical

Mounting type: Adhesive mounting

Operating temperature: -20 °C ~ 70 °C

Housing material: FR4

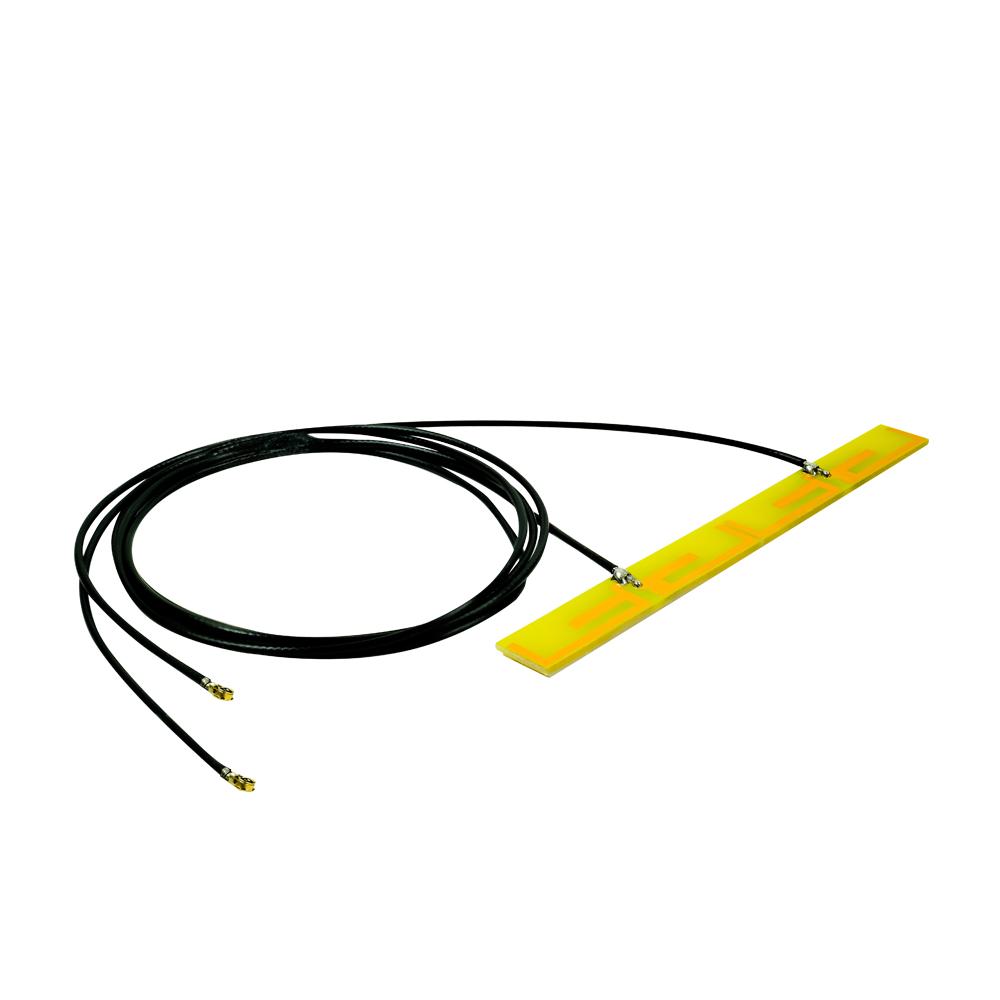

Cable: coaxial, L = 500 mm

Outer diameter: Ø 1.13 mm

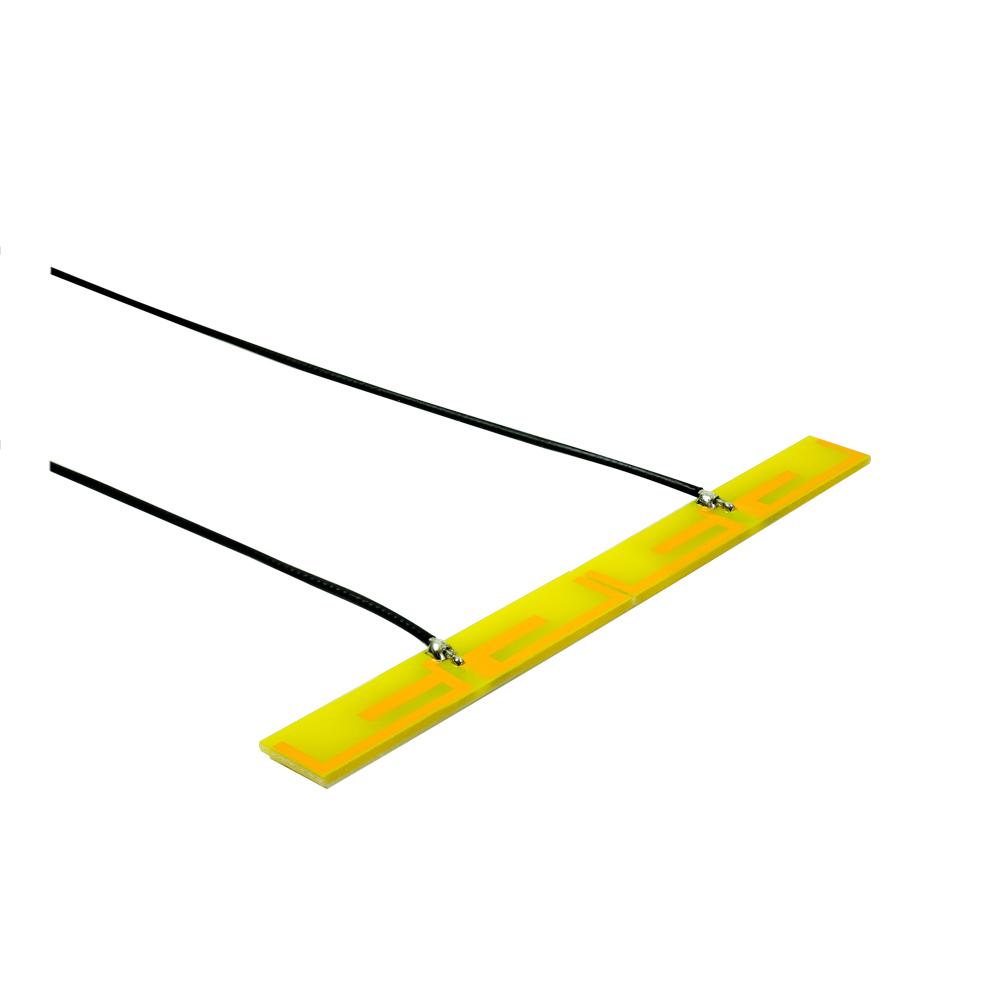

With a PCB size of only 82 x 7.0 x 1.6 mm and a weight of approx. 4.5 g, our antenna offers a compact and powerful solution for your WLAN requirements. Discover the future of WLAN with our ES&S antenna now and contact us for customised solutions!
