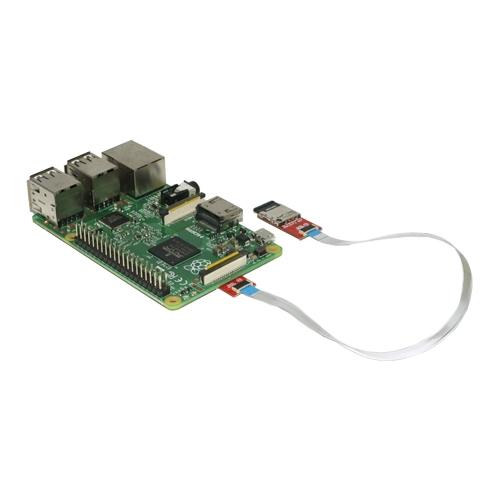

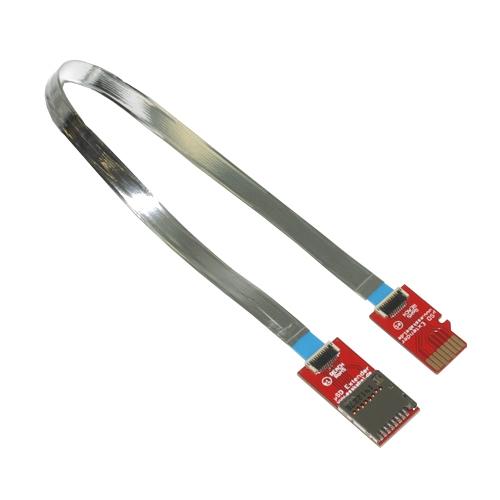

MicroSD Extender ADA-MICROSD-EXTENDER-0100S This adapter set is designed to change the position of micro-sd card slot or to preserve the SD port. This adapter fits for example to Raspberry PI boards. The detection of the card change (hot-plug) may not be ensured under certain circumstances (system-dependent).

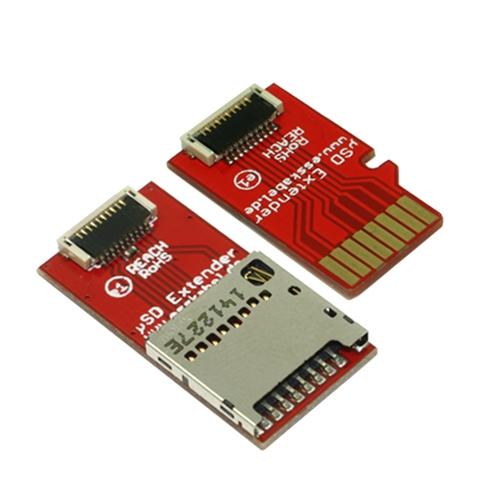

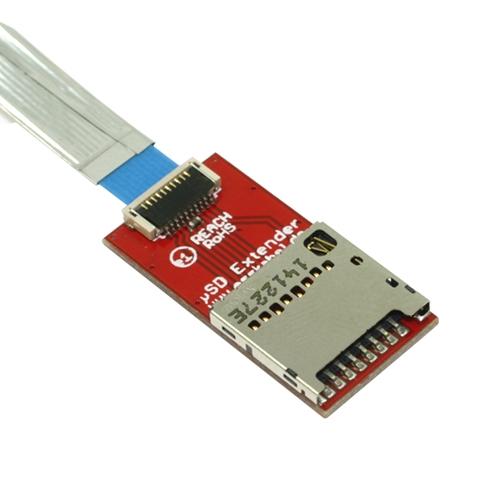

Side 1:

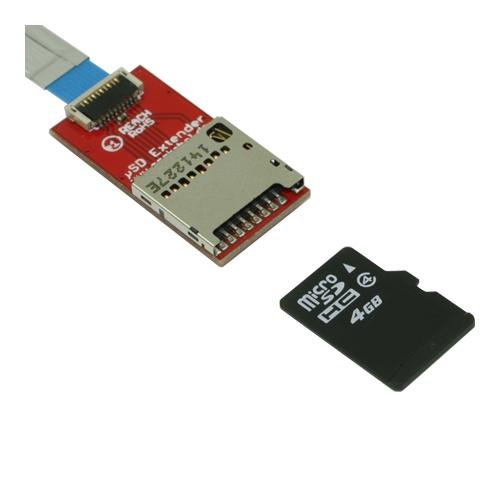

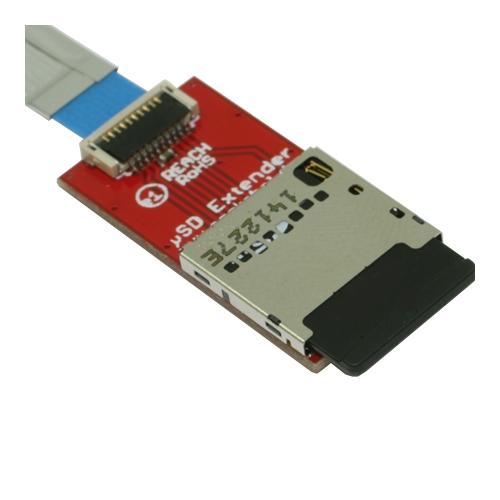

SMD Molex Memory slot, typ push-pull, 1.42 mm hight, with detect switch FPC/FFC Amphenol FCI connector VLL series, pitch 0.50 mm, 10-pin

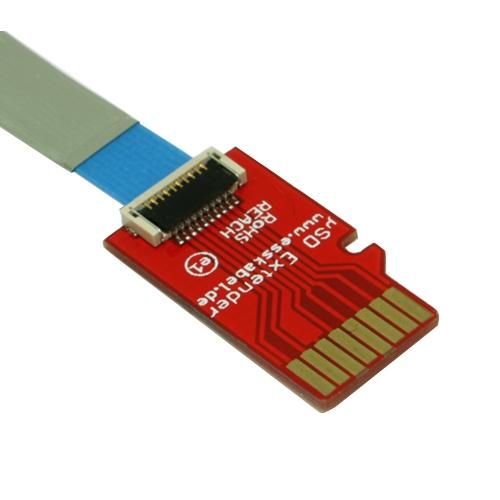

Side 2:

Micro SD card FPC/FFC Amphenol FCI Connector VLL series, ZIF, pitch 0.50 mm, 10-pin FFC Kabel: stripped on oppersite side, Hot Melt geschirmt, Pin 1 and Pin 10 are connected with the shield, max. 200 mA, UL2896

dimension: 100 mm (l)

operating temperature: -10 °C to 80 °C

weight: 4.6 g

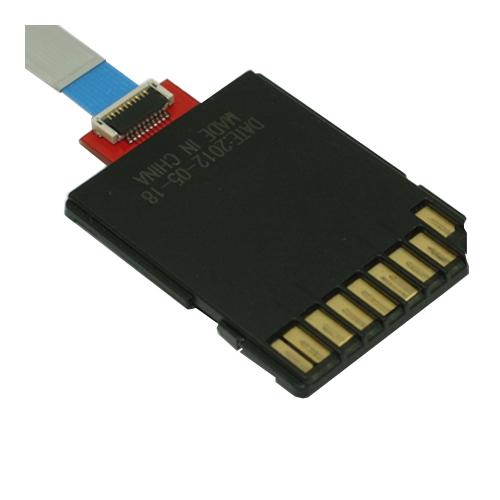

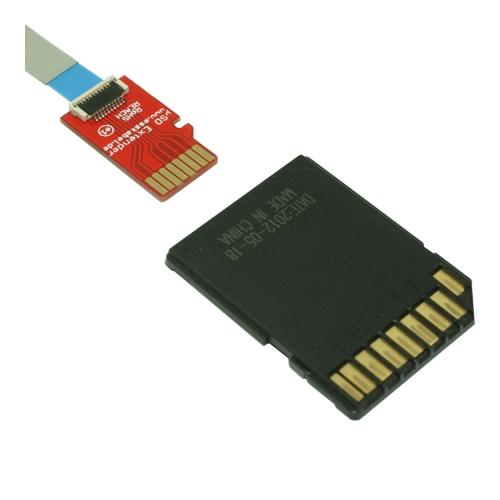

Available is this adapter set in following lengths: ADA-MICROSD-EXTENDER-0100S = 100 mm FFC ADA-MICROSD-EXTENDER-0200S = 200 mm FFC ADA-MICROSD-EXTENDER-0300S = 300 mm FFC ADA-MICROSD-EXTENDER-0400S = 400 mm FFC Every FFC cable is available with an mindestorderquantity of 10 pcs. with our part no.: FFC0.50D10-0094L-3-3-05-05-SHIELD-2PIN FFC0.50D10-0194L-3-3-05-05-SHIELD-2PIN FFC0.50D10-0294L-3-3-05-05-SHIELD-2PIN FFC0.50D10-0394L-3-3-05-05-SHIELD-2PIN This adapter is suitable for example Raspberry Pi boards. The detection of card change (hot plug) may not be guaranteed (system-dependent). Information about the suitable SD card adapter can be found here .
