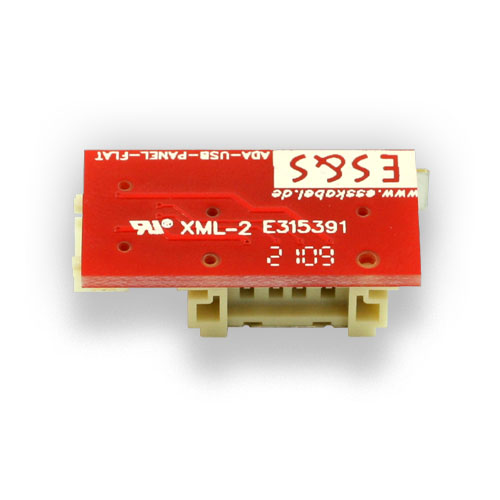

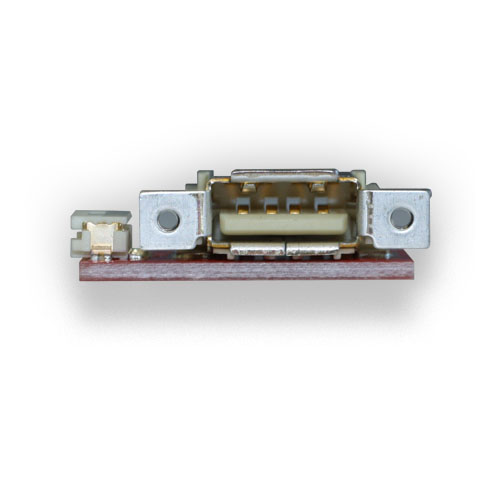

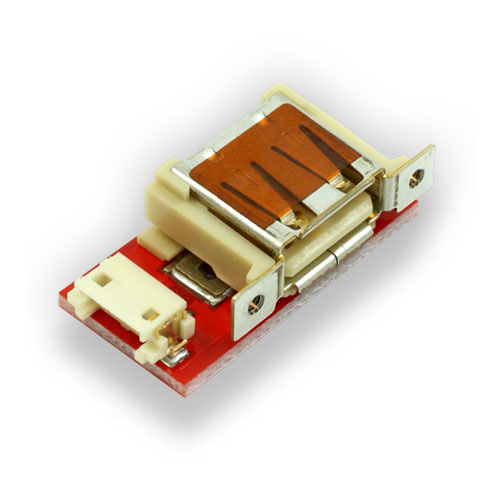

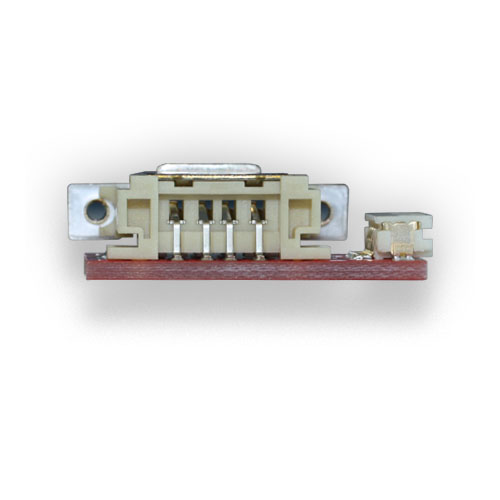

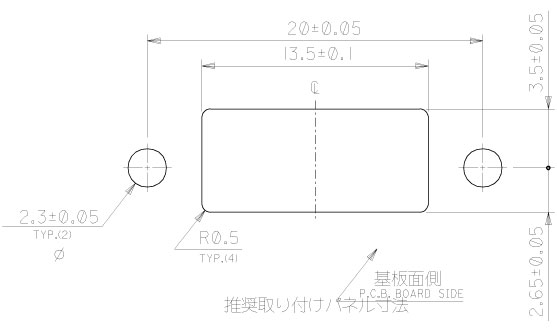

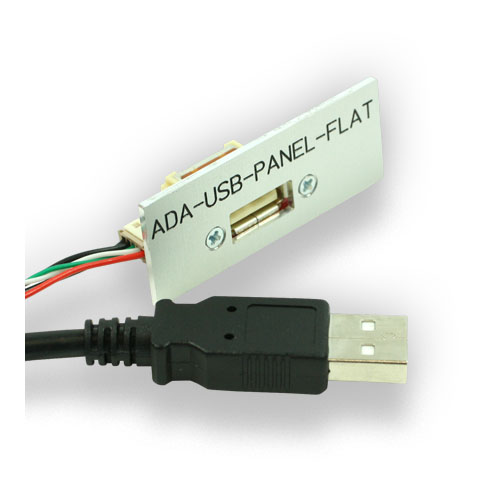

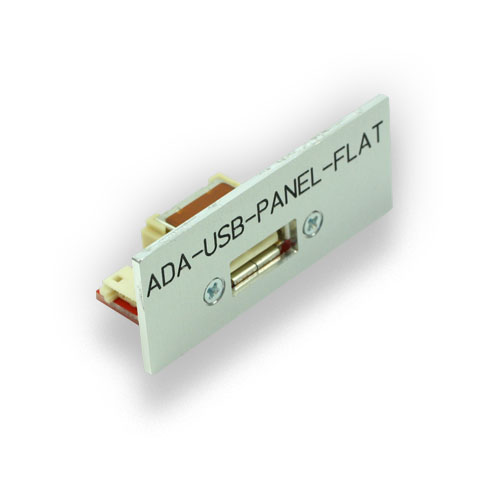

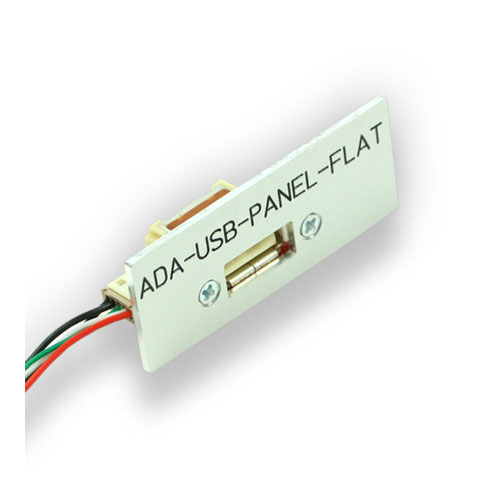

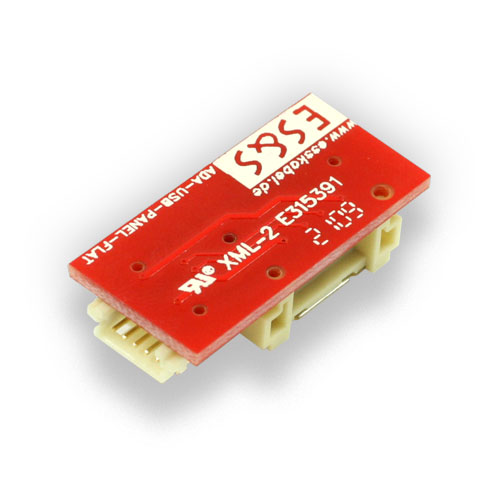

Adapter USB-A to DF13-05P-1.25H connector ADA-USB-PANEL-FLAT with M2 thread The adapter ADA-USB-PANEL-FLAT is a board which adapts from an USB A socket to a 5-pin DF13-05P-1.25H connector. This board with a particular small panel thickness can be mounted to a sled wall by screws (panel mounting).

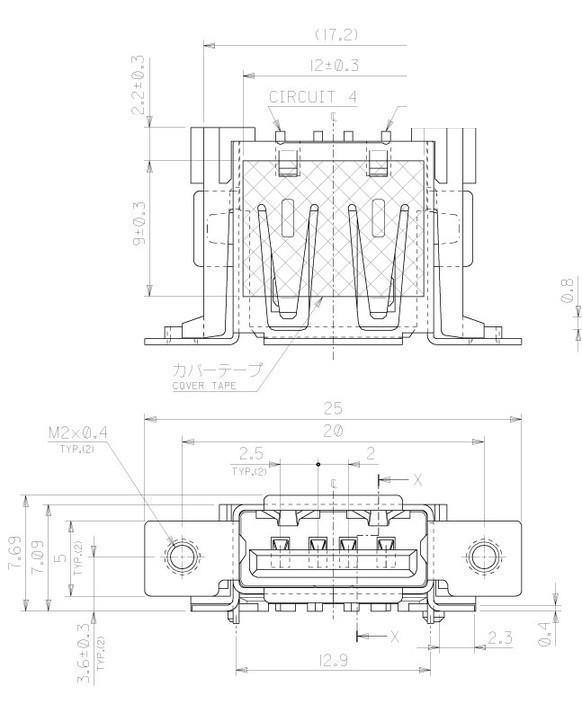

side 1: 4-pin. USB male SMT

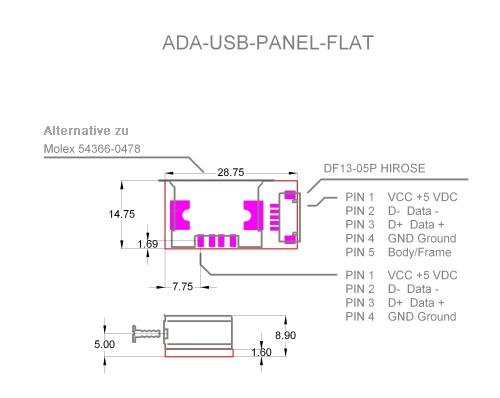

side 2: 5-pin. DF13-05P-1.25H

RoHS compliant

dimension: 30.5 (l) x 14.9 (w) x 9.5 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 4.2g

Suitable for connection with customer specific cables. Suitable for connection with ES&S standard cables: KAB-ADA-USB-AM-0500RK-FLAT (side 1: DF13-5S to side 2: USB typ A male, l = 500 mm). Screws and cables are not included.
