Technical drawing

STE-IP67-VM-RJ45-FEM-PANEL-G-P

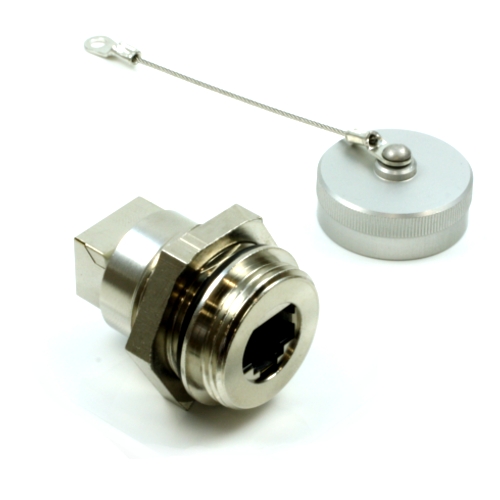

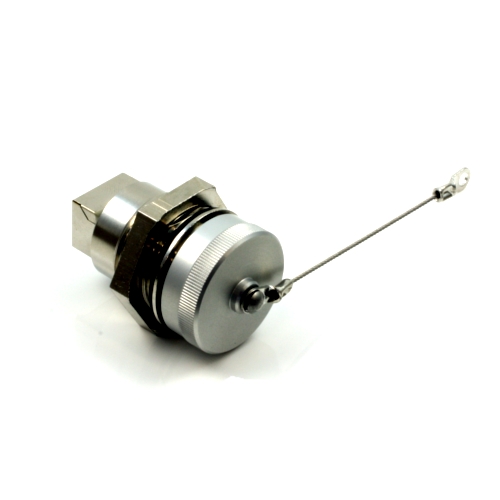

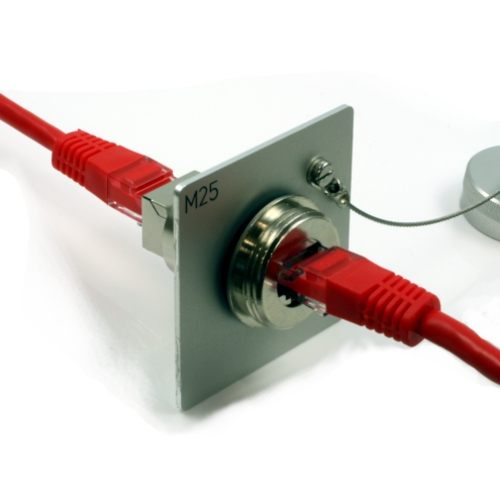

Technical drawing RJ45 jack full metal housing version with connection to both sites for patch cables guarantees a robust construction and the panel jacket is suitable for industrial applications. 8 pin jack (female nickel plated brass) metal version shielded 1:1 connection CAT5e protection cap aluminum anodized with seal ring and wire strap P67 protection class only with dustcover mounting from the back screwed breakdown has  the  size of M25

dimension: 37 (l) x 30 (w) x 30 (h) (in mm)

weight: 60 g

Our fitting cable assembly: KAB-IP67-VM-RJ45-MALE-FLANSCH-0500RK . with connecting nut and cable fitting. You will find auxiliary equipment under the category IP67 accessories .
