ADA-IP67-M20-ABM0-U3AM-0500

Order code Technical drawing

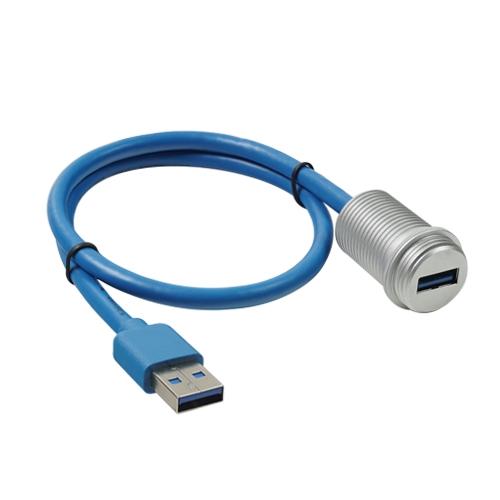

This USB built-in socket is available in the standard 500 mm length, customized lengths are available on request (MOQ: 25 pieces). With the screwable closing cap and its rubber seal the adaptor reaches protection class IP67. The socket, with its high-quality aluminum housing, can even be used for industrial applications.

The mounting socket, offered in a silver anodized aluminum adapter standard version, is available in many customized metal and color variations. Please refer to the order code attached for your preferred version. Our standard scope of delivery ADA-IP67-M20-ABM0-U3AM-0500 contains the matching plane nut (M20 x 1.5-3.0), a closing cap with its rubber flap and a washer appropriate to any case with a thickness lower than 3 mm. You can add other components, such as a self-locking nut or a smooth cap, anytime.

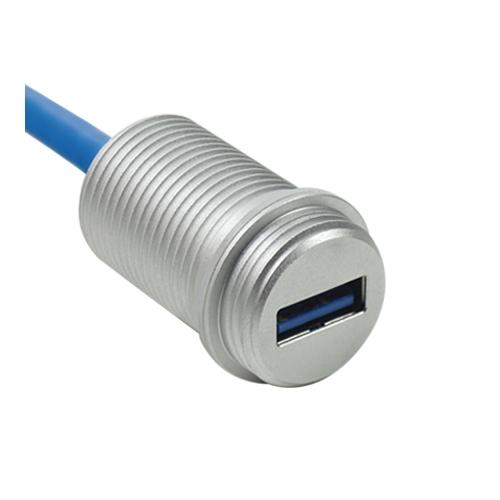

side 1: USB 3.0 type A, female

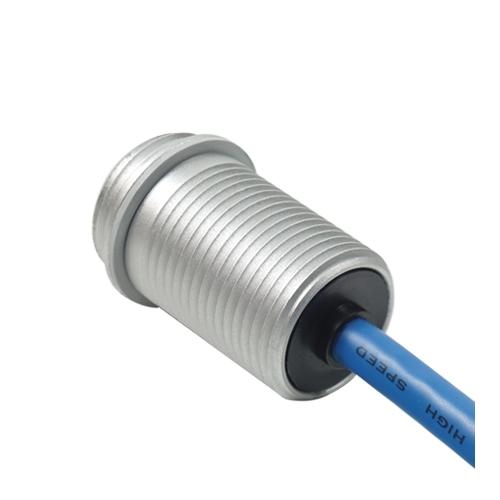

side 2: Cable USB 3.0 (L = 500 mm);

USB 3.0 type A, male silver anodized aluminium housing

screw connection: M20 x 1.5-3.0

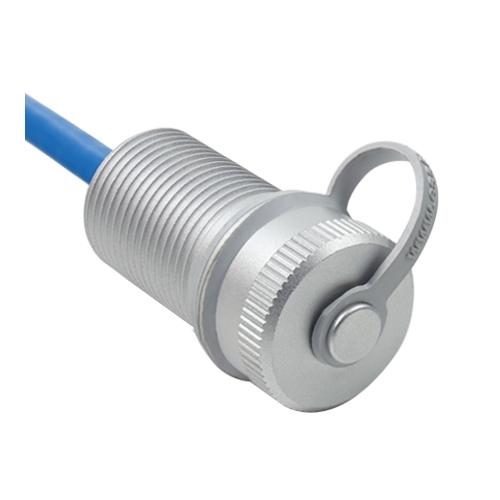

aluminium closing cap with rubber flap

AL6061

USB cable length: L = 500 mm

weight: ~ 33 g

Please find further attachments, matching the IP67 series, here.
