Datasheet

KAB-IP67-VM-USB-B-F-USB-MINI-B-M-0500RK-M20

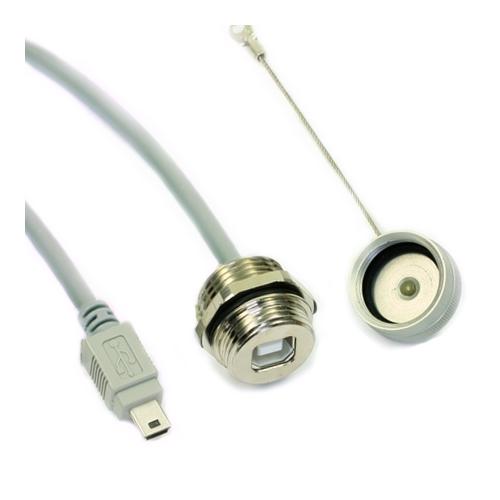

Datasheet USB type B female connector with protection class IP67 and a connection cable of 500 mm length to an USB type B Mini male without protection class (common type of PC).

side 1: IP67 USB type B female metal version including  nut and gasket M20x1,5 mm, screwable  to front with  all-metal dustcover, natural anodized

side 2: USB Mini type B male

USB 2.0 cable, shielded in grey length 500 mm UL 2725 This cable is available in various lengths: KAB-IP67-VM-USB-B-F-USB-MINI-B-M-0180RK-M20 (l = 180 mm) KAB-IP67-VM-USB-B-F-USB-MINI-B-M-0600RK-M20 (l = 600 mm) You will find auxiliary equipment as the suitable dustcover under the category IP67 accessories .
