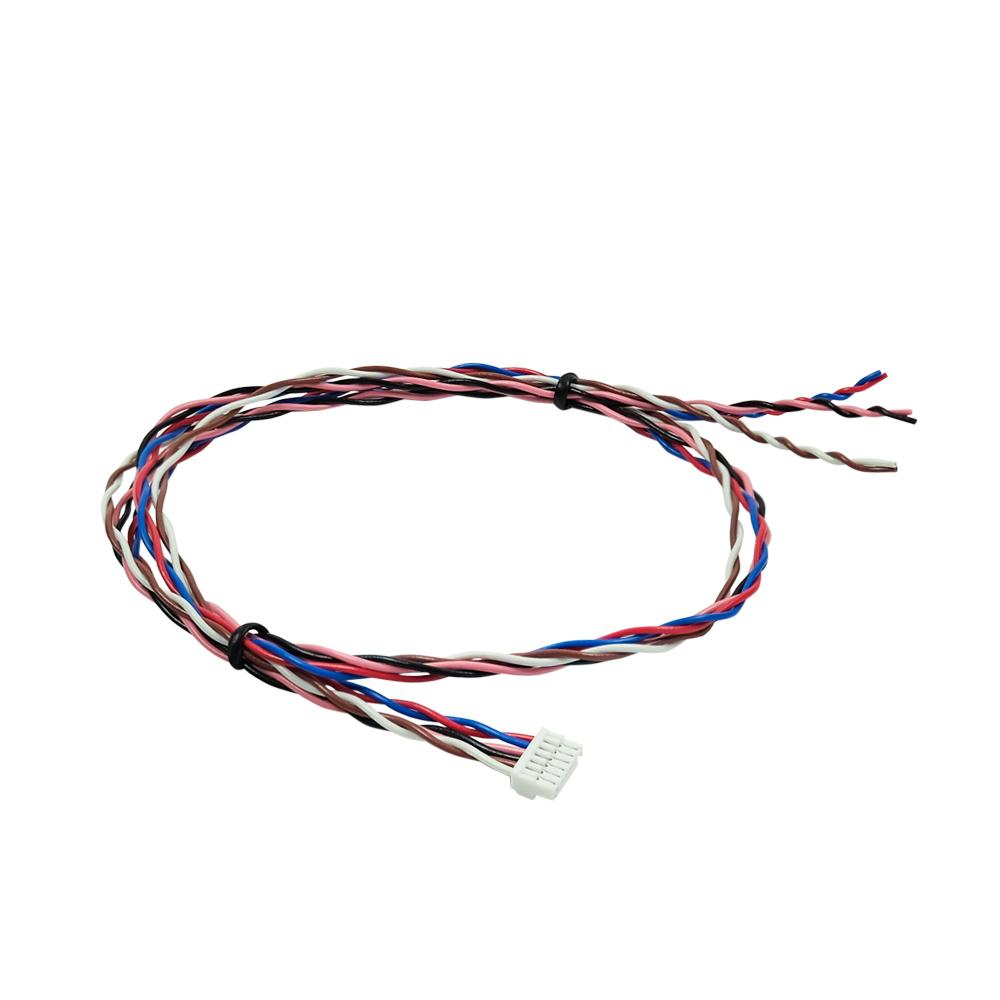

Back to overview New Motor connection cable for the ELS35 series | 6-pin KAB-GHR-06V-S-0500LI-ELS35 DOL-MK-S01 Motor Connection Cable for Miniature Servo Motors of the SICK ELS35 Series This new connection cable has been specifically designed to ensure a reliable and efficient connection between SICK miniature servo motors of the ELS/ELM35 series and any terminal. The 6-pin stranded cable is equipped with a JST connector from the GH series (GHR-06V-S) and offers easy and error-free installation due to the different colouring of the strands.

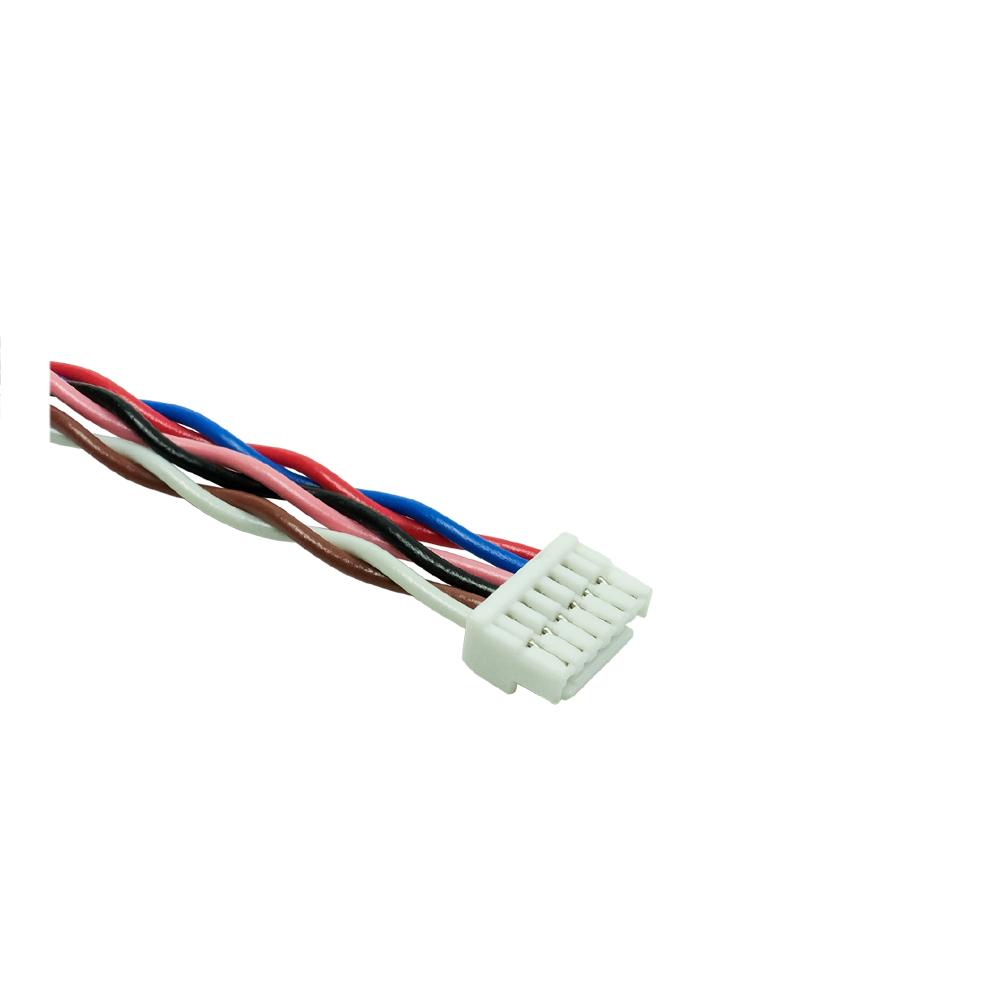

Side 1: GHR-06V-S

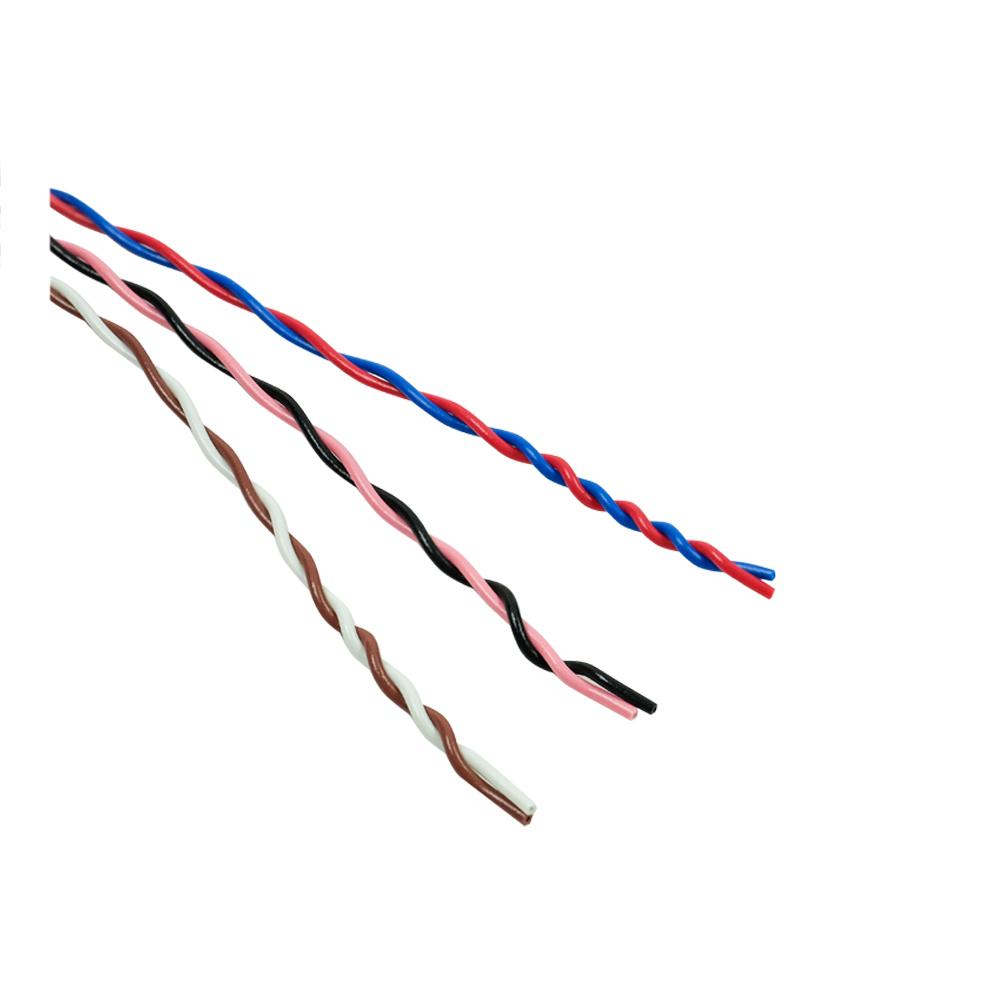

Side 2: open, smoothly cut

Wires: 6 x stranded, AWG26, L = 500 mm

Twisted: brown/white + black/red + red/blue

UL1061

Compatibility:

SICK Motor: ELS/ELM35, ELS35-0CA0A024A, ELM35-0CA0A024A, ELS35-0CA0A024A-40, ELM35-0CA0A024A-40

Identical to: DOL-MK-S01 Motor Connection Cable for ELS35 Series

Interface: BiSS C interface

Product Notes

Perfect compatibility: Specially developed for the SICK miniature servo motors of the ELS/ELM35 series.

Customisable: Custom solutions are always available upon request.

Stock availability: Immediately available from stock for quick delivery.

Flexible lengths: Other lengths can be delivered at short notice.
