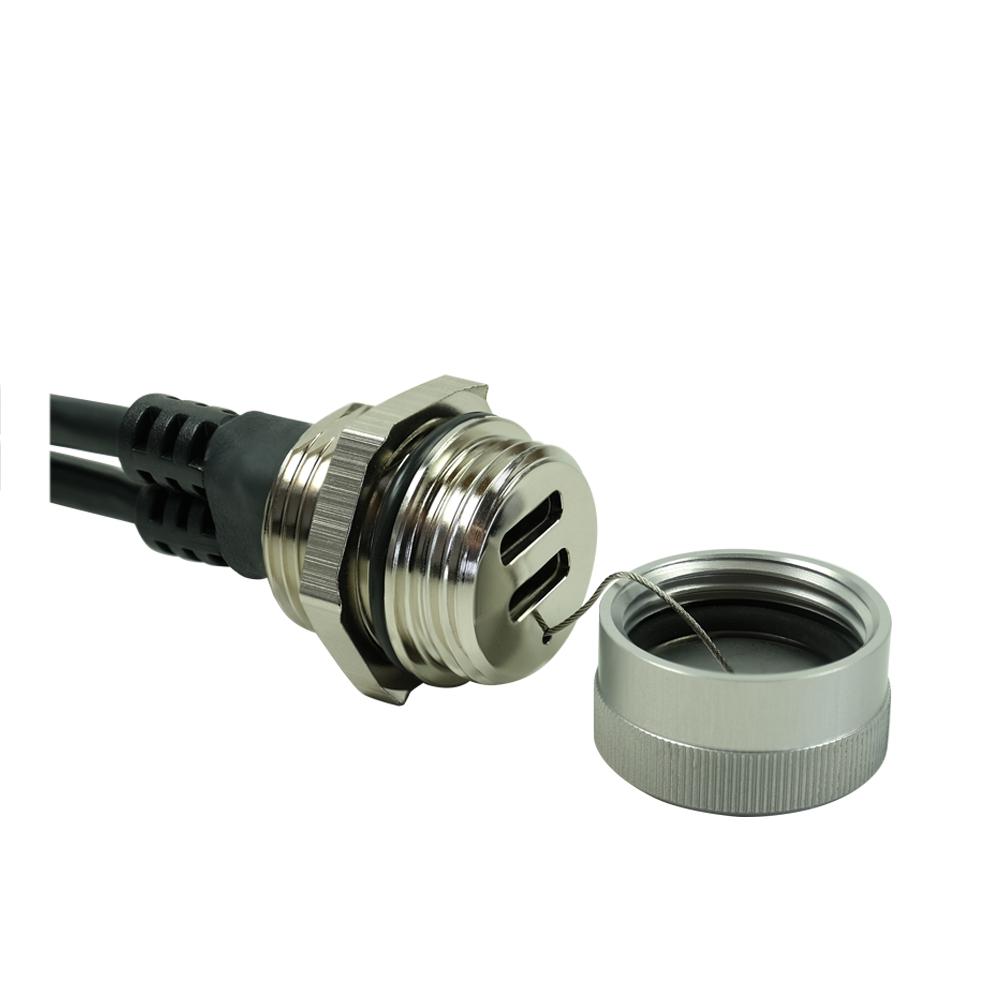

Back to overview New IP67 Dualport USB 3.1 | M20 KAB-IP67-VM-USB-USB-C-DUAL-UNV-0500RK-M20 Discover our rugged and reliable USB 3.1 Dualport cable with IP67 protection rating and M20 thread for demanding applications. This cable features 2 USB Type-C female connectors with USB 3.1 support on one end and 2 USB Type-C male connectors also providing USB 3.1 connectivity on the other end. It comes equipped with a high-quality RK USB3.1 round cable with an outer diameter of approximately 4.5 mm in black, measuring 500 mm in length, resulting in a total length of 580 mm. The IP67-certified socket is equipped with a screw-on cap and an internal rubber seal, making it dust and waterproof. The cap is securely attached with an internal safety wire to prevent loss. A self-locking nut is included, supporting housing thicknesses of up to 8 mm.

Side 1: 2 x USB Type C female USB 3.1

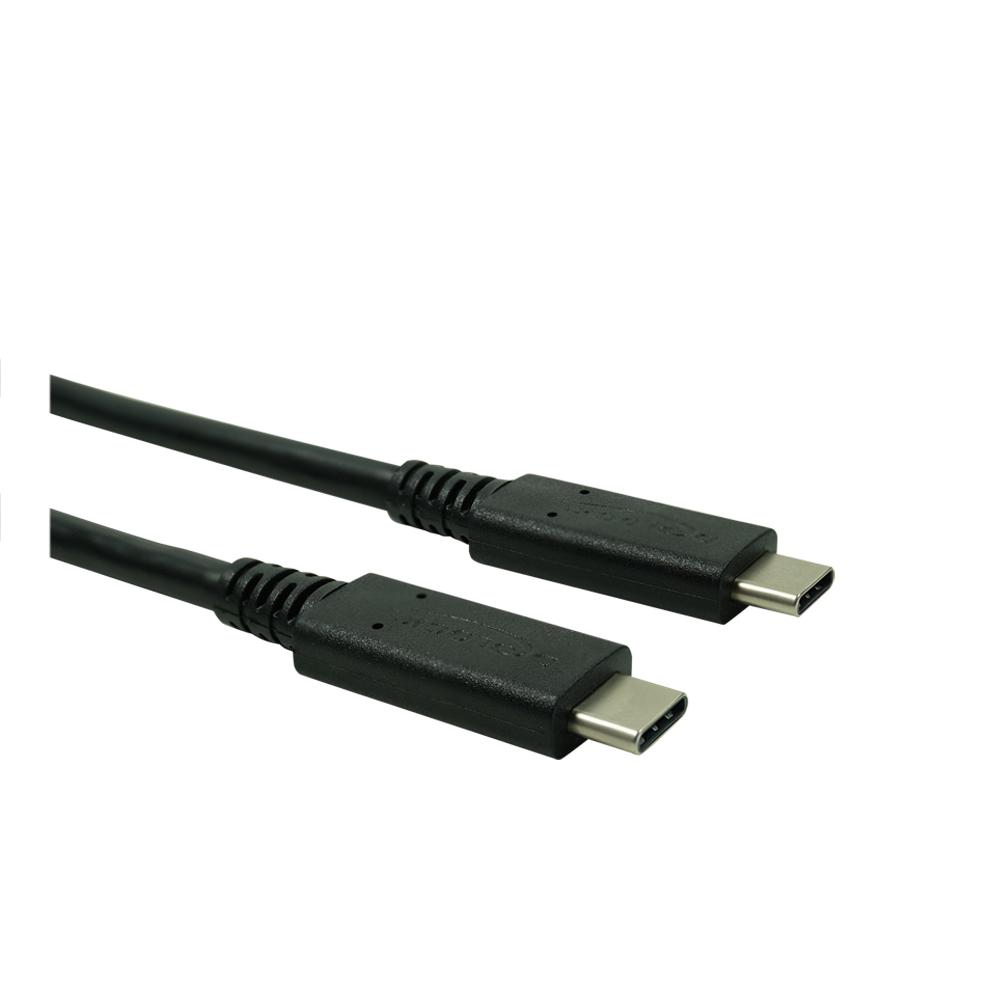

Side 2: 2 x USB Type C male USB 3.1

Round cable: USB3.1, outer diameter approximately 4.5 mm, Black

Length: 500 mm, Total length: 580 mm

Included: Nut and seal for installation

Special feature: Cap with safety wire - non-removable

Additional IP67 solutions are available and can be customized. Speak with us about the specific requirements of your application or learn more about the different IP protection classes . We are happy to provide you with a personalized quote. Find additional accessories in the IP67 Accessories category .
