KAB-IP67-VM-MICRO-B-F-MICRO-B-M-0100RK-M12
Technical drawing
KAB-IP67-VM-MICRO-B-F-MICRO-B-M-0100RK-M12

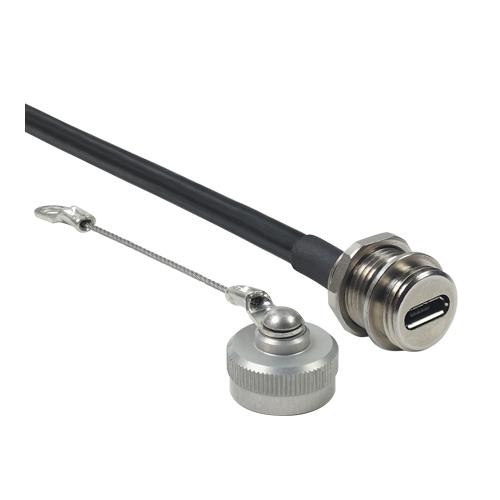

Technical drawing We are very proud of our new IP67-baby! It is small but powerful! We offer the small Mirco USB panel socket in a nickel-plated brass version. Also included are a dust cap with wire loop that protects the adapter from dust and dirt, and a nut that firmly mounts the socket in your device. The adapter, with its high-quality housing, is specifically adjusted to the needs of industrial applications. With its screw-on sealing cap and internal seal, the adapter reaches the IP67 protection class.

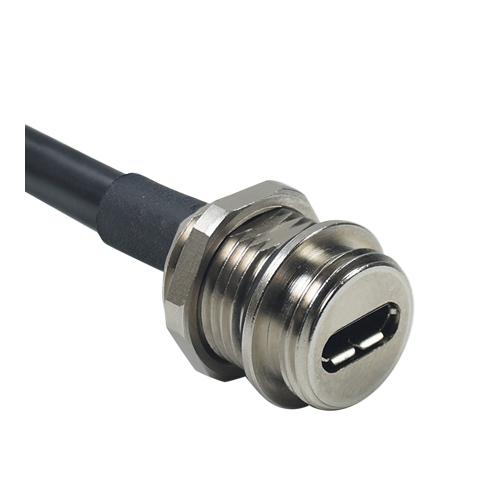

side 1: IP67 USB micro type B, female, fully occupied, nickel-plated brass
side 2: USB micro type B, male, fully occupied
round cable: USB 2.0 cable, black
AWG28, UL2725, 80 °C, 30 V L = 100 mm (inside)
screw connection: nut smooth, M12
protective cap with internal seal and wire loop, aluminium Flexibility in customisation: Connection side 2 can be customised at any time. You have the choice between a variety of connectors, including USB Type A, USB Type B, USB Type C, or even Micro USB plugs. This allows the cable to be tailored to your specific requirements. IP67 accessories can be found here .
