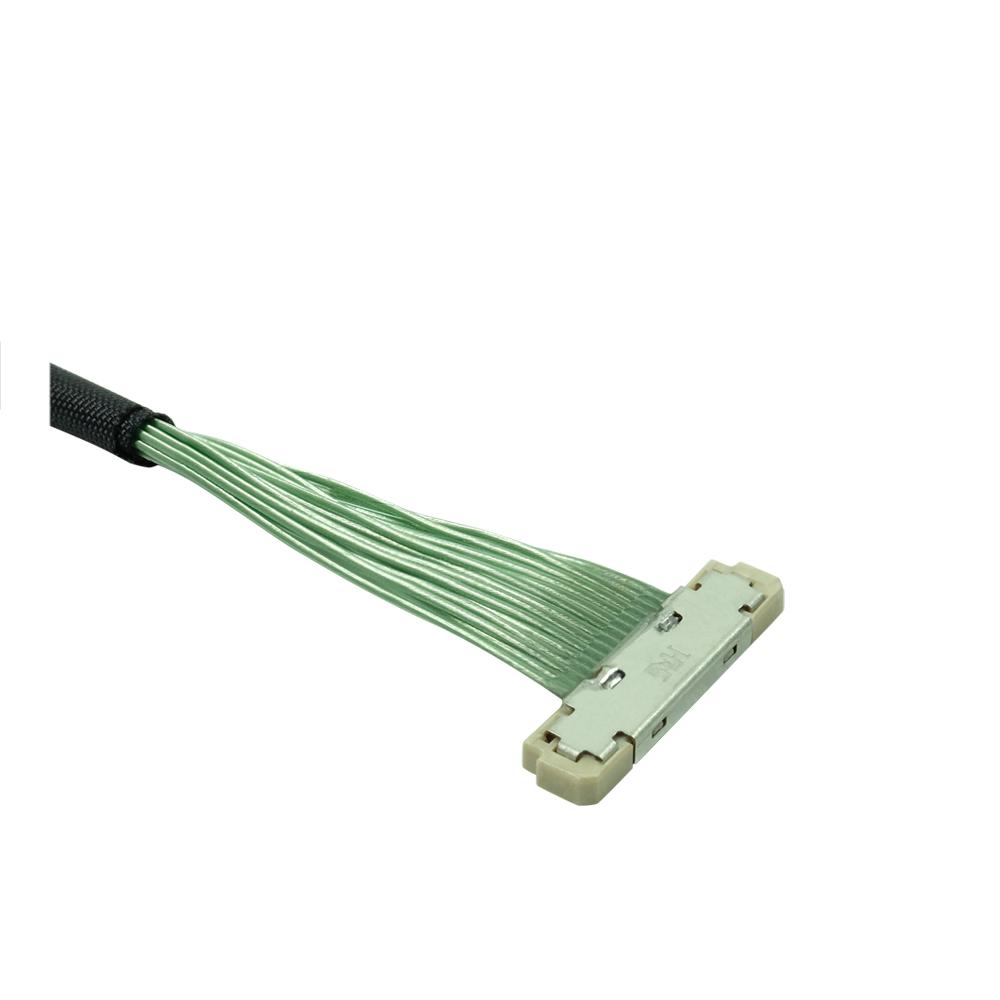

Micro-Coaxial Cable Hirose DF36 | 15 cores KAB-DF36-15P-SD-0100LI-1:1 The customised DF36 micro-coaxial cable impresses with its compact design, high signal quality and reliable connection technology. Equipped with a 15-core round micro-coaxial cable AWG42 (length 100 mm, 1:1 pin assignment) and Hirose DF36C-15P-0.4SD connectors on both sides, it is ideal for modern high-speed applications with limited installation space. DF36 Micro-Coaxial Cable with 0.4 mm Pitch for Compact Electronics This cable is based on the proven Hirose DF36 series with a fine pitch of just 0.4 mm. Its ultra-compact design ensures reliable signal transmission even in applications where space and weight are critical factors.

Side 1: Hirose DF36C-15P-0.4SD, pitch = 0.40 mm

Side 2: Hirose DF36C-15P-0.4SD, pitch = 0.40 mm

Cable: 15-core round micro-coaxial cable, AWG42

Length: 100 mm

Pin assignment: 1:1

Standards: RoHS2-compliant

EMC Protection, Secure Locking, Durable Contacts This DF36 micro-coaxial cable has been developed especially for compact electronic systems. Precision manufacturing ensures stable high-frequency transmission, minimal signal loss and seamless integration into your assemblies. Thanks to robust connectors, the cable is also suitable for environments exposed to vibration. Your Benefits: Space-saving design with only 0.4 mm pitch Secure locking mechanism for vibration-proof connections Multi-point shielding for reliable EMC protection Gold-plated contacts for long service life RoHS2-compliant & halogen-free for sustainable applications Typical Applications: Drones & UAVs Camera modules & displays Medical devices & ultrasound equipment Security systems & laptops Industrial & measurement technology Whether for signal transmission, data communication or image processing, this customised DF36 micro-coaxial cable delivers the perfect combination of compactness, performance and reliability. Contact us for custom lengths or special configurations.
