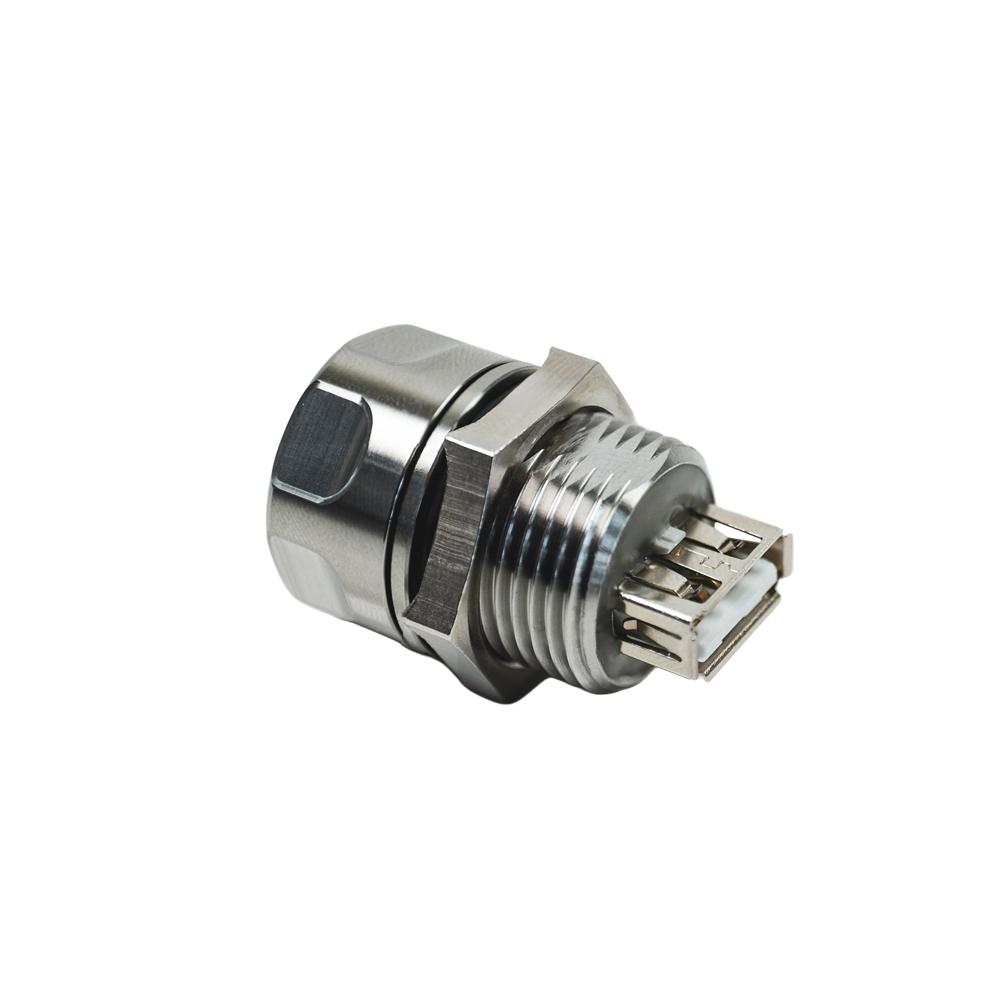

Back to overview New USB Type-A M20 through connector with IP67 protection STE-IP67-V2-USB-A-F-PANEL-M20-UNV This robust USB 2.0 Type-A through-panel connector (female/female) has been specifically designed for use in demanding environments. A USB 2.0 Type-A female interface is provided on both sides, allowing for straightforward and secure panel integration. Thanks to the screw-on protective cap with integrated sealing gaskets, the connector is reliably protected against dust and water and fully complies with the IP67 protection rating. The cap is secured to the connector by an internal retaining wire, preventing loss. A self-locking nut is included to ensure a secure and stable installation in panels with a thickness of up to 8 mm. The IP67 panel connector supports data transfer rates of up to 480 Mbit/s (60 MB/s) and is ideally suited for applications subject to increased mechanical and environmental stress, particularly in medical technology and industrial environments.

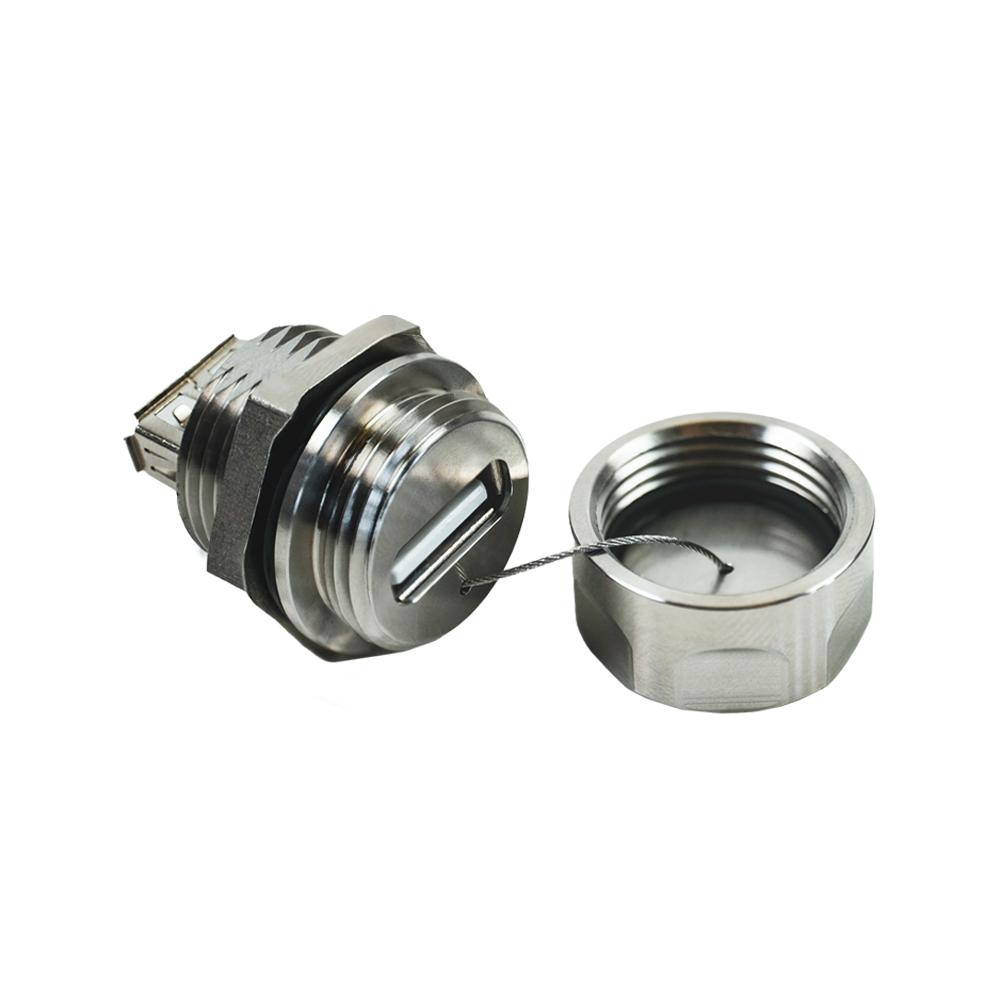

side 1: USB 2.0 type A, female; incl. screwable cap with safety wire rope

side 2: USB 2.0 type A, female

thread: for front M20, for hole M20 x 1.5 mm

L = 38.5 mm

socket material: stainless steel 1.4301

housing material: solid metal

cap material: stainless steel, hygienic grade 1.4301

incl. seals and self-locking nut

front panel thickness: up to 8 mm

weight: 76.5 g
