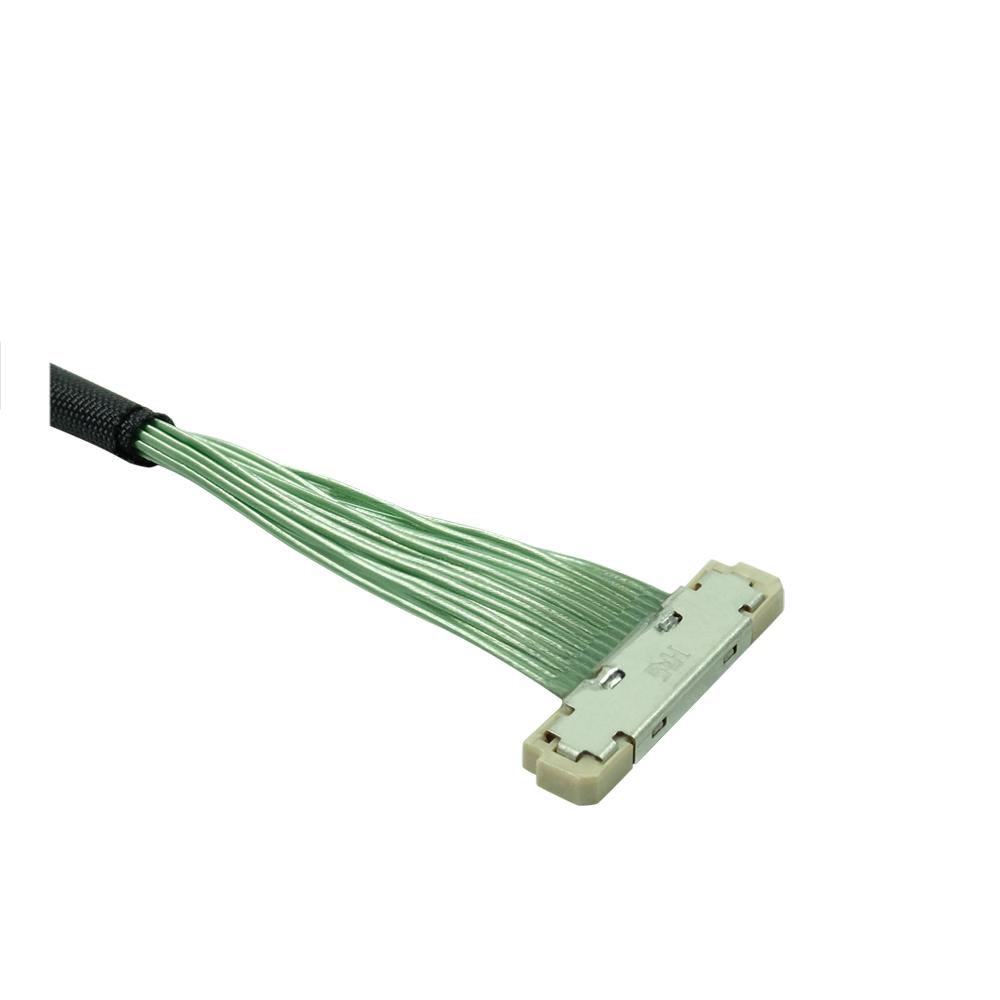

Back to overview New Micro-Coaxial Cable Hirose DF36 | 30 cores KAB-DF36-30P-DF36-30P-0152-1:30-ROUND The customised DF36 micro coaxial cable combines an ultra-compact design with high signal integrity and reliable connection technology. It features a 30-core round bundled micro coaxial cable (AWG42, pin assignment 1:30) and is equipped with Hirose DF36C-30P-0.4SD connectors on both ends. This makes it ideally suited for modern high-speed applications where installation space is limited. DF36 Micro Coaxial Cable with 0,4 mm Pitch for Compact Electronics This cable is based on the proven Hirose DF36 series with an extremely fine 0.4 mm pitch. Its compact design enables secure and stable signal transmission in applications where space and weight are critical factors. Technical Data:

Side 1: Hirose DF36C-30P-0,4SD, pitch = 0,40 mm

Side 2: Hirose DF36C-30P-0,4SD, pitch = 0,40 mm

Cable: 30-core round micro coaxial cable, AWG42

Pin assignment 1:30 RoHS2 compliant EMC protection, secure locking mechanism, durable contacts This DF36 micro coaxial cable has been specifically developed for compact electronic systems. Precision manufacturing ensures stable high-frequency transmission with minimal signal loss and straightforward integration into your assemblies. Thanks to the robust connector design, the cable is also suitable for environments exposed to vibration. Your Benefits: Space-saving design with only 0.4 mm pitch Secure locking mechanism for vibration-resistant connections Multi-point shielding for reliable EMC protection Gold-plated contacts for extended service life RoHS2 compliant & halogen-free for sustainable applications Typical Applications: Drones & UAVs Camera modules & displays Medical technology & ultrasound devices Security systems & laptops Industrial and measurement technology
