KAB-SHLP-10-0500LI

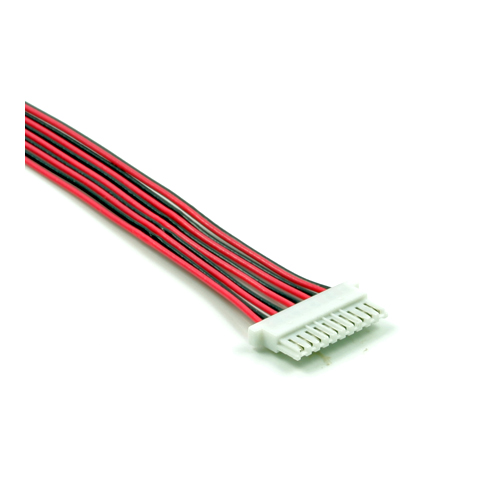

This wiring harness allows a quick and easy connection between a LED-display inverter with a connector of the JST SHLP series and any other graphic board connector. We supply a 10-pin connector SHLP-10V-S-B assembled with 10 strands and a socket housing. The second side of the cable is unprocessed. This cable is particularly suited for samples and small series.

side 1: 10 pin JST SHLP-10V-S-B, R = 1.00 mm with crimpcontact SSHL-003T-P0.2

side 2: unprocessed

AWG28

L= 500mm strands color black UL iQ™1571

operating temperature: -20 °C to 85 °C

weight: 5.5 g

Key Features

• available ex stock
• customer specific assembly
• deliverable in dirfferent lenghts
• This cable fits for the following headers:
• SM10B-SHLS-TF(LF)(SN) (JST), P24021P10 (STM), H113K-D10N-01 / Crimpkontakt M001N-X10N-00R (Entery)
• It supports the following displays/inverter:
• T-55519D150J-LW-A-AAN, AA150XT01, T-55534D150J-LW-A-AAN, , NL12880BC20-07F, NL12876BC26-32D, LQ156M3LW01, LQ185M3LW01, G156HTN02.0, LQ201U1LW31, LQ201U1LW32, G170ETN02.0, LQ190E1LW72, LQ190E1LX75, LQ190N1LW01, G121EAN01.3, LQ156M1LG21, NL13676BC25-03F, NL13676BC25-07F, NL13676BC25-03F, TX31D207VM0BAA, P1040XGF1MA00, TX27D201VM0AAA, P1210XGF1MB00, OT070ZGWDLV00 , P1210XGF1MA01
