KAB-FX15S-NNP-C-0500RK

: FX15 series Wire colour code

The item number is composed as follows: this cable will be supplied unplugged including a connector housing Normal 0 21 false false false DE X-NONE X-NONE

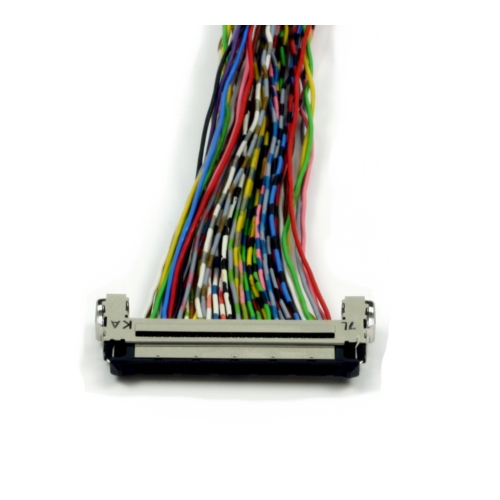

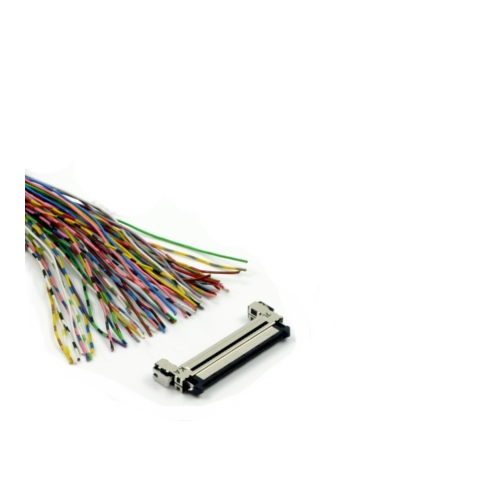

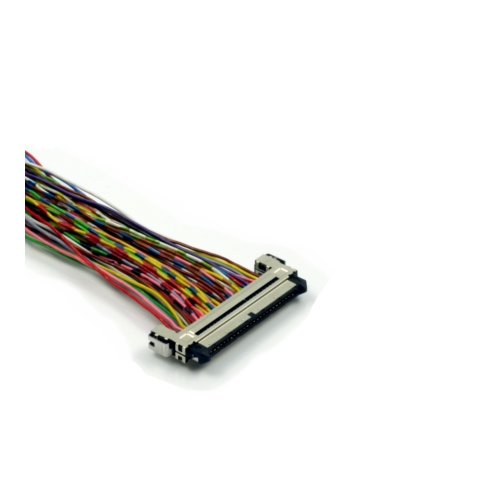

This wiring harness is designed for a quick and easy connection between a display or another equipment with a connector of the HIROSE FX15 series and a graphics board. We supply a twisted pair of round cable with assembled crimp contacts and a suitable lockable connector housing. The second side is unprocessed - just cut off. Thus you will be enabled to assemble the connector according to your cable layouts to achieve an optimal function and allocation of the pairs to the signal structures. This cable is suited for samples and very small series. Pros: lockable samples available within 1 week individual assembling possible different lenghts available on short notice shielded with Twisted Pair suitable for LVDS and DVI this cable will be delivered unplugged and with enclosed connector housing The item number is composed as follows:

KAB-FX15S-NNP-LLLLRK

KAB -> cable assembling FX15S -> connector series NN -> pin number, e.g. 51 pins XXXX -> Length, e.g. 0500 = 500 mm, 0750 = 750 mm RK -> shielded round cable, LI -> single strand unshielded The following socket housings can be used:

FX15S-21P-C

FX15S-31P-C

FX15S-41P-C

FX15S-51P-C

This cable is suited for the following pin headers: FX15S-21S-0.5SH FX15S-31S-0.5SH FX15S-41S-0.5SH FX15S-51S-0.5SH The following crimp contacts can be applied: FX15-3032-PCFA, FX15-3032-PCFB, FX15-2830PCFB The following displays or devices will be supported: Kyocera LED Printheads, TB-OP-LVDS, G213QAN01.0
