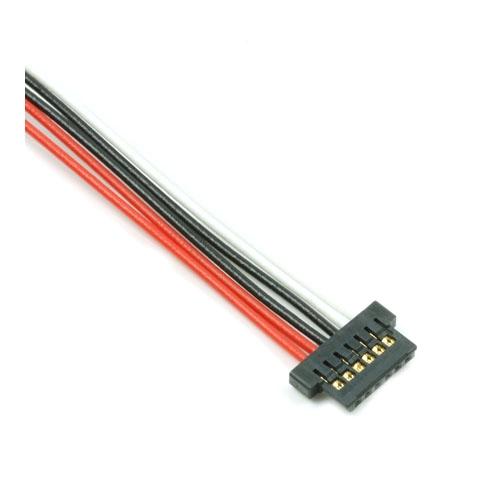

KAB-FI-S06S-0500LI

This wiring harness allows a quick and easy connection between a LED-backlight with a connector of the FI-S series and any graphic board connector. We supply single strands with 6 assembled electric contacts and a fitted housing, the second side of the cable is unprocessed. The strands are assembled to allow immediate application. This cable is particularly suitable for samples and small series.

Key Features

• available ex stock
• customer specific assembly
• deliverable in different lengths
• This cable fits for the following headers:
• FI-S6P-HFE
• FI-S6P-HFE-E1500
• FI-S6P-HFE-T-E1500
• It supports the following displays:
• T-55592D121J-LW-A-AAN, T-55618D090J-LW-A-AAN, AA080MB01, AA121TD01, NL8048AC19-13, NL8048AC19-14F, AA070ME01-DA1, AA090TB01-DA2, TM070JVHG33, NL12880AC20-20D, NL12880AC20-14D, NL12880AC20, TM070JDHG34-00, LQ123K3LG01, AA070TA01ADA11, ETML1010G1DKA, ETML1210G0DRA,  TM101JDHG32-00, TM101JDHG32-01, TM101JVHG32-01, TX20D208VM0BAA, TX18D216VM0BAA ,  DD-0700-ME01, DD-0700-MC01, DD-0700-ME11, DD-0840-XE01, DD-0840-XE11, P0800WVF1MA00, COM121H9M21SSS, COM121H9M18SSS
• Also in 5-pin version available and supports the following display:
• CLAA150XQ01CWV0.9, AA104SJ02

Product Notes

Side 1: FI-S6S, pitch = 1,25 mm

Side 2: unprocessed

Strand: black+white+red 2x per color, AWG28, UL1061, lenght 500 mm

operating temperature: -20 °C to 85 °C

weight: 7.1 g
