Wire colour code

KAB-SET-FI-S20S-2002-XX-0500RK

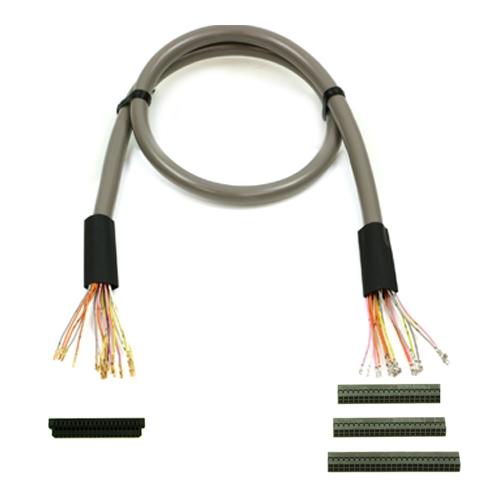

Wire colour code This cable set allows a quick and easy connection between a display with STM connector STE-FI-S20S (compatible with JAE FI-S20S series) and any graphics board connectors (2-rowed with pitch = 2 mm). We supply a 20-pin round cable with a STM connector FI-S20S (compatible with JAE FI-S20S series) on side 1. 3 STM connectors STE-2002-2X20P, 2002-2X22P and STE-2002-2X25P for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: connectors FI-S20S

side 2: connectors 2002-2X20P, 2002-2X22P and 2002-2X25P, R = 2.00 mm

DCY, 10 x 2 x AWG28

UL2560

l = 500 mm

weight: 32.07 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable is compatible with socket:
• I-PEX 20199-020
• This cable fits to the following pin headers:
• 76B20-0048RA-G4, FI-SEB20P-HFE, FI-SEB20P-HF13E, FI-SEB20P-HF13RE, FI-SEB20P-HF10E, FI-SEB20P-HF16RE, FI-SEB20P-HF13E-E1500, TU1213HNO-20, TU1213WNR-20S
• The following displays will be supported:
• AT104SN01, AA104SG01, AA121XH03, AA121XH05, AA142XC11, LP141XA, LQ121S1LG41, LQ121S1LG61, LQ121S1LW01, LQ121S7LY01, LTN141P4, NL10276BC12-02, NL10276BC13-01C, NL10276BC16-01, NL10276BC20-04, NL10276BC20-07, NL10276BC24-13, NL10276BC24-13C, NL10276BC30-10, NL10276BC30-24D, NL6448BC20-21C, Nl6448bc-20-21d, NL6448BC20-21D, NL6448BC26-08D, NL6448BC33-63C, NL6448BC33-63D, NL8048BC19-02, NL8048BC24-01, NL8048BC24-04, NL8060B31-28D, NL8060BC21-02, NL8060BC21-03, NL8060BC21-04, NL8060BC26-30C, NL8060BC26-30D, NL8060BC31-41C, NL8060BC31-41D, T-51756D121J-FW-A-AA, T-51866D121J-FW-A-AA, T-51944D104J-FW-A-AA, T-52017D121J-FW-A-AA, T-52017D121J-FW-A-ABN, T-55105D121J-FW-A-AAN, T-55105D121J-FW-A-ABN, TX31D56VM2AAA, TX38D55VM1AAA, TX39D55VM1BAA, LQ104S1LG61, LQ084S3LG01, LQ104S1LG21, LQ104S1LG31, LQ121S1LG41, LQ121S1LG61, SP0835E, NL6448BC26-15, G070Y2-L01, G121X1-L03, T-55466D084J-LW-A-AAN, NL8060BC21-11C, LQ121S1LG62, PD080SL2, TX23D38VM0CAA, G070Y2-L01, LQ121S1LG81, AA084XB11, NL6448BC33-71D, AA090MF11_02_00, TX18D200VM0EAA, THC63LVD823B, AA084SD11-CA-01, AA104XF12-DE-02, TCG104VGLP*ANN-AN*25, TCG104VGLP-ANN-AN-25, TX31D45VM, AA104VJ12, NL8048AC19-14F, NL8048AC19-13, AA070ME01-DA1, TX18D200VM0eAA, TX18D204VM0BAA, AA090TB01-DA2, NL12880AC20-20D, NL12880AC20-14D, NL12880AC20, TM070JDHG34-00, G121EAN01.3, OT121ZSDDLN-00, LQ121S1LG84, LQ121S1LG86, LQ121S1LG88, AM-1024768ZTZQW-00H, CLAA121XA02DW, AA065VE11ADA11, TX38D25VM0CAA, TX38D25VM0CAB, G121AGE-L03, G121S1-L02, G121X1-L04, AM-800600MTMQW-A4H, TX38D25VM0CAA-3, G150XGE-L04, G150XTN03.1, TX26D200VM2BAB, NL10276BC20-18C, TCG121XGLPBPNN-AN40, LQ104V1LG81, TCG121WXLR, NL128102AC26-01, NL6448BC33-71C, TX31D200VM0BAA, TX23D200VM0BPA, AA070TA01ADA11, G121XCE-L02, ETML1010G1DKA, TX26D207VM0AAA, TX20D200VM2BAB, TX26D200VM5BAA, TX20D207VM0AAA, TX23D202VM0BAA, TX23D203VM0BAA, NL6448BC20-30F, NL6448BC20-30D, NL6448BC20-30C, TM070JVHG33-01, NL8048BC19-02C, NL10276BC16-06, NL8048BC24-12, NL8048BC24-09, TM101JDHG32-00, TM101JDHG32-01, NL10276BC20-18F, NL12880BC20-07F, NL8060BC31-51C, TM101JVHG32-01, TX16D207VM0BAA, TX20D208VM0BAA, TX20D208VM0BAB, TX18D211VM0BAA , TX18D212VM0BAA, TCG104VGLACANN, TX26D211VM0BAA, TX26D211VM0BAB, ADB18211, ADB18212, TX31D207VM0BAB, TX31D207VM0BAA, TX20D207VM0AVA,
• P1040XGF1MA00, TX18D216VM0BAA, TX18D216VM0BAB, TX27D201VM0AAB, TX27D201VM0AAA, TX16D207VM0BPA, NL6448AC18-11D, TCG121XGLPAPNN-AN20‎, TCG121XGLPAPNN-AN30, DD-0700-ME01, DD-0700-MC01, DD-0700-ME11, DD-0840-XE01, DD-0840-XE11, P0650VGF1MA00, P0650VGF1MA10, P1210XGF1MB00, TX18D216VM0BAC-2, G121STN02.1, TX27D200VM0AVB, P1210XGF1MA01, P0800WVF1MA00, COM121H9M21SSS, COM121H9M18SSS, P1060WXF1MA00, P0840XGF1MB00, WF0840ASWAMLNB0
• Matching LED backlight cable:
• KAB-SHLP-10-0500LI, KAB-FI-S06S-0500LI
