KAB-SET-FI-S20S-DF14-XXS-0500RK

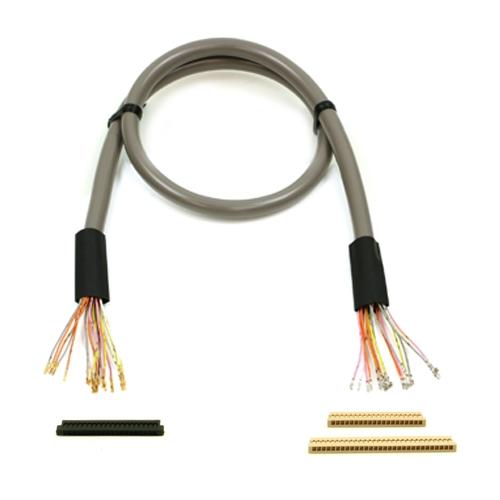

Wire colour code This cable set allows a quick and easy connection between a display with a JAE connector FI-S20S and any graphics board connector of the Hirose series DF14, 20- or 30-pin. We supply a 20-pin round cable with a JAE connector FI-S20S on side 1. Two Hirose connectors DF14-20S-1.25C, DF14-30S-1.25C for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: FI-S20S

side 2: DF14-20S-1.25C, DF14-30S-1.25C

both sides unplugged, 20-pin, highly flexible round cable, twin stranded, UL2560, AWG28, shielded, l = 500 mm

weight: 32.06 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable is compatible with socket:
• I-PEX 20199-020
• This cable fits to the following pin headers:
• DF14-20P-1.25H, MSB240420, MSB240420-E, P240420, GT123-20P-H16, GT123-20S-CS, 3804-F20N-06R, CWY20G-A0D1T, FI-SE20P-HFE, FI-SEB20P-HF13E, FI-SEB20P-HF13RE, FI-SEB20P-HF10E, FI-SEB20P-HF16RE, 20186-020E-11F, 20197-*20U-F, FI-SEB20P-HF13E-E1500, 3804K-F20N-10L, TU1213HNO-20, TU1213WNR-20S, CID520D, MSB240420HE (STM)
• Crimpcontacts:
• FI-C3-A1-15000, DF14-2628SC
• The following displays will be supported:
• AT104SN01, AA150XN01, AA150XN02, G150XG01, G150XG02, G150XG03, LB150X02, LB150X06, LC150X01, LC150X01-A3, LC150X01-SL01, LC150X02, LC150X02-A4, LC150X02-TL01, LC151X01-C3, LC171W03, LC171W03-A4, LC171W03-C4, LC230W01, LC230W01-A2, LC260W01, LC260W01-A5K1, LM150X08, LQ150X1LG45, LQ150X1LG55, LQ150X1LGB1, LQ150X1LGN2, LQ150X1LGN2A, LQ150X1LGN2E, LQ150X1LW71N, LQ150X1LW72, LTM150XH, LTM150XH-L01, LTM150XO-L01, M150XN07, M170XW01, NL10276BC30-17, NL10276BC30-18, NL10276BC30-18C, NL10276BC30-32D, NL10276BC30-33D, NL128102AC31-02, NL12876BC26-25, T140VN01, T201VN02V0, T-51863D150J-FW-A-AA, T-51863D150J-FW-A-AB, T-51863D150J-FW-A-AD, T-51863D150J-FW-A-AE, G150X1, G121SN01, G121SN01V1, G121SN01V2, G121SN01V3, G150XG03V2, G121SN01V4, NL10276BC30-33D, LQ150X1LW71N, LQ150X1LG82, G150XG02V1, T-55519D150J-LW-A-AAN, G121SN01-V4, NL10276BC30-34D, HT15X15, G121NX01, G150XG01 V3, LQ150X1LG91, AA084XB11, NL6448BC33-71D, AA090MF11_02_00, AA084SD11-CA-01, AA104XF12-DE-02, G150XTN05.1, CLAA150XP01Q, CLAA150XP07FQ, CLAA150XP07Q, AC150XA01, AC150XP01, CLAA150XP04, CLAA150XP01PQ, CLAA150XP01PE, LQ150X1LG76, CLAA150XP06 CW, CLAA150XP07 CW, CLAA150XP07Q, CLAA150XP07FQ, G150XG03 V0, G150XG03 V1, M150EW02 V0, M150XN07 V2, M150XN07 V3, TCG104VGLP*ANN-AN*25, TCG104VGLP-ANN-AN-25, TX31D45VM, MI700J1T-2, AA104VJ12, NL8060BC21-11F, NL8048AC19-14F, NL8048AC19-13, AA070ME01-DA1, TX18D200VM0eAA, G150XNE-L01, G150XNE-L03, TX18D204VM0BAA, AA090TB01-DA2, NL12880AC20-20D, NL12880AC20-14D, NL12880AC20, T150NB02D01, TM070JDHG34-00, G121EAN01.3, OT121ZSDDLN-00, LQ121S1LG84, LQ121S1LG86, LQ121S1LG88, AM-1024768ZTZQW-00H, CLAA121XA02DW, AA065VE11ADA11, TX38D25VM0CAA, TX38D25VM0CAB, G121XN01 V001, G121AGE-L03, G121S1-L02, G121X1-L04, G121XN01 V0, AM-800600MTMQW-A4H, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, TM150TDSG71, NL10276AC30-52C, NL13676BC25-07F, G150XGE-L06, LQ150X1LW12, TM121SDS01, TM121TDSG02, G150XGE-L04, PH102768T-001, G150XGE-L07, NL10276AC30-48D, G150XTN03.0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, TX38D25VM0CAA-3, G150XGE-L04, G150XTN03.1, TX26D200VM2BAB, NL10276BC20-18C, TCG121XGLPBPNN-AN40, LQ104V1LG81, TCG121WXLR, NL128102AC26-01, NL6448BC33-71C, TX31D200VM0BAA, TX23D200VM0BPA, AA070TA01ADA11, G150XAN02.1, HM150X01-N01, G121XCE-L02, ETML1010G1DKA, TX26D207VM0AAA, TX20D200VM2BAB, TX26D200VM5BAA, TX20D207VM0AAA, TX23D202VM0BAA, TX23D203VM0BAA, NL6448BC20-30F, NL6448BC20-30D, NL6448BC20-30C, TM070JVHG33-01, NL8048BC19-02C, NL10276BC16-06, NL8048BC24-12, NL8048BC24-09, TM101JDHG32-00, TM101JDHG32-01, NL10276BC20-18F, NL12880BC20-07F, NL8060BC31-51C, NLB121SV01L-01, NLB121XG01L-01, NL10276BC30-39, NLB150XG01L-01, TM101JVHG32-01, TX16D207VM0BAA, TX20D208VM0BAA, TX20D208VM0BAB, TX18D211VM0BAA , TX18D212VM0BAA, G150XAN01.0, TCG104VGLACANN, TX26D211VM0BAA, TX26D211VM0BAB, ADB18211, ADB18212, IDK-1115P-40XGC1E, TX31D207VM0BAB, TX31D207VM0BAA, TX20D207VM0AVA, P1040XGF1MA00, TX18D216VM0BAA, TX18D216VM0BAB, TX27D201VM0AAB, TX27D201VM0AAA, TX16D207VM0BPA, NL6448AC18-11D, TCG121XGLPAPNN-AN20‎, TCG121XGLPAPNN-AN30, DD-0700-ME01, DD-0700-MC01, DD-0700-ME11, DD-0840-XE01, DD-0840-XE11, P0650VGF1MA00, P0650VGF1MA10, P1210XGF1MB00, TX18D216VM0BAC-2, G121STN02.1, TX27D200VM0AVB, P1210XGF1MA01, P0800WVF1MA00, COM121H9M21SSS, COM121H9M18SSS, LQ064X3LW02, PH102600T003-IBA, P1500XGF2MA00, P1060WXF1MA00, P0840XGF1MB00, WF0840ASWAMLNB0
• This cable fits for the following board:
• PICO-BT01
• Matching LED backlight cable:
• KAB-SHLP-10-0500LI, KAB-FI-S06S-0500LI, KAB-SHLP-06-0500LI
