KAB-FI-S20S-0500RK

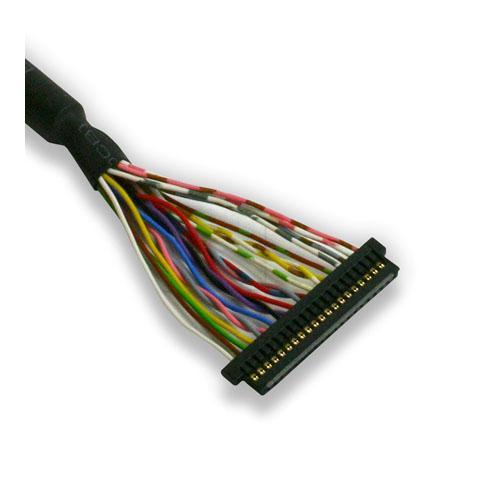

Wire colour code This wiring harness offers you the possibility to establish a connection between a display with a connector of the JAE FI-S series and a graphics board easily and quickly. You get delivered a Twisted Pair roundcable with 20 assembled crimp contacts and the suitable connector housing. The second side is unfinished - just cut off. You are able to assemble the connector considering to your cable plan to get an optimal function and allocation of pairs to achieve the signal structures. This cable suits for samples and smallest series very good.

Key Features

• ex stock availability
• individual assembling possible
• different lengths available on short call
• shielded
• with Twisted Pair
• adapted for LVDS and DVI

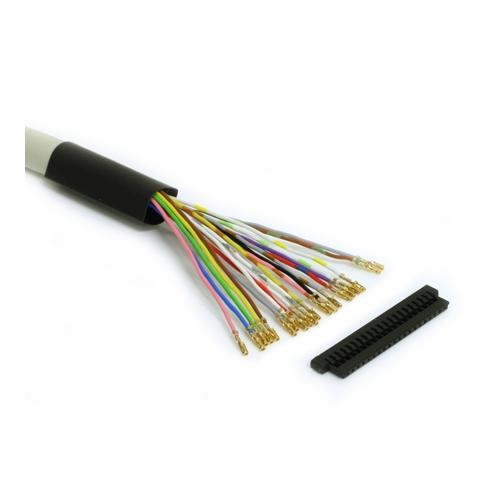

• this cable will be delivered unstucked with connector housing added (see fig. 3 and 4)
• 20 pin roundcable, twisted pair, AWG28, shielded, l = 500 mm
• UL2560
• This cable is compatible with socket:
• I-PEX 20199-020
• This cable fits to the following pin headers:
• 076B20-0048RA-G4 , FI-SEB20P-HFE , FI-SEB20P-HF13E , FI-SEB20P-HF13RE , FI-SEB20P-HF10E , FI-SEB20P-HF16RE , 20186-020E-11F (I-PEX), 20197-*20U-F (I-PEX), FI-SEB20P-HF13E-E1500, TU1213HNO-20, TU1213WNR-20S
• The following displays will be supported:
• AT104SN01, AA104SG01, AA106TA01, AA121XH03, AA121XH05, AA142XC11, LP141XA, LQ121S1LG41, LQ121S1LG61, LQ121S1LW01, LQ121S7LY01, LTN141P4, NL8060BC21-11F, NL10276BC12-02, NL10276BC13-01C, NL10276BC16-01, NL10276BC20-04, NL10276BC20-07, NL10276BC24-13, NL10276BC24-13C, NL10276BC30-10, NL10276BC30-24D, NL6448BC20-21C, Nl6448bc-20-21d, NL6448BC20-21D, NL6448BC26-08D, NL6448BC33-63C, NL6448BC33-63D, NL8048BC19-02, NL8048BC24-01, NL8048BC24-04, NL8060B31-28D, NL8060BC21-02, NL8060BC21-03, NL8060BC21-04, NL8060BC26-30C, NL8060BC26-30D, NL8060BC31-41C, NL8060BC31-41D, T-51756D121J-FW-A-AA, T-51866D121J-FW-A-AA, T-51944D104J-FW-A-AA, T-52017D121J-FW-A-AA, T-52017D121J-FW-A-ABN, T-55105D121J-FW-A-AAN, T-55105D121J-FW-A-ABN, TX31D56VM2AAA, TX38D55VM1AAA, TX39D55VM1BAA, LQ104S1LG61, LQ084S3LG01, LQ104S1LG21, LQ104S1LG31, LQ121S1LG41, LQ121S1LG61, SP0835E, NL6448BC26-15, G070Y2-L01, G121X1-L03, T-55466D084J-LW-A-AAN, NL8060BC21-11C, LQ121S1LG62, PD080SL2, TX23D38VM0CAA, G070Y2-L01, LQ121S1LG81, T-55694D106J-LW-A-AAN, NL10276BC20-18, AA121SM02, NL8060BC26-35D, TX26D12VM0AAA, AA080MB01, AA084XB11, AA121TD01, NL6448BC33-71D, AA090MF11_02_00, TX18D200VM0EAA, THC63LVD823B, NL8048AC19-13, AA104XF12-DE-02, AM-1024768GTMQW-T00H, NL10276BC24-21, TCG104VGLP*ANN-AN*25, TCG104VGLP-ANN-AN-25, TX31D45VM, AA104VJ12, NL8048AC19-14F, NL8048AC19-13, AA070ME01-DA1, TX18D204VM0BAA, TX18D200VM0eAA, AA090TB01-DA2, TM070JVHG33, TCG104XGLPAPNN-AN4, NL12880AC20-20D, NL12880AC20-14D, NL12880AC20, G121EAN01.3, OT121ZSDDLN-00, LQ121S1LG84, LQ121S1LG86, LQ121S1LG88, AM-1024768ZTZQW-00H, CLAA121XA02DW, AA065VE11ADA11, TX38D25VM0CAA, TX38D25VM0CAB, G121AGE-L03, G121S1-L02, G121X1-L04, AM-800600MTMQW-A4H, TX38D25VM0CAA-3, G150XGE-L04, G150XTN03.1, TX26D200VM2BAB, NL10276BC20-18C, TCG121XGLPBPNN-AN40, LQ104V1LG81, TCG121WXLR, NL128102AC26-01, NL6448BC33-71C, TX31D200VM0BAA, TX23D200VM0BPA, AA070TA01ADA11, G121XCE-L02, ETML1010G1DKA, TX26D207VM0AAA, TX20D200VM2BAB, TX26D200VM5BAA, TX20D207VM0AAA, TX23D202VM0BAA, TX23D203VM0BAA, NL6448BC20-30F, NL6448BC20-30D, NL6448BC20-30C, TM070JVHG33-01, NL8048BC19-02C, NL10276BC16-06, NL8048BC24-12, NL8048BC24-09, TM101JDHG32-00, TM101JDHG32-01, NL10276BC20-18F, NL12880BC20-07F, NL8060BC31-51C, TX16D207VM0BAA, TX20D208VM0BAA, TX20D208VM0BAB, TX18D211VM0BAA , TX18D212VM0BAA, TCG104VGLACANN, TX26D211VM0BAA, TX26D211VM0BAB, ADB18211, ADB18212, TX31D207VM0BAB, TX31D207VM0BAA, TX20D207VM0AVA, P1040XGF1MA00, TX18D216VM0BAA, TX18D216VM0BAB, TX27D201VM0AAB, TX27D201VM0AAA, TX16D207VM0BPA, NL6448AC18-11D, TCG121XGLPAPNN-AN20‎, TCG121XGLPAPNN-AN30, DD-0700-ME01, DD-0700-MC01, DD-0700-ME11, DD-0840-XE01, DD-0840-XE11, P0650VGF1MA00, P0650VGF1MA10, P1210XGF1MB00, TX18D216VM0BAC-2, G121STN02.1,TX27D200VM0AVB, P1210XGF1MA01, P0800WVF1MA00, COM121H9M21SSS, COM121H9M18SSS, P1060WXF1MA00, P0840XGF1MB00, WF0840ASWAMLNB0
• Matching LED backlight cable:
• KAB-SHLP-10-0500LI, KAB-FI-S06S-0500LI

Product Notes

side 1: connector FI-S20S-TW (compatible with JAE) with crimpcontacts FI-C3-A1-15000, unstucked enclose

side 2: unprocessed, just cut off

operating temperature: -20 °C to 85 °C

weight: 29.1 g
