KAB-SET-DF14-20S-ACES-87219-XX00-0500RK

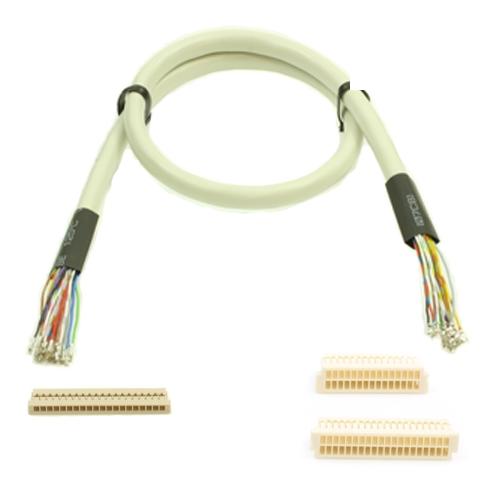

This wiring harness allows a quick and easy connection between a display with ACES connectors of series 87219 with 30 and 40 pins and any other graphic boards connector of the Hirose series DF14 with 20 pins. We supply a round cable, 20-pin with ACES connectors of the serie 87219 with 30 and 40 pins for side 1. For side 2 we deliver a Hirose 20 pin connector DF14-20S-1.25C . The round cable has crimp contacts on both sides and is delivered unplugged. The contacts can be easily assembled in the corresponding housing chambers according to your design to obtain an optimum function and allocation of the pairs to the signal structures. This cable is particularly suited for samples and small series.

side 1: ACES 87219-3000 and 87219-4000 (UL94V-0, compatible with JST-SHDR series)

side 2: Hirose DF14-20S-1.25C

both sides unplugged, 20-pin, high flexible round cable, Ø = 6.2 mm twin stranded, UL2560, AWG28, shielded, length = 500 mm

operating temperature: -20 °C to 85 °C

weight: 30.7 g

Key Features

• samples available from stock
• assembling on both sides according to customers requirements
• available in various lengths
• shielded
• twisted pair
• suitable for LVDS
• this cable is delivered unplugged on both sides with matching housings!
• This cable fits for the following plug connector:
• DF14-20P-1.25H, MSB240420, MSB240420-E, P240420, GT123-20P-H16, GT123-20S-CS, 3804-F20N-06R, CWY20G-A0D1T, H204K-D20N-02B, JCTC 11002H00-2x15P, 11002W00-2x15P, 11002W90-2x15P, 3804K-F20N-10L, CID520D, W100V40TP2, MSB240420HE (STM)
• This cable supports the following displays:
• AA150XN01, AA150XN02, G150XG01, G150XG02, G150XG03, LB150X02, LB150X06, LC150X01, LC150X01-A3, LC150X01-SL01, LC150X02, LC150X02-A4, LC150X02-TL01, LC151X01-C3, LC171W03, LC171W03-A4, LC171W03-C4, LC230W01, LC230W01-A2, LC260W01, LC260W01-A5K1, LM150X08, LQ150X1LG45, LQ150X1LG55, LQ150X1LGB1, LQ150X1LGN2, LQ150X1LGN2A, LQ150X1LGN2E, LQ150X1LW71N, LQ150X1LW72, LTM150XH, LTM150XH-L01, LTM150XO-L01, M150XN07, M170XW01, NL10276BC30-17, NL10276BC30-18, NL10276BC30-18C, NL10276BC30-32D, NL10276BC30-33D, NL128102AC31-02, NL12876BC26-25, T140VN01, T201VN02V0, T-51863D150J-FW-A-AA, T-51863D150J-FW-A-AB, T-51863D150J-FW-A-AD, T-51863D150J-FW-A-AE, G150X1, G121SN01, G121SN01V1, G121SN01V2, G121SN01V3, G150XG03V2, G121SN01V4, NL10276BC30-33D, LQ150X1LW71N, LQ150X1LG82, G150XG02V1, T-55519D150J-LW-A-AAN, G121SN01-V4, NL10276BC30-34D, HT15X15, G121NX01, G150XG01 V3, LQ150X1LG91, NL10276AC-42C, SCF0700720GGU12, FG0700K6DSSWBG01, G150XTN05.1, CLAA150XP01Q, CLAA150XP07FQ, CLAA150XP07Q, AC150XA01, AC150XP01, CLAA150XP04, CLAA150XP01PQ, CLAA150XP01PE, LQ150X1LG76, CLAA150XP06 CW, CLAA150XP07 CW, CLAA150XP07Q, CLAA150XP07FQ, G150XG03 V0, G150XG03 V1, M150EW02 V0, M150XN07 V2, M150XN07 V3, MI700J1T-2, G150XNE-L01, G150XNE-L03, T150NB02D01, OT070KGWDLL, OT070PGDDLT-H0, OT070PGDDLT-H1, OT080FSDDLV-H0, OT090AGDDLT-00, OT101CAWDLT-00, OT101DAWDLV-H0, LQ101K1LY05, OT104ASDDLV-02, G121SN01 V402, G121SN01 V403, G121STN01.0, G121XTN01.0, OT121AXWDLV-H0, LQ121K1LG52, LQ121K1LG53, LQ123K3LG01, G150XAN01.1, G150XTK01.0, G150XTN03.2, G150XTN06.2, G150XTN06.3, G150XTN06.4, G150XTN06.8, G150XTN06.9, OT150CXDDLV-H1, OT150ZXUDLV-00, LQ150X1LW95, LQ150X1LW96, LQ150X1LX95, LQ150X1LX96, LQ150X1LX9A, LQ201U1LW31, LQ201U1LW32, G215HAN01.0, G215HVN01.1, JH215WLPNN, LM215WF3-SLC1, LM215WF3-SLK1, LM215WF3-SLN1, OT215BFWDLV-00, OT215ZFWDBL-00, NL12876BC26-32D, G150XAN01.2, G150XTK02.0, G150XTN06.A, G121XN01 V001, G121XN01 V0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, TM150TDSG71, NL10276AC30-52C, NL13676BC25-07F, G150XGE-L06, LQ150X1LW12, TM121SDS01, TM121TDSG02, G150XGE-L04, PH102768T-001, G150XGE-L07, NL10276AC30-48D, G150XTN03.0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, G150XAN02.1, HM150X01-N01, NLB121SV01L-01, NLB121XG01L-01, NL10276BC30-39, NLB150XG01L-01, G150XAN01.0, IDK-1115P-40XGC1E, LQ064X3LW02, PH102600T003-IBA, P1500XGF2MA00
• This cable fits for the following board:
• PICO-BT01
