KAB-A32-10-A32-10-0100FK
Product Details
: Don Connex A32 series
KAB-A32-10-A32-10-0100FK

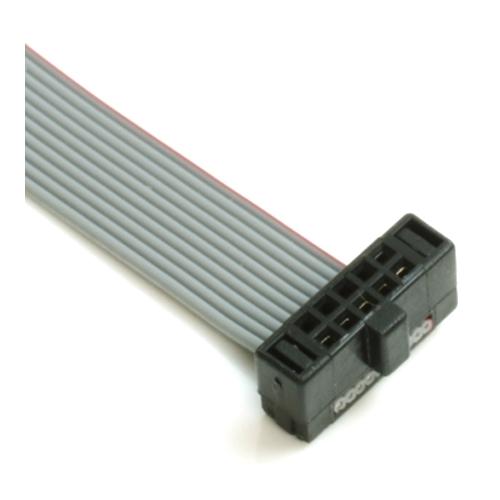

: Don Connex A32 series IDC ribbon cable with Mini-JTAG connector, 10-pin
side 1: A32-10-B-G-1, key outside, pitch 1.27 mm
side 2: A32-10-B-G-1, key inside, pitch 1.27 mm
ribbon cable AWG30, pitch 0.635 mm l = 100 mm 1:1 configuration
