KAB-SET-DF14-20S-2002-XX-0500RK

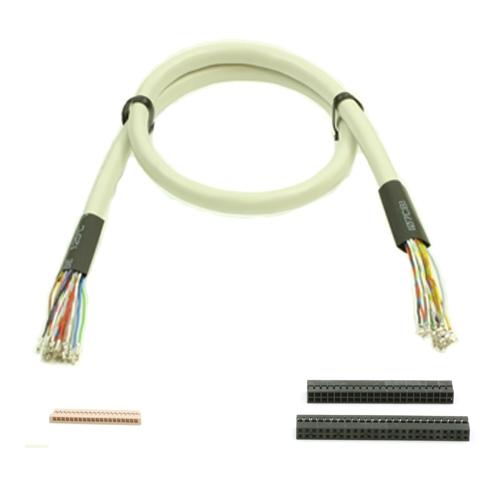

This cable set allows a quick and easy connection between a display with a Hirose connector DF14 and any graphics board connector (2-rowed with pitch = 2 mm). We supply a 26-pin round cable with a Hirose DF14 connector for side 1. For side 2 we supply a STE-2002-2X22P and STE-2022-2X25P connector. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled in the corresponding housings according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: DF14-20S-1.25C

side 2: STE-2002-2X22P and STE-2002-2X25P

pitch 2.00 mm, 2-rowed, both sides unplugged 26-pin, highly flexible round cable, twin stranded, shielded, AWG28, l = 500 mm

included housings: DF14-20S-1.25C, STE-2002-2X22P. STE-2002-2X25P

operating temperature: -20 °C to 85 °C

weight: 32.8 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS and DVI
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable fits to the following pin headers:
• STE-2002-2X22P, STE-2002-2X25P, DF14-20S-1.25C, DF14-20P-1.25H, MSB240420, MSB240420-E, P240420, GT123-20P-H16, GT123-20S-CS, 3804-F20N-06R, CWY20G-A0D1T, 3804K-F20N-10L, CID520D, MSB240420HE (STM)
• The following displays will be supported:
• AA150XN01, AA150XN02, G150XG01, G150XG02, G150XG03, LB150X02, LB150X06, LC150X01, LC150X01-A3, LC150X01-SL01, LC150X02, LC150X02-A4, LC150X02-TL01, LC151X01-C3, LC171W03, LC171W03-A4, LC171W03-C4, LC230W01, LC230W01-A2, LC260W01, LC260W01-A5K1, LM150X08, LQ150X1LG45, LQ150X1LG55, LQ150X1LGB1, LQ150X1LGN2, LQ150X1LGN2A, LQ150X1LGN2E, LQ150X1LW71N, LQ150X1LW72, LTM150XH, LTM150XH-L01, LTM150XO-L01, M150XN07, M170XW01, NL10276BC30-17, NL10276BC30-18, NL10276BC30-18C, NL10276BC30-32D, NL10276BC30-33D, NL128102AC31-02, NL12876BC26-25, T140VN01, T201VN02V0, T-51863D150J-FW-A-AA, T-51863D150J-FW-A-AB, T-51863D150J-FW-A-AD, T-51863D150J-FW-A-AE, G150X1, G121SN01, G121SN01V1, G121SN01V2, G121SN01V3, G150XG03V2, G121SN01V4, NL10276BC30-33D, LQ150X1LW71N, LQ150X1LG82, G150XG02V1, T-55519D150J-LW-A-AAN, G121SN01-V4, NL10276BC30-34D, HT15X15, G121NX01, G150XG01 V3, LQ150X1LG91, SCF0700720GGU12, FG0700K6DSSWBG01, G150XTN05.1, CLAA150XP01Q, CLAA150XP07FQ, CLAA150XP07Q, AC150XA01, AC150XP01, CLAA150XP04, CLAA150XP01PQ, CLAA150XP01PE, LQ150X1LG76, CLAA150XP06 CW, CLAA150XP07 CW, CLAA150XP07Q, CLAA150XP07FQ, G150XG03 V0, G150XG03 V1, M150EW02 V0, M150XN07 V2, M150XN07 V3, MI700J1T-2, G150XNE-L01, G150XNE-L03, T150NB02D01, OT070KGWDLL, OT070PGDDLT-H0, OT070PGDDLT-H1, OT080FSDDLV-H0, OT090AGDDLT-00, OT101CAWDLT-00, OT101DAWDLV-H0, LQ101K1LY05, OT104ASDDLV-02, G121SN01 V402, G121SN01 V403, G121STN01.0, G121XTN01.0, OT121AXWDLV-H0, LQ121K1LG52, LQ121K1LG53, LQ123K3LG01, G150XAN01.1, G150XTK01.0, G150XTN03.2, G150XTN06.2, G150XTN06.3, G150XTN06.4, G150XTN06.8, G150XTN06.9, OT150CXDDLV-H1, OT150ZXUDLV-00, LQ150X1LW95, LQ150X1LW96, LQ150X1LX95, LQ150X1LX96, LQ150X1LX9A, LQ201U1LW31, LQ201U1LW32, G215HAN01.0, G215HVN01.1, JH215WLPNN, LM215WF3-SLC1, LM215WF3-SLK1, LM215WF3-SLN1, OT215BFWDLV-00, OT215ZFWDBL-00, NL12876BC26-32D, G150XAN01.2, G150XTK02.0, G150XTN06.A, G121XN01 V001, G121XN01 V0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, TM150TDSG71, NL10276AC30-52C, NL13676BC25-07F, G150XGE-L06, LQ150X1LW12, TM121SDS01, TM121TDSG02, G150XGE-L04, PH102768T-001, G150XGE-L07, NL10276AC30-48D, G150XTN03.0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, G150XAN02.1, HM150X01-N01, NLB121SV01L-01, NLB121XG01L-01, NL10276BC30-39, NLB150XG01L-01, G150XAN01.0, IDK-1115P-40XGC1E, LQ064X3LW02, PH102600T003-IBA, P1500XGF2MA00
• The following Board will be supported:
• PICO-BT01
