KAB-KEL-USLS20-40-007-BOMIT

Technical drawing Product catalogue: KEL USLS series

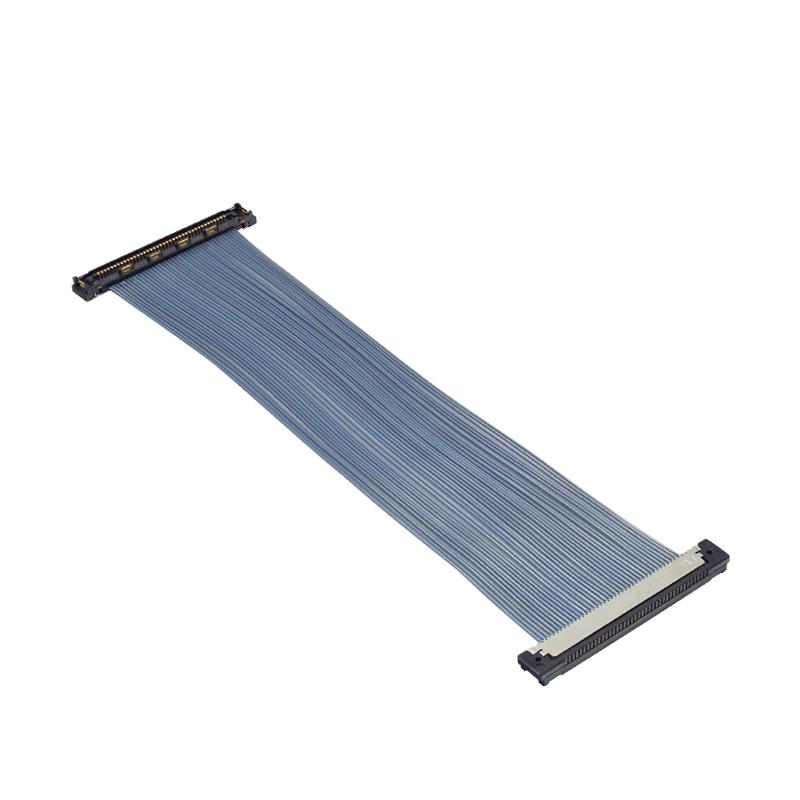

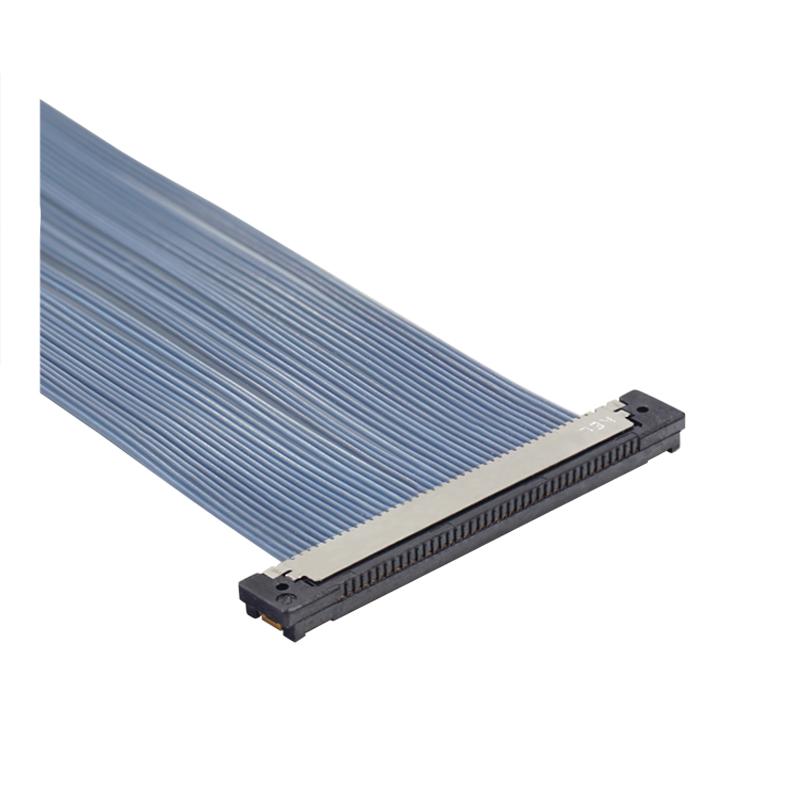

In this micro coaxial cable assembly, KEL connectors of the USLS20 series are installed, in a 40-pin version. Devices are becoming ever smaller and more compact, making it increasingly difficult to mount board-level connectors in the narrowest spaces. The KEL connector of the USLS series with its effective mating length of only 0.35 mm and a low profile stack height of 1.65 mm is perfectly suited for narrow environments.

The ultra-fine AWG42 single strands offer maximum flexibility in applications. For a rigid version, with laminated tape, please select our article: KAB-KEL-USLS20-40-007-BH . In addition, the USLS connector is ideal for applications where cables must be passed through 4.0 mm diameter holes (for example in mobile phones) – even during final assembly. The USLS connector is designed to be advantageous in terms of torsion, which is often a problem in stacked configurations.

We can offer you the USLS connector in three versions with 20, 30 and 40 contacts and in two different stack types, straight and angled.

side 1: USLS20 KEL plug, 40 pin

side 2: USLS20 KEL plug, 40 pin

micro coaxial cable: single strands AWG42

L = 70 mm

pitch: 0.4 mm

1:1 assignment

connection type: horizontal

operating temperature: -40 °C to +85 °C

weight: 1 g

Material and plating:

insulator material: glass-filled LCP (UL94V-0), black

contact material: copper alloy

contact plating: gold over nickel, nickel barrier (board side)

shell material: copper alloy

shell plating: gold over nickel, tin copper over nickel

cover material: glass-filled LCP (UL94V-0), black

Electrical characteristics:

current rating: 0.25 A per contact

contact resistance: max. 100 mΩ

dielectric withstand voltage: 200 V AC for 1 minute

insulation resistance: 100 MΩ min. at 250 V DC

Key Features

• compact connector with a low profile of 1.65 mm (0.065'') and a plug width of 3.05 mm (0.120'')
• suitable for insertion through a narrow 2.7 mm (0.106") diameter hole even after soldering
• better grounding performance for improved data transmission and EMC protection
• effective mating length of 0,35 mm (0.014’’)
• the metal housing reduces EMC interference and ensures product strength
• connector is equipped with a nickel insulation layer on the contacts on the board side to prevent lift-off during soldering

Product Notes

connector is available in three other sizes: 20, 30 and 40 pole.

Matching PCB headers : USLS00-40, USLS00-40-A, USLS00-40-B, USLS00-40-C

Connector part of Sony HD Camera : FCB-EV7500, FCB-EV7520, FCB-EV5500, FCB-EV7300, FCB-EV7320, FCB-EV7310, FCB-EV5300, FCB-EV7100
