KAB-KEL-USLS20-40-007-BH

Technical drawing Product catalogue: KEL USLS series

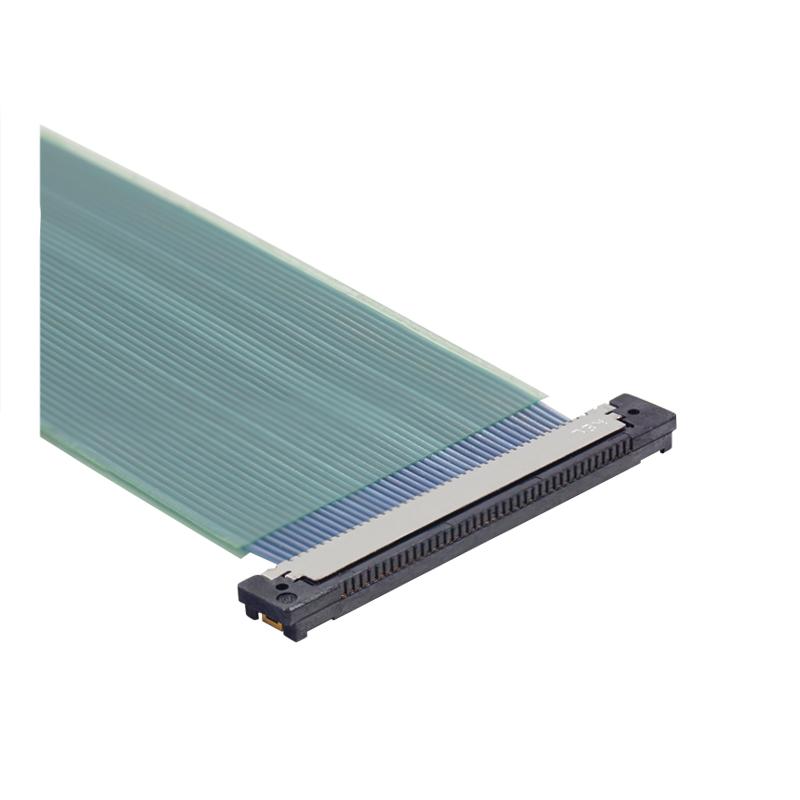

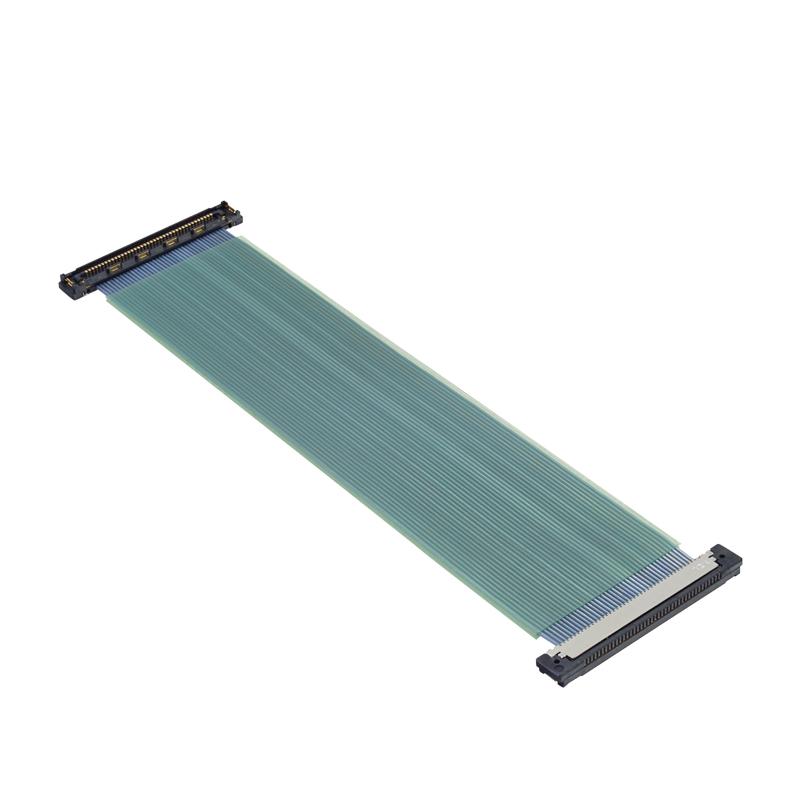

In this micro coaxial cable assembly, KEL connectors of the USLS20 series are installed, in a 40-pin version. The ultrafine AWG42 single strands are laminated with a tape, for a more flexible version, without tape, please choose our article: KAB-KEL-USLS20-40-007-BOMIT .

Devices are becoming ever smaller and more compact, making it increasingly difficult to mount board-level connectors in the narrowest spaces. The KEL connector of the USLS series with its effective mating length of only 0.35 mm and a low profile stack height of 1.65 mm is perfectly suited for narrow environments. The connector is available in three versions with 20, 30 and 40 contacts and in two different stack types, straight and angled.

side 1: USLS20 KEL plug, 40 pin

side 2: USLS20 KEL plug, 40 pin

micro coaxial cable: single strands AWG42, tape laminated

L = 70 mm

pitch: 0.4 mm

1:1 assignment

connection type: horizontal

operating temperature: -40 °C to +85 °C

weight: 1.2 g

Material and plating:

insulator material: glass-filled LCP (UL94V-0), black

contact material: copper alloy

contact plating: gold over nickel, nickel barrier (board side)

shell material: copper alloy

shell plating: gold over nickel, tin copper over nickel

cover material: glass-filled LCP (UL94V-0), black

adsorption tape material: [USLS00] polyimide

Electrical characteristics:

current rating: 0.25 A per contact

contact resistance: max. 100 mΩ

dielectric withstand voltage: 200 V AC for 1 minute

insulation resistance: 100 MΩ min. at 250 V DC

Key Features

• compact connector with a low profile of 1.65 mm (0.065'') and a plug width of 3.05 mm (0.120'')
• suitable for insertion through a narrow 2.7 mm (0.106") diameter hole even after soldering
• better grounding performance for improved data transmission and EMc protection
• effective mating length of 0,35 mm (0.014’’)
• the metal housing reduces EMC interference and ensures product strength
• connector is equipped with a nickel insulation layer on the contacts on the board side to prevent lift-off during soldering

Product Notes

connector is available in three other sizes: 20, 30 and 40 pole.

Matching PCB headers : USLS00-40, USLS00-40-A, USLS00-40-B, USLS00-40-C

Connector part of Sony HD Camera : FCB-EV7500, FCB-EV7520, FCB-EV5500, FCB-EV7300, FCB-EV7320, FCB-EV7310, FCB-EV5300, FCB-EV7100
