connector GH series

KAB-GHR-08V-S-0500LI

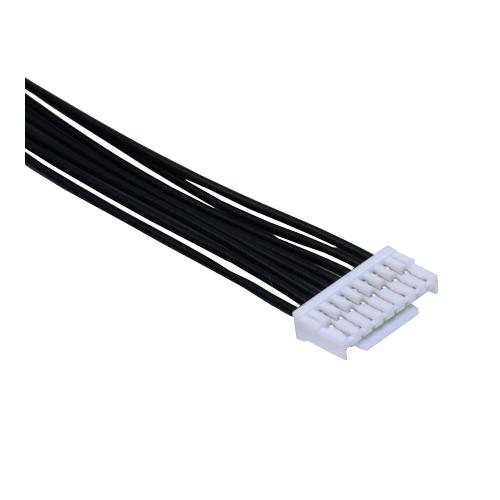

connector GH series This wiring harness allows a quick and easy connection between a LED backlight display with a JST connector of the GH series and any other connector. We supply an 8-pin flexible wire with assembled socket housing. The second side of the cable is unprocessed. This cable is particularly suited for samples and small series.

side 1: GHR-08V-S

side 2: unprozessed

8 x black wire, AWG28, L = 500 mm UL iQ™1061

Key Features

• available ex stock
• customer specific assembly
• deliverable in different lengths on short notice
• It supports the following displays and devices:
• G190ETN01.2_REV0.0, G190ETN01.4

Product Notes

Matching pin headers: SM08B-GHH-TB, BM08B-GHS-TBT, SM08B-GHS-TB
