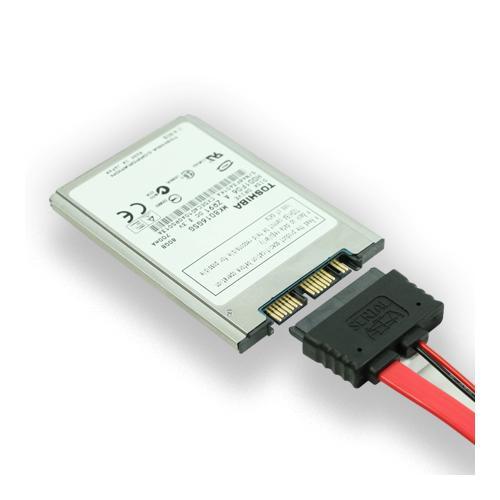

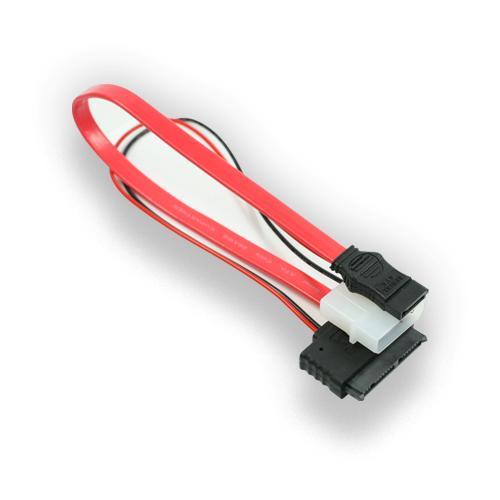

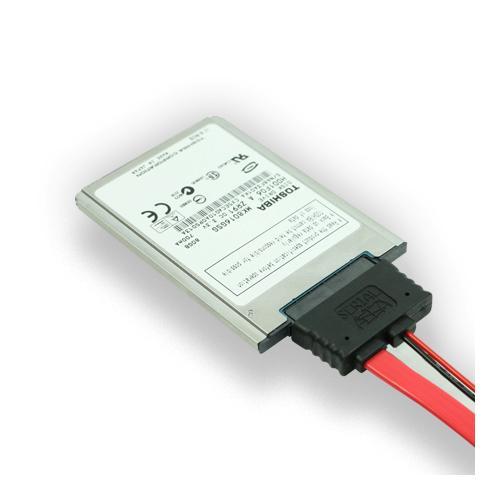

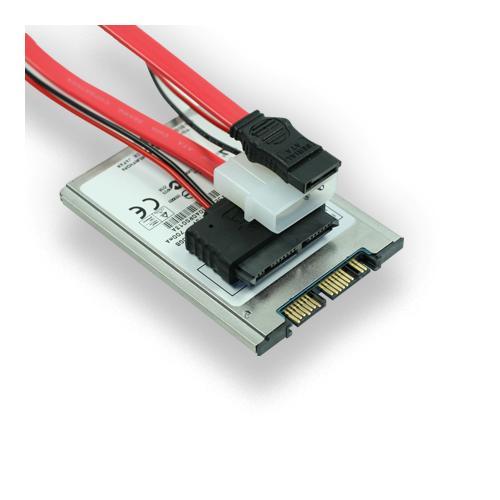

Back to overview EOL KAB-HDD-1.8-SATA-0300-3.3V-5.0V Adapter cable with build-in 5V to 3.3V voltage converter for 1.8“ HDD/SSD with Micro-SATA connector. The adapter is suitable for hard drives with 3.3V and 5V.

side 1: Micro-SATA/Micro S-ATA, female, 7 + 7 + 2 pins = 16 pins

side 2: SATA data connector, 7-pin

side 2.1: 5 ¼ inch HDD power supply connector, 4-pin

wire: SATA-flat cable, red, 300 mm (outside)

strands: red and black for power supply, 300 mm

operating temperature: -20 °C to 85 °C

weight: 20.5 g

Amongst others the following hard drives can be connected:

Toshiba: MK1229GSG

Toshiba: MK1629GSG

Toshiba: MK2529GSG

Toshiba: MK8017GSG

Toshiba: MK1617GSG

Toshiba: MK1216GSG

Toshiba: MK8016GSG

Intel ® X18-M 80GB Intel ® SSDSA1MH080G1 Intel ® X18-M 160GB Intel ® SSDSA1MH160G
