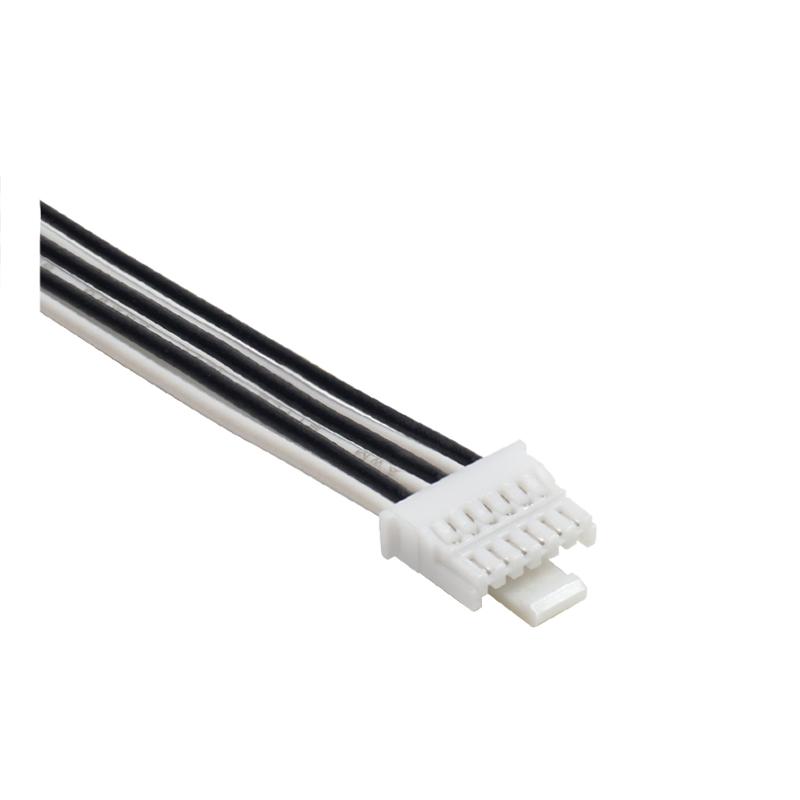

LED backlight cable with CVILUX CI16 connector

KAB-CI1606SL00A-NH-0500LI Product catalogue: CVILUX CI16 series

We used the CI16 connector from CVILUX   for this LED inverter cable assembly. The LED inverter cable is designed for wire-to-board connections and is suitable for backlight display applications.

side 1: 6pin CVILUX CI1606SL00A-NH

side 2: cut off straight, unequipped

wire: AWG28, UL1571, black, ws

L = 500 mm

mating cycles: 2 to 20

halogen-free RoHS compliant lead-free manufacturing process

temperature range: -25 °C to 85 °C

weight: 4.35

Electrical characteristics:

rated current and voltage: 1 A AC/DC, 125 V AC/DC

contact resistance: max. 20 mΩ

insulation resistance: min. 100 MΩ

dielectric withstanding voltage: 500 V AC for 1 minute

Fits: CI1606M1VR0-NH, CI1606MH1VR0-NH, CI1606M1VRA-NH, CI1606MH1VRA
