Technical drawing Product catalogue: I-PEX CABLINE®-CA

KAB-I-PEX-20524-040T-0300-1:1-ROUND

Technical drawing Product catalogue: I-PEX CABLINE®-CA

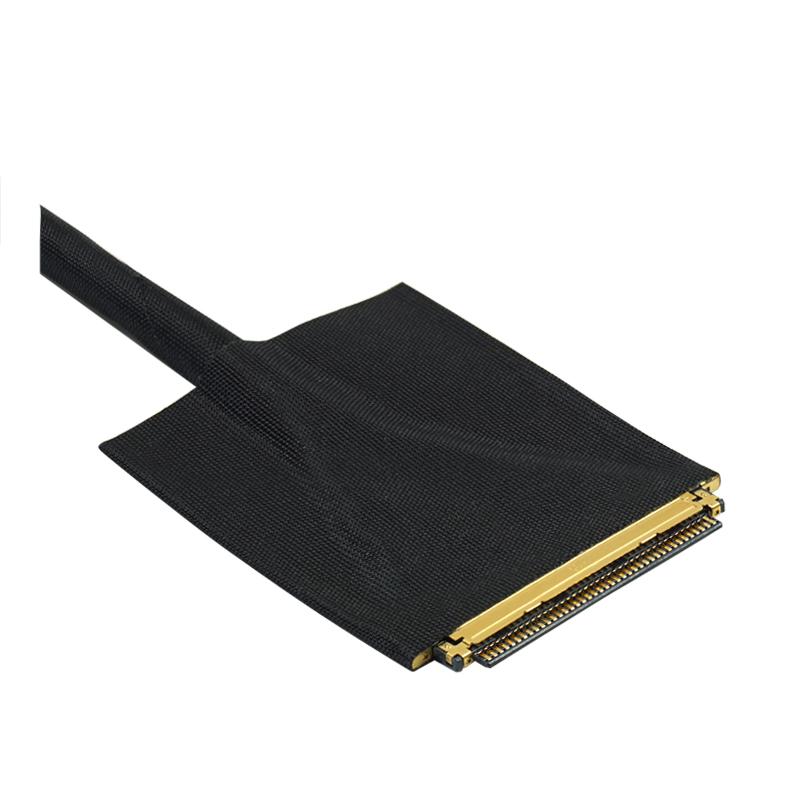

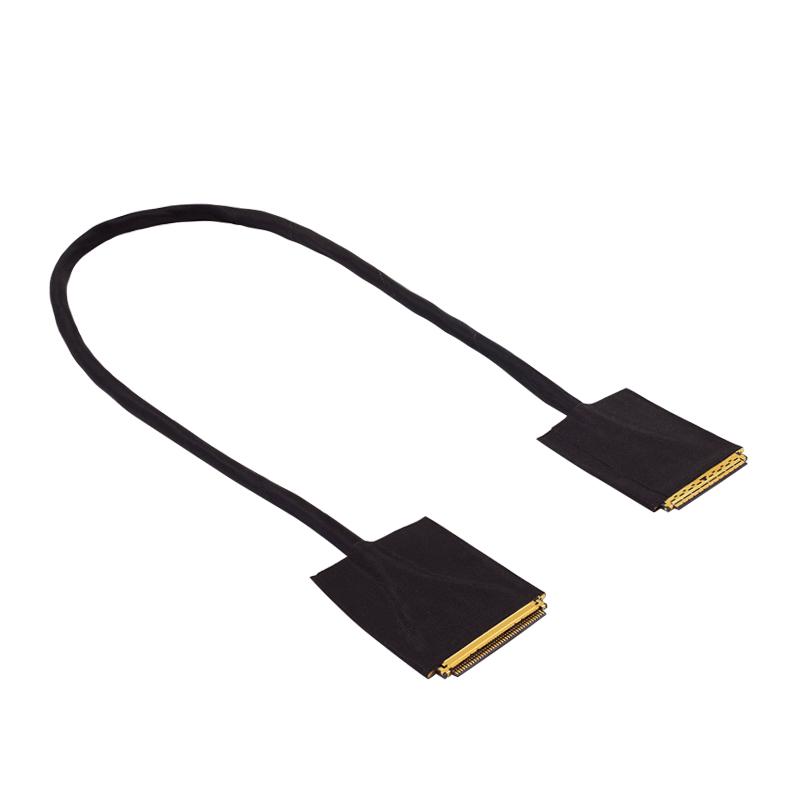

This I-PEX micro coaxial cable is ideal for high data rate transmissions and for Thunderbolt™ 3 (20 Gbps/lane) applications. I-PEX connectors of the CABLINE®-CA series, type 20524-040T, with a pitch of 0.40 mm are installed on both sides of the cable assembly. The connector is mounted horizontally. The CABLINE®-CA plug with its slim plug design (nominal height: 1.00 mm) is ideally suited for installation in narrow spaces and for push-through installations. Other pole numbers are available: 10, 12, 20, 30, 40, 50, 60.

side 1: 20524-040T, pitch = 0.40 mm

side 2: 20524-040T, pitch = 0.40 mm

round cable: micro coaxial cable with tape, black

AWG42, L = 300 mm 1:1 assignment

current intensity: 0.3A AC/DC per contact

mating type: horizontal

mated height: max. 1.10 mm (1.00 mm nominal)

halogen-free REACH and RoHS compliant

temperature range: -20 °C to 85 °C

Special features: high-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applications safe EMC shielding due to metal frame slim connector design, suitable for through hole mounting mechanical locking bar prevents incomplete mating and back-out/un-mating several connector options are possible with the CABLINE®-CA series

further pin numbers are available: 10, 12, 20, 30, 40, 50, 60

AWG: #34, #36, #38, #39, #40, #42, #44, #46

Application possibilities: Thunderbolt™ 3 (20 Gbps/lane), USB® 3.1 Gen 2 (10 Gbps), eDP HBR 3 (8.1 Gbps), HDMI® 2.0 (6 Gbps), MiPi Gear 3 (5.8 Gbps), eDP HBR 2 (5.4 Gbps), USB® 3.1 Gen 1 (5 Gbps), V-By-One HS 1.4 (4 Gbps), eDP (2.7 Gbps)

Suitable for: Camera module LI-IMX274-MIPI-CS / FAW-1233

Suitable for pin header: 20525-040E-02, 20525-040E-01M, 20525-040E-02M, 20525-040E-01-S, 20525-040E-02-S, 20525-240E-01-S, 20525-240E-02-S

Suitable for displays: LQ156D1JW02, LQ156D1JW04, LQ156D1JW05, LQ156D1JW05-E, LQ156D1JW06, LQ156D1JW31, LQ156D1JW33, LQ156D1JW37, LQ156D1JX01, LQ156D1JX01B, LP140WFB,  TST133FHBX-05
