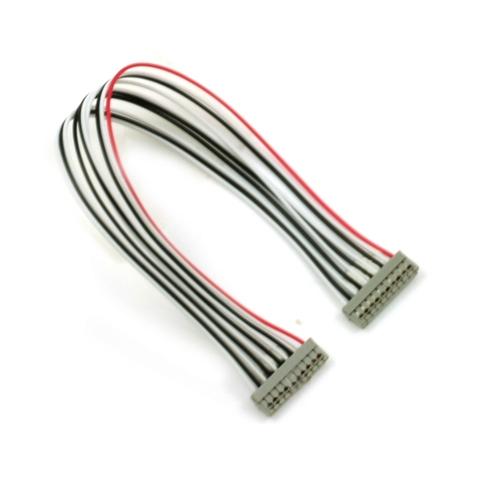

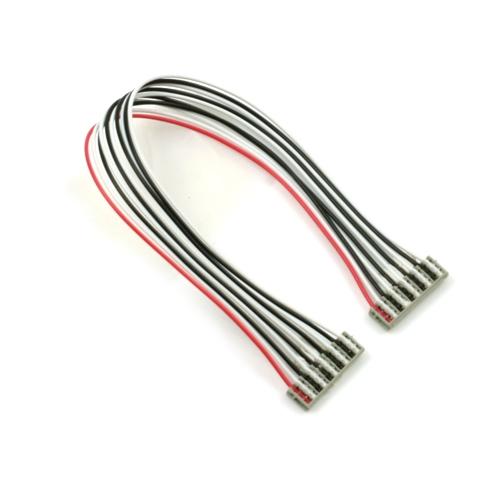

series ACES 91209 KAB-ACES-91209-01011-0100LI-1:1 series ACES 91209 This wiring harness allows a quick and easy connection between a display LED-Backlight with a connector of the ACES 91208/91209 series and any other connector. We supply a connector (10-pin) 91209-01011 with 10 strands and an assembled socket housing on both sides. This cable is particularly suited for samples and small series.

side 1: 10 pin ACES 91209-01011, p = 1.00 mm

side 2: 10 pin ACES 91209-01011, p = 1,00 mm

strands UL1571, AWG32 wire OD from 0,52 mm to 0,56 mm length = 100 mm pin 1 - red strand

Key Features

• available ex stock
• customer specific assembly
• available in various lengths for example:
• KAB-ACES-91209-01011-0200LI-1:1 , length: 200 mm or
• KAB-ACES-91209-01011-0250LI-1:1 , length: 250 mm or
• KAB-ACES-91209-01011-0500LI-1:1 , length: 500 mm or
• KAB-ACES-91209-01011-1000LI-1:1 , length: 1000 mm
• This cable fits for the following header:
• 91209-01011, 91208-01001
• The following connector is usually available from stock:
• STE-ACES-91208-01001-H01
• This cable supports the following displays:
• G104X1-L04, G121X1-L03, G104X1-L03, FG100451DSSWNG01, TX31D45VM, AM-1024768GTMQW-T00H, VGG107603-0TMLWD, VGG107603-0TMLWC, G121XCE-L02

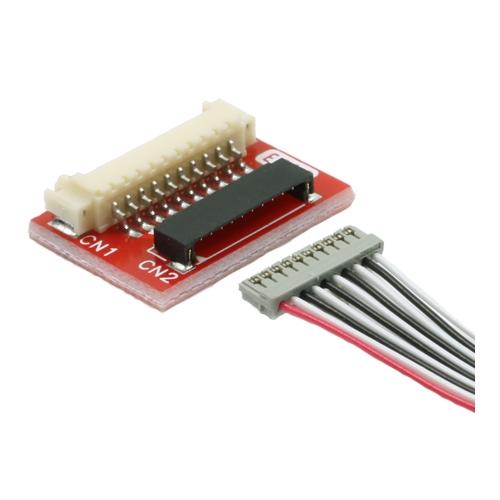

• This cable supports the following ES&S adapter:
• ADA-91209-01011-51021-1000 (picture 4)
