KAB-DF19G-30S-0500RK

Wire colour code This wiring harness allows a quick and easy connection between a display with a connector of the HIROSE DF-19 series and a graphics board. We supply a twisted pair round cable with 30 assembled crimp contacts and a suitable connector housing. The second side is unprocessed. The connectors can be assembled easily according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. This cable is suited for samples and very small series.

side 1: mounted contacts typ DF19A-2830CFA for connector Hirose DF19G-30S-1C, unstucked, enclose

side 2: unprocessed, just cut off

Roundcable, AWG28, twin stranded, shielded, UL 20276, OKI, l = 500 mm

operating temperature: -20 °C to 85 °C

weight: 35.2 g

Key Features

• individual assembling possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS and DVI

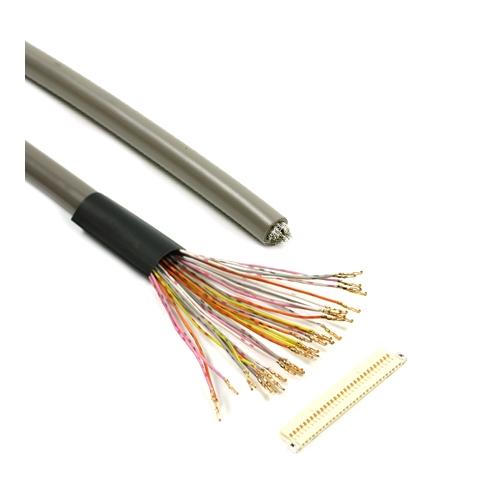

• This cable will be delivered unplugged including connector housing (see fig.).
• This cable fits to the following pin headers:
• DF19G-30P-1H, DF19K-30P-1H, DF19L-30P-1H, DF19KR-30P-1H, DF19-30P-1V, GT100-30P-LS-SMT, CNT245-30221, CNT245-30211, MSB24013P30, IP100-C30O-C15, 20268-030E, HS89300, HS90300, IP100-C30O-C15, 20268-030E, P24013P30, MSB24013P30HA, MSB24013P30A, 20230-030B-F, 20230-T30-F, 20230-W30B-F, 107A30-0021RA-G3-R, 20268-030E-12E, CP100-S30G-H16
• This following displays will be supported:
• LQ084S3DG01, LTM084P363, LTM08C351, LTM08C351S, NL10260BC19-01D, NL160120AC27-22B, NL160120AM27-13A, NL160120BC27-02, NL160120BC27-10, NL160120BC27-14, NL160120BM27-03, NL160120BM27-03A, NL12876AC18-03, AM-1024768TTMQW-00H, G133HAN01.0, VGG804818-6UFLWM, VGG106002-6UFLWH, VGG128004-5TSLWG, VGG128004-5TSLWH, VGG128004-5TSLWI, VGG106002-6UFLWE, NL160120AC27-32, NL192108AC10-01, ETM070018EDHA, ETM070018EDRA
