IP67 socket USB 3.0 type A M20 KAB-IP67-VM-USB3.0-A-F-USB3.0-A-M-0500RK-UNV Here we offer you our new IP67 cable solution with a female USB 3.0 type A full metal plug. The IP67 socket, with its screwable cap and rubber seal, is dust and waterproof and meets the IP67 protection class. In addition, you can attach the cap to your enclosure with its external safety wire, so the socket cannot get lost. A self-locking nut is included in the scope of delivery and provides the necessary hold for the socket with a housing thickness of up to 8 mm. The 500 mm long SuperSpeed connection cable in premium quality enables data transfer rates of up to 5 Gbit/s. The socket is ideal for heavy-duty use in the medical technology sector and for industrial use.

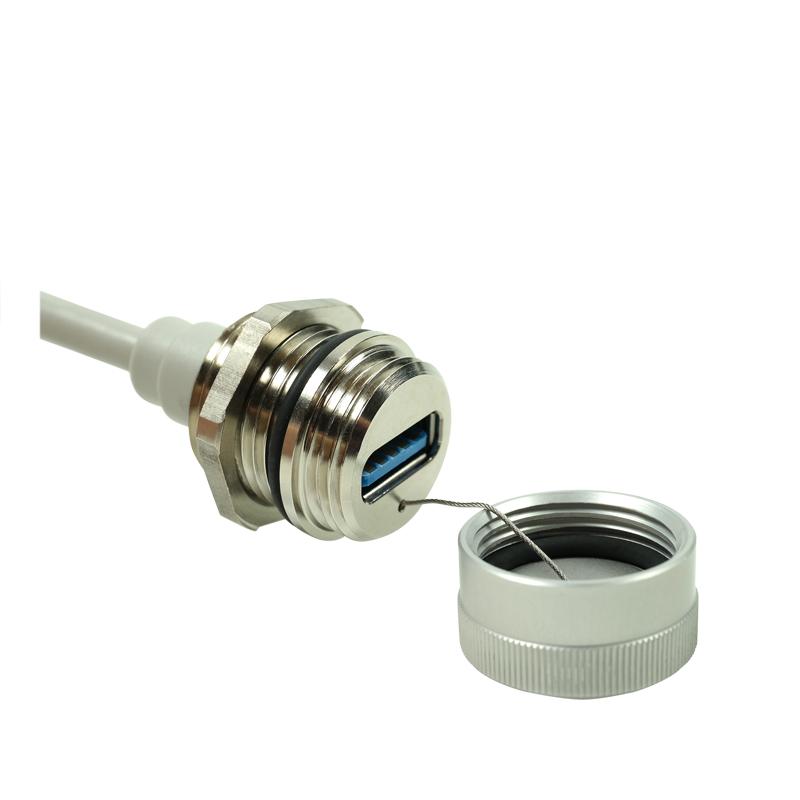

side 1: IP67 USB 3.0 type A, female; incl. screw-on cap with safety wire, nut and seal

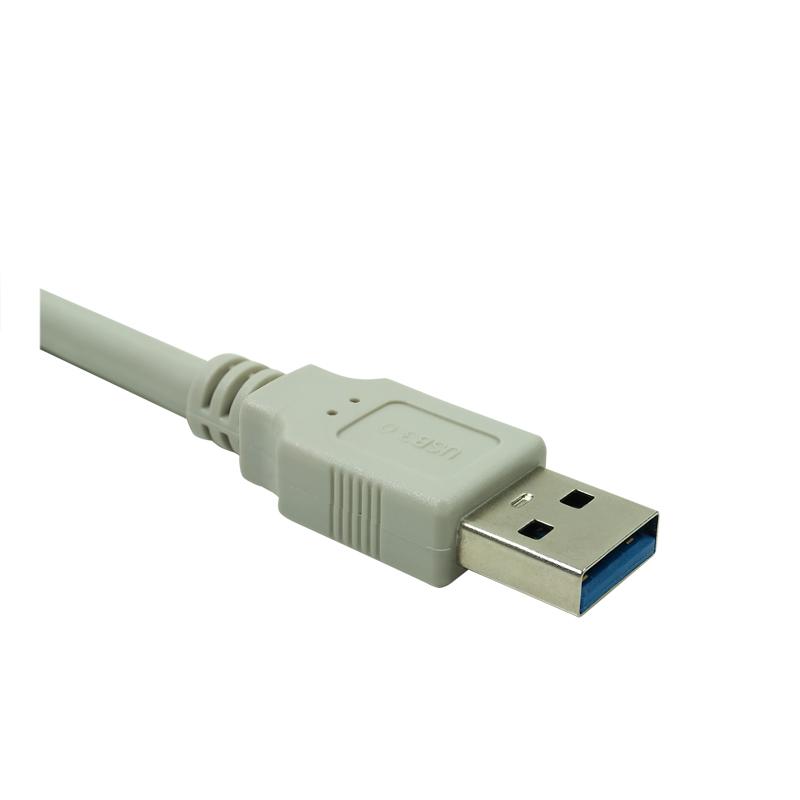

side 2: USB 3.0 type A, male

round cable: UL2725 (80 °C, 30 V), grey, L = 500 mm

socket thread: M20 x 1.5 mm

The self-locking nut is suitable for a front panel thickness of up to 8 mm. Nut and seal are included. Further accessories can be found here .
