KAB-SET-DF19-30S-DF13-XXDS-0500RK

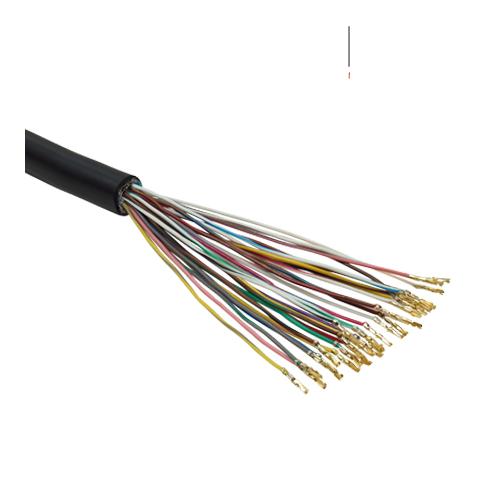

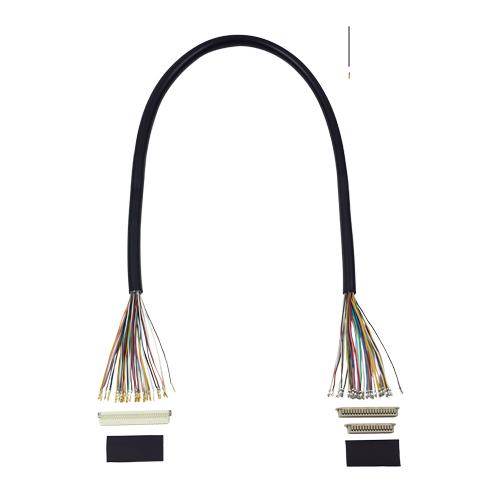

Wire colour code With this cable set you can quickly and easily connect a display to a 30-pin WELL-A-1019-H connector (compatible with DF19G-30S-1C) and any DF13 series connector in 30 or 40-pin. The 30-pin round cable has crimp contacts mounted on both sides. It is supplied unplugged but the matching socket housings are included in the set. You can easily plug the contacts into the corresponding housing chambers according to your own cable diagrams – therefore you can achieve an optimum function and assignment of the pairs to the signal structures.

side 1: WELL-A-1019-H-30P/DF19G-30S-1C * unplugged *, socket housing included

side 2: DF13-30DS-1.25C/DF13-40DS-1.25C* unplugged *, socket housing included

LVDS cable, round cable: Ø = 6.8 + - 0.2 mm, AWG30, L = 500, black

tinned copper conductors, single cores Ø = 0.60 + - 0.05 mm

UL20276

operating temperature: -10 °C to 80 °C

weight: 28.8 g

Key Features

• sample quantities available from stock
• individually equippable on both sides
• other lengths available on request
• suitable for LVDS
• This cable is delivered unplugged on both sides with matching sockets!
• We also offer the assembly of this cable and the manufacture of a ready-to-connect cable (single-sided or double-sided according to your cable plans). Please call us, we will make you a non-binding offer.

Product Notes

These following displays will be supported: VGG128004-5TSLWG, VGG128004-5TSLWH, VGG128004-5TSLWI, VGG106002-6UFLWE, LQ084S3DG01, LTM084P363, LTM08C351, LTM08C351S, NL10260BC19-01D, NL160120AC27-22B, NL160120AM27-13A, NL160120BC27-02, NL160120BC27-10, NL160120BC27-14, NL160120BM27-03, NL160120BM27-03A, NL12876AC18-03, AM-1024768TTMQW-00H, G133HAN01.0, VGG804818-6UFLWM, VGG106002-6UFLWH, VGG128004-5TSLWG, VGG128004-5TSLWH, VGG128004-5TSLWI, VGG106002-6UFLWE, NL160120AC27-32, NL192108AC10-01D, ETM070018EDHA, ETM070018EDRA This cable fits for the following plug connector: DF19G-30P-1H, DF19K-30P-1H, DF19L-30P-1H, DF19KR-30P-1H, DF19-30P-1V, GT100-30P- LS-SMT, CNT245-30221, CNT245-30211, HS89300, IP100-C30O-C15, 20268-030E, P24013P30, MSB24013P30HA, MSB24013P30A, 20230-030B-F, 20230-T30-F, 20230-W30B-F, 107A30-0021RA-G3-R, 20268-030E-12E, CP100-S30G-H16
