KAB-ACES-50204-40-0300COAX-RK

Drawing: connector Acex 50204 series Drawing: connector ACES 50203 series

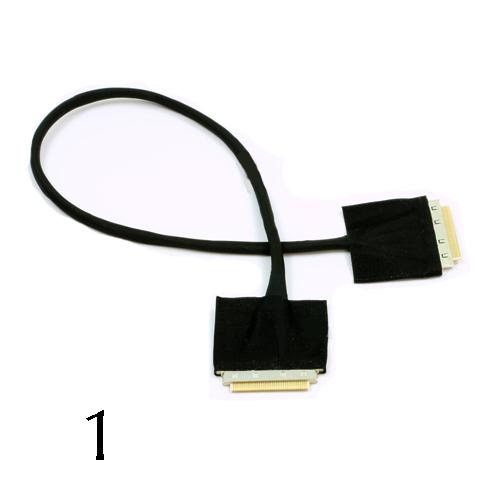

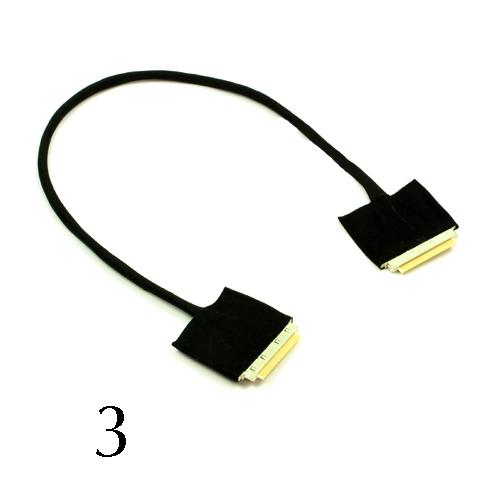

ACES connector series, cable for high speed LVDS applications especially for LCD display control. LVDS cable assembly with connectors of the series ACES 50204 for high speed LVDS applications especially for LCD display control.

side 1: ACES 50204-40, 0.50 mm

side 2: ACES 50204-40, 0.50 mm

round cable AWG40, micro-coax, configuration 1:1, l = 300 mm

weight: 8.84 g

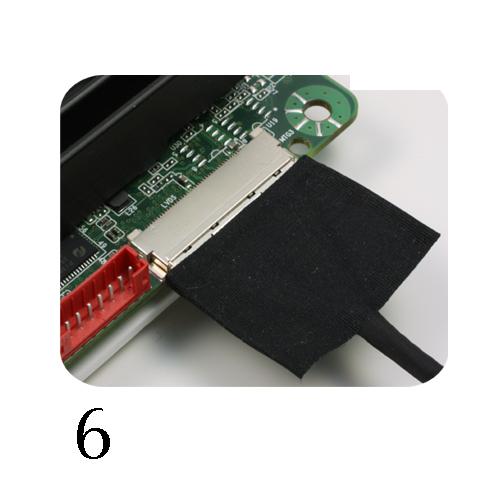

Suitable for ACES connector: STE-ACES-50203-040-0-N-001 (see fig. 6)

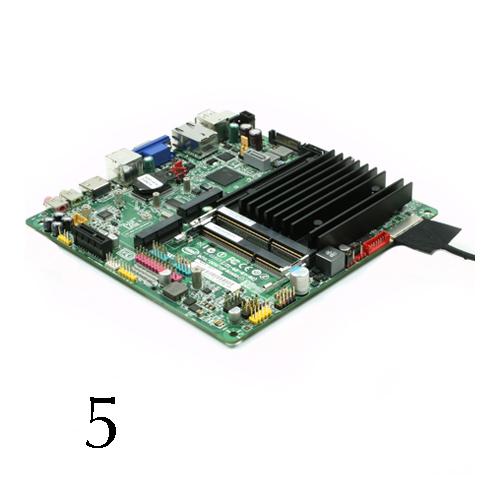

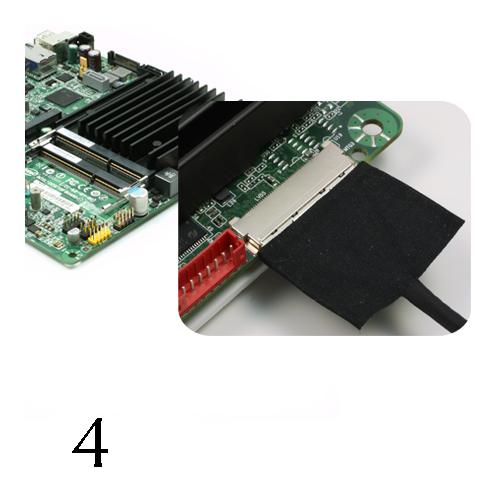

Suitabel for Starconn 107F40 pin header. Suitable for Intel® Desktop Board: DH61AG, DN2800MT (see fig. 4 to 6)

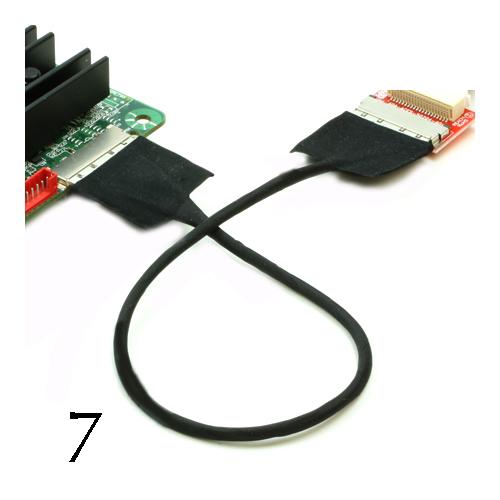

Suitable for our adapter set: ADA-ACES-50204-040-SET (see fig. 7)

Specific features: connector compatible with VESA® Embedded DisplayPort Standard (eDP™) ACES 88341-40 SMD receptacle, compatible to ACES88441-40 (40 pin)* standard cable length l = 300 mm extremely slim design, counterpart with a max. height of 1.00 mm on printed circuit board safe shielding by a rack mechanical catch mechanism against vibrations and impacts This cable is suitable to Conga-IC87, Conga-IC97 Thin Mini-ITX SBC, MITAC Desktop Board PD10BI
