KAB-SHDR-40V-0250LI

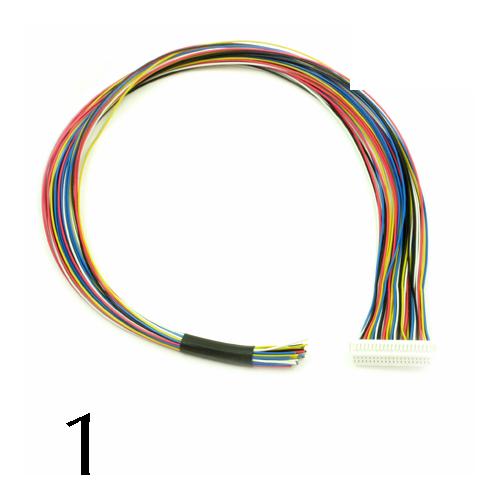

This cable is designed for our adapter sets. The adapter sets are especially developed for LVDS high speed applications and display control. This cable connects the according adapter set with a connector of the ACES 87219 series or the JST SHDR series with any contact. We supply a 40-pin connector 87219-4000 or SHDR-40 equipped with 40 strands and mounted socket housing, the second side of the cable is unprocessed.

side 1: 40-pin ACES 87219-4000 or JST SHDR-40, R = 1.00 mm

side 2: unprocessed

strand UL94V-0, AWG28-32 L = 500 mm

dimension: 30 (l) x 20 (w) x 1.6 (h) (in mm)

weight: 13.5 g

Key Features

• customized assembly possible
• different lengths deliverable at short notice
• This cable fits with the following adapter boards:
• ADA-ACES-50204-40-SET (see fig 2)

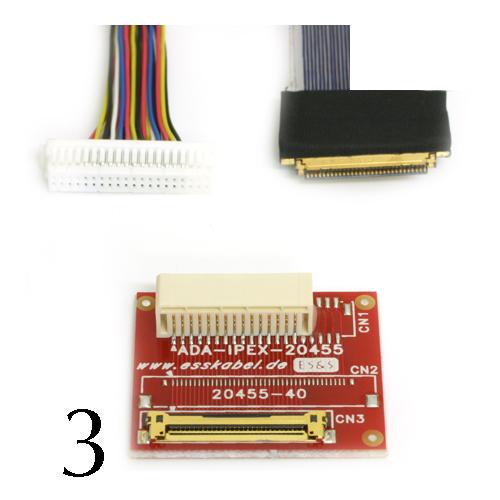

• ADA-I-PEX-20455-030-SET-0250LI (see fig 3)
• ADA-I-PEX-20455-040-SET-0250LI (see fig 3)

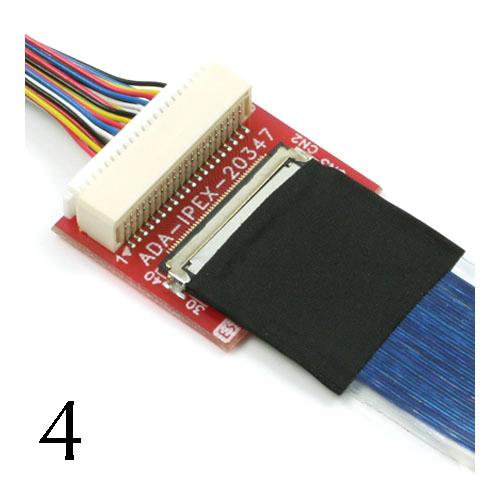

• ADA-I-PEX-20347-25-SET-0250LI (see fig 4)
• ADA-I-PEX-20347-30-SET-0250LI (see fig 4)
• ADA-I-PEX-20347-40-SET-0250LI (see fig 4)
• This 40-pin cable fits to the following pin headers:
• BM40B-SRDS-G-TF, SM40B-SRDS-G-TF, 87216-4000, 50238-4000, A1001WV-S-2X20, W100V40TP2
