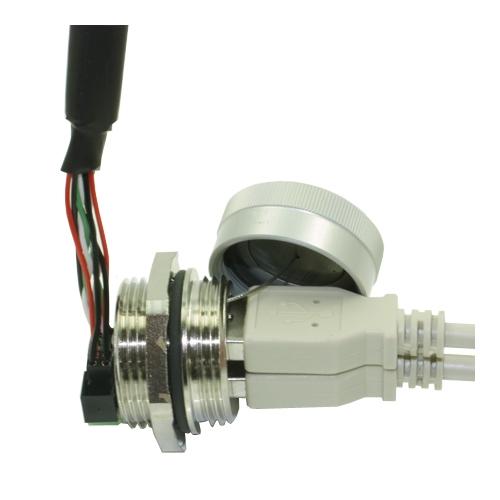

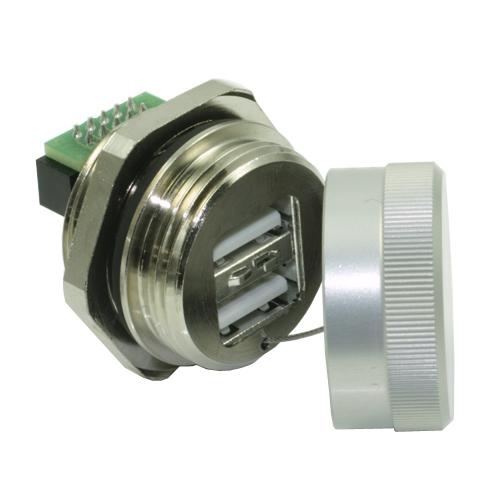

Technical drawing IP67 IP67 Dualport USB type A | M25 KAB-IP67-VM-USB-A-F-DUAL-UNV Technical drawing IP67 With this IP67 compliant USB cable bushing 2 x USB type A male cables can be connected. This version is suitable for robust industrial applications due to the full metal housing manufactured according to the IP67 guidelines. 2 x USB 2.0 connector IP67, DUAL-PORT

side 1: 2 x IP67 USB type A female flange, with screw mountable cap being undetachably fixed

side 2: header 2 x 5-pin, R = 2.00 mm

for front panels up to 8.00 mm

thread: M25x1.5

operating temperature: -20 °C to 85 °C

weight: 42 g

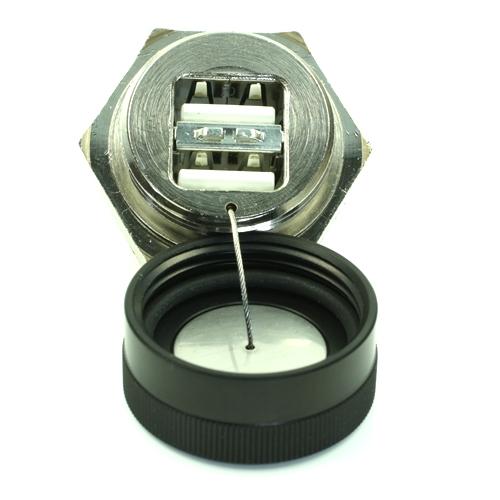

This part is also available with back anodized dustcover. (see pic. 4) Our item no. KAB-IP67-VM-USB-A-F-DUAL-UNV-SW You will find auxiliary equipment under the category IP67 accessories . Our suitable cable (see pic. 3): KAB-USB-DUAL-0500RK normally ex stock available. Please order separatly.
