Technical drawing IP67 USB 3.0 Stainless Steel Socket with Pin Tray STE-IP67-V2-USB3.0-A-F-UNV Technical drawing Here we offer you our new, high-quality IP67 USB 3.0 stainless steel socket, with a built-in pin trough from JST on the back, for a laterally angled cable connection.

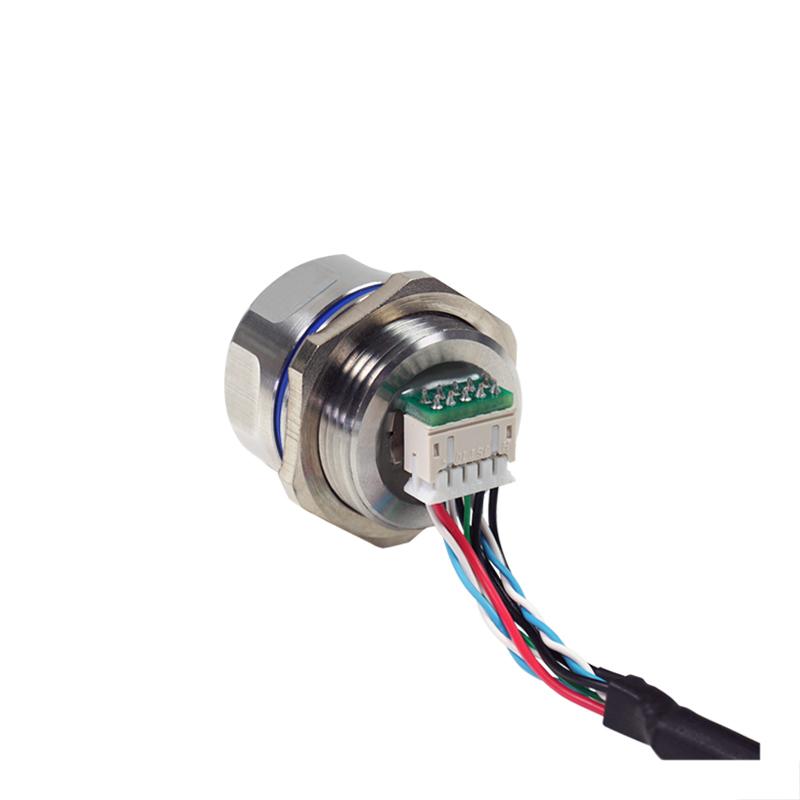

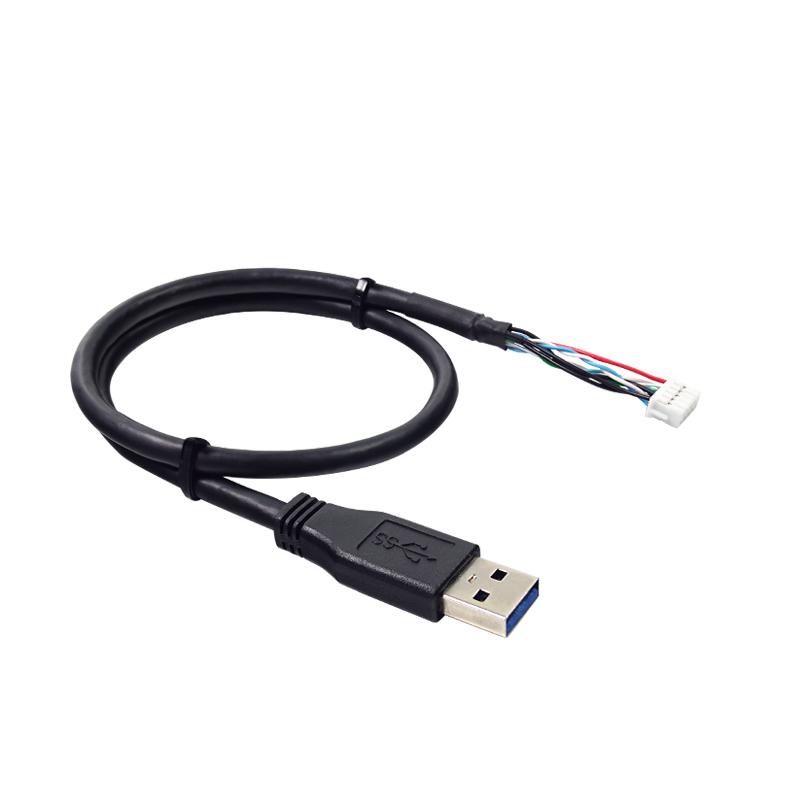

You can purchase the suitable cable from us under the following order number: KAB-USB3.0-USB3.0-M-0500RK .

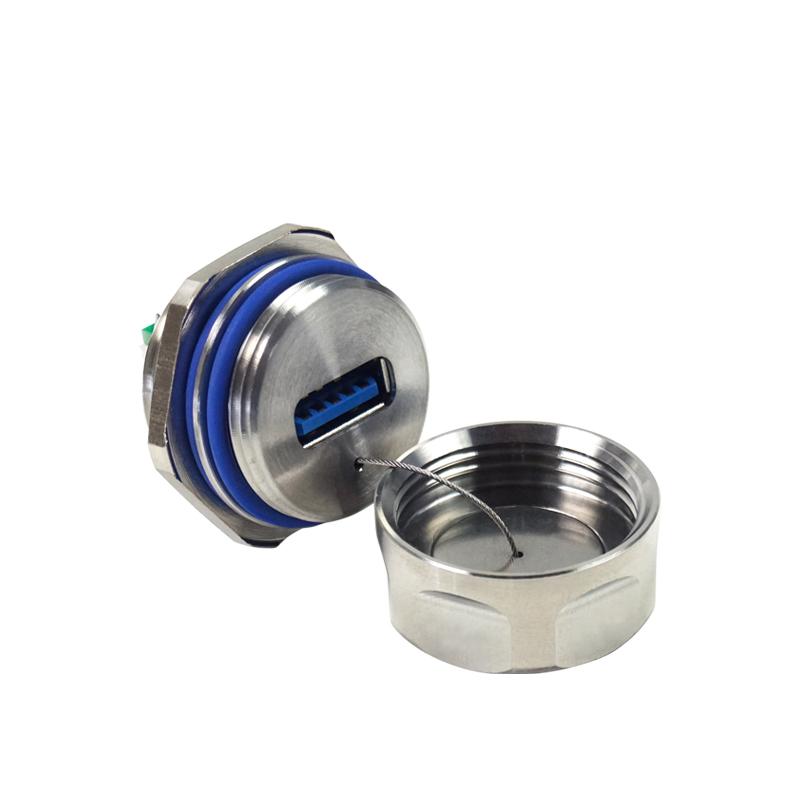

Our IP67 built-in socket, with its screwable cap and rubber seals, is dust and waterproof and meets the IP67 protection class. In addition, the cap is attached to the socket with an internal safety wire and can therefore not be lost. A self-locking nut is also included in the scope of delivery and can be used with a housing thickness of up to 6 mm. The built-in USB 3.0 connection cable enables data transfer rates of up to 5 Gbit/s (625 MByte/s). The high-quality pass-through socket is ideally suited for heavy-duty use in the medical technology sector and for industrial use.

side 1: IP67 USB 3.0 type A, female; incl. screw-on cap with safety wire rope

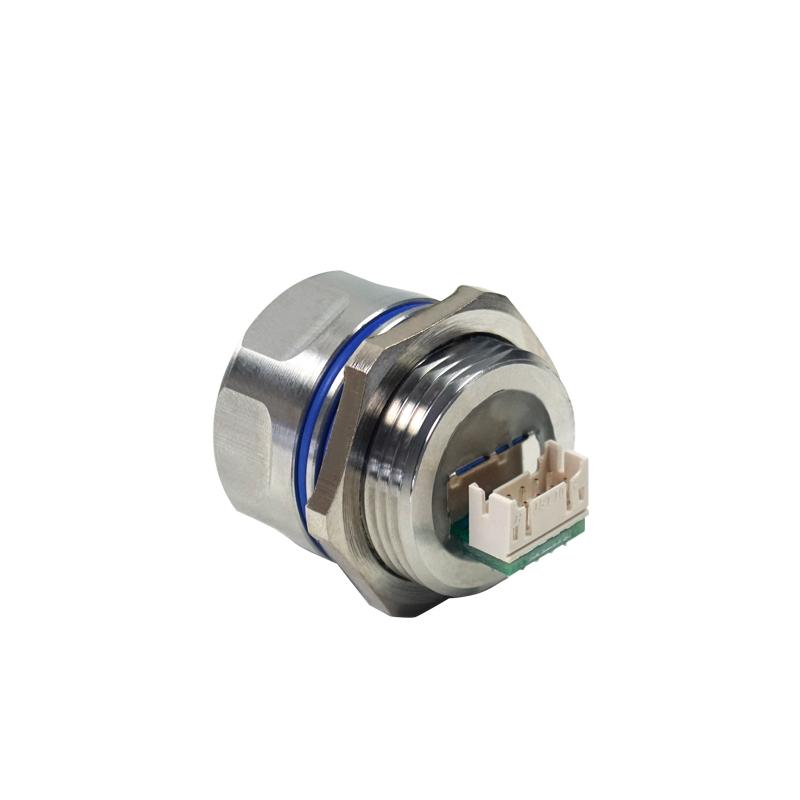

side 2: pin socket (JST B10B-PHDSS)

2 x 5-pin, pitch = 2 mm, lateral outlet

installation depth: max. 22 mm

thread: M25 x 1.5 mm

L = 17.5 mm

socket material: stainless steel

incl. seals and self-locking nut

front panel thickness: up to 6 mm

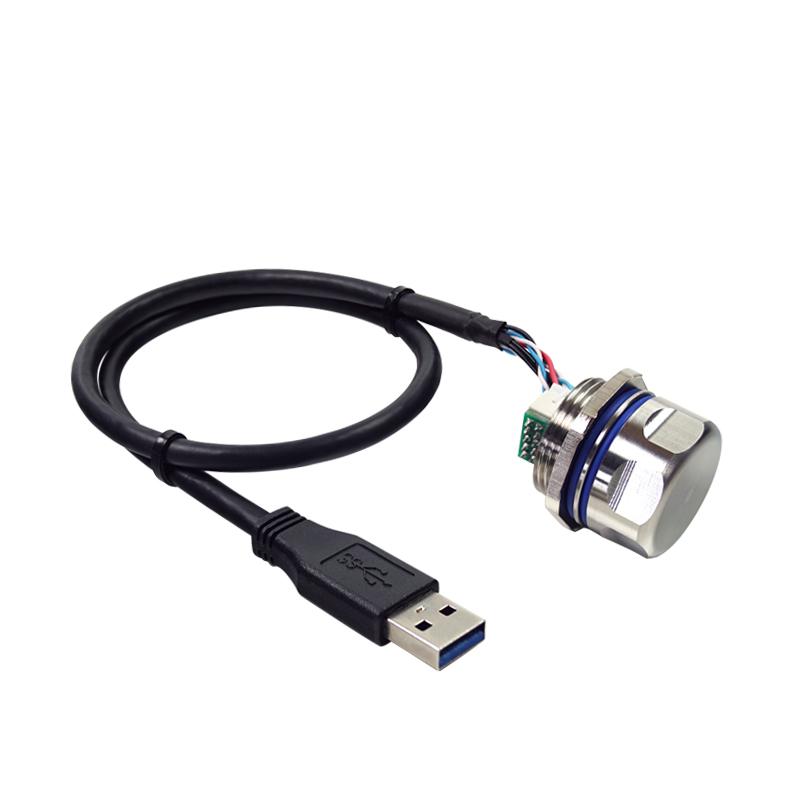

suitable cable: KAB-USB3.0-USB3.0-M-0500RK

weight: 70 g

You need a different version? No problem! Other IP67 solutions are available and can be assembled at any time. Feel free to discuss your desired changes with us, we will adapt the cable to your needs!
