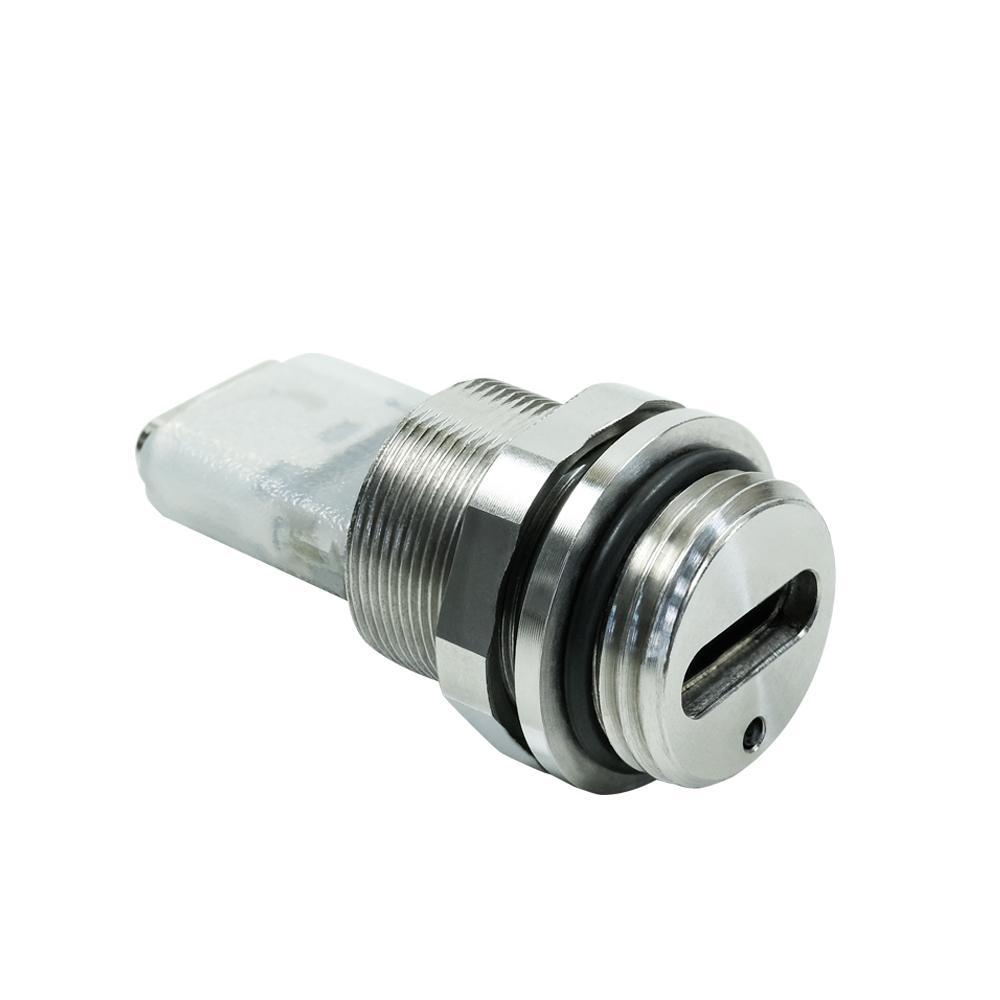

Back to overview New Technical drawing IP67 socket | USB 2.0/3.0 | Type C | M12 STE-IP67-V2-USB-C-F-USB-C-F-PANEL-M12 Technical drawing Stainless Steel Version with USB 2.0/3.0 Support We are pleased to introduce the latest version of our IP67 USB-C through-panel connector. This updated version offers the proven robustness in a durable stainless steel housing and is ideal for industrial applications. The package also includes a protective cap with a seal and wire loop for secure attachment. A nut is also included. Designed with a high-quality housing, the connector is specifically tailored to meet the demands of industrial applications. With its screwable protective cap and internally positioned seal, the IP67 connector achieves IP67 protection class.

Side 1: USB 2.0/3.0 Type C, female

Side 2: USB 2.0/3.0 Type C, female

Material: Stainless steel housing (Stainless Steel 1.4301)

Thread: M12x1; including seal and nut

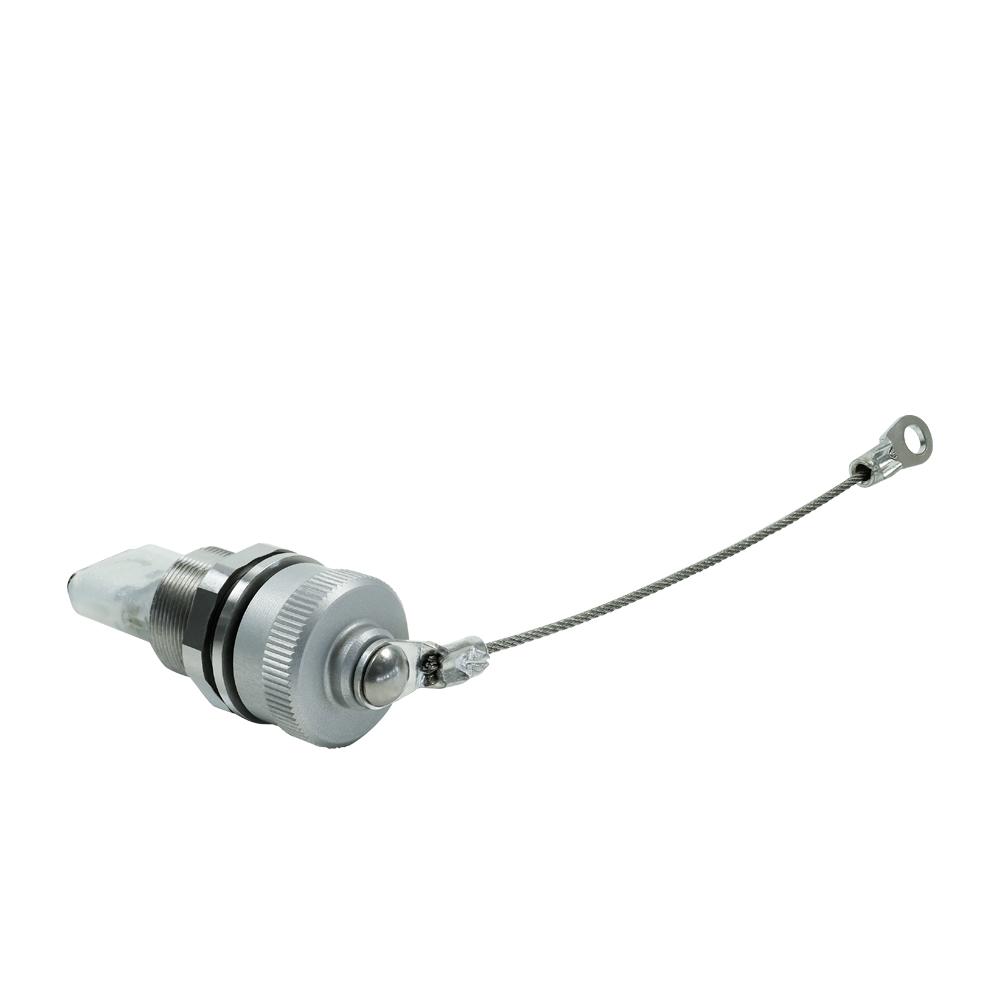

Protective cap with external retention cord

Protection class: IP67

Matching accessories can be found in our IP67 Accessories category.
