KAB-SET-FI-X30XX-DF20A-20DS-0500RK

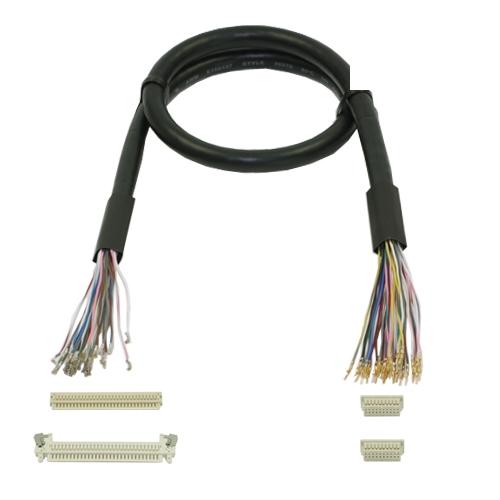

This cable set allows a quick and easy connection between a display with a STM connector P2407P30 und PK2407P30 or Well Lin 1058-H-30P und 1058-HL-30P-HF connector (Both series are compatible to manufacturer JAE with the FI-X series) and any graphics board connectors of Hirose series DF20A-20DS-1C with 20-pin. We supply a 30-pin round cable with JAE compatible connectors of the manufakturers STM or Well Lin on side 1. Two Hirose connectors DF20A-20DS-1C for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: STM P2407P30 (FI-X30H) and PK2407P30 (FI-X30HL) or Well Lin 1058-H-30P (FI-X30H) and 1058-HL-30P-HF (FI-X30HL)

side 2: two DF20A-20DS-1C, double row

wire : roundcable, AWG30, black, UL20276, length = 500 mm

both sides unplugged, 30-pin, twisted pair, shielded,

operating temperature: -1 °C to 80 °C

weight: 30.7 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable fits to the following pin headers:
• FI-XB30SRL-HF11, FI-X30S-HF-NPB, A1006-WR-S-30P, CNTH243A30123, CNT243A3011, CNT243C3011, MDF76K-30S-1H, GT101-30S-H16, 915-001-1008R, 093G30-B0001A, IP100-C30B-C15, IS100-C30B-C15, HS100-L30N-N23, 093G30-B0001A, 093F30, MSCK2407P30B, GT101-30S-HR11, GS23302-0311R, MSCKT2407P30HB, AL230F-A0G1D-P, WF13-422-3033, 187098-30091, CI1406SL00-NH, 187114-30091, SM30B-LD-YGS-10, WL 1058-H, JS-1267-30, MSBKT2407P30HB, MDF76KBW-30S-1H(55)
• Connectors compatible with:
• FI-X30SSL-HF, FI-X30C2L, WL 1058-HL, MDF76-30P-1C, IS100-L30O-C23, 187034-30091, FCI10061851, MSBK2407P30, A1001HS0-30P, DS100-230-H23, DS100-330-H23, DS100-430-H23, P-TWO 196479-40041-3, JS-1266, JS-1276
• The following displays will be supported:
• G215HVN01.0, M156BGE-L10, B141PW01, B150XG02, B170UW02, IAQS80, IAQS80F, IAQX10, IAQX10M, LB064V02, LB064V02, LB064V02-A1, LB104V03, LB104V03-A1, LB104V3, LC230W02, LC230W02-A5K1, LC230WX3, LC260WX2, LC300W01-A3, LC300W01-A5, LC320W01, LC370W01-A5, LC370WX1, LC420W02, LC420W02-AK, LC420WX5, LC550W01, LM170E01, LM170E01-A5, LM170E01-LTA1, LM170E02, LM170E03, LM171W02, LM181E06-A4M1/D4, LM190E01-C4, LM190E02-A4, LM190E03, LM190E03-B4, LM190E05, LM190E05-SL02/03, LM190E06, LM190E08, LM190E3-B4K1, LM190WX1, LM201U02-A3M1, LM201U03-A3, LM201U04, LM201U04-A3, LM201U05, LM201W01, LM201WE03, LM201WE2, LM220WE1, LM260WU1, LM300W01-A3, LM300WQ3, LP133WX1, LP133WX2, LP141WX1, LP141WX3, LP150E05/E06, LP150X08, LP150X09, LP154W01, LP154WP1, LP154WX4, LP171WP4, LQ190E1LX31, LQ201U1LW21, LQ255T3LZ19, LQ315T3LZ28, LQ315T3LZ49, LTM170E6-L04, LTM170EU, LTM170EU-L01, LTM170EU-L21, LTM170EU-L31, LTM190E1, LTM190E1-L01/L03, LTM190E4-L01, LTM190EX, LTM190EX-L01, LTM190M2, LTM213U6, LTM213U6-L01, LTM240M1, LTM240M2, LTM300M1, M170EG01, M170EN05, M190PW01V0, M201UN02, M201UN03V0, N150P2-L04, N150P3-L04, N150U3, N150X4-L01, N150X4-L14, NL128102BC29-01, NL128102BM29-05A, NL12810BC29-10, NL10276BC24-19D, UMSH-8013MD, UMSH-8013-1T, UMSH-8013MD-2T, T104X1D2, T200XW02, T315XW02, T460HW01, TX43D55VM0BAA, TX43D57VC0CAA, TX54D13VC0CAA, TX80D17VC0CAC, LQ190E1LW01, LQ190E1LW41, T260XW01VM, D420WXN, C370WXN, LC320WXN, LK315T3LA31, LK315T3LA33, LK315T3LA51, LK315T3LA53, LK315T3LA57, LK315T3LZ93, LK315T3LZ94, LTM170ET01, G170EG01, M190A1-L0A, G104X1-L01, AM-1024600BTMQW, G220SW01, G185XW01, HV150UX1, LQ070Y3LG4A, LM230WF3-SLB1, LM215WF3-SLA1, LQ121S1LG71, LB121S03-TL03, G104X1-L04, G104X1-L03, HSD190MEN5, LC170WXN, LTM230HT05, G190EG01-V1, LB070WV8-SL01, LD101WX1, M170EGE-L20, P270HVN01.0, M215HGE.L21, LM270WF5, DLF_DLH1975, FG100451DSSWNG01, G156BGE-L01, LB070WV8, M236HJK-L5B, G170EG01V1, LD101WX1-SL01, TCG070WVLRPCGD118, AM1024600L2TMQW-01H, LQ156M3LW01, NL192108AC18-02D, G150XTN06.1_rev1.0, G240HW01, AM-1280800J3TZQW-00, AM-800480D2TMQW-TA0H, LQ185M3LW01, G104XVN01.0, OT104EXWDLV-H1, OT104KXWDLV-00, G121EAN01.0, G121EAN01.1, G121EAN01.2, G121I1-L01, OT121ABWDLT-03, OT121ABWDLV-H0, OT121ZBWDLV-00, LQ121K1LG59, G150XTN06.1, G151EVN01.0, G156HAN02.1, G156XTN01.0, G156XTT01.1, G156XW01 V1, G156XW01 V3, OT156CBWDLT-00, LQ156M3LW01, G170EG01 V1, G170ETN02.0, LB170E01-SL01, G173HW01 V0, G185HAN01.0, G185XW01 V0, G185XW01 V1, M185XTN01.2, G190EAN01.0, G190EAN01.1, G190EAN01.2, G190EG01 V1, G190EG02 V1, G190ETN01, G190SF01 V0, M190PW01 V8, LB190E02-SL02, LB190E02-SL03, LB190E02-SL04, LQ190E1LW52, LQ190E1LW72, LQ190E1LX75, LQ190N1LW01, G220SVN01.0, G230HAN01.1, LM230WF3-SLD1, G238HAN01.0, G238HAN01.1, G238HAN01.2, LM238WF1-SLE1, G240HW01 V0, G240HW01 V1, LM240WU8-SLE1, LM240WUA-SSA1, LM270WF5-SLN2, CLAA104XA02CW, CLAA104XA01CW, CLAA104XA12BW, TM070RDSG12, G156XTT01 V1, G185XW01 V201, G150XVN01.1, G170ETN01.0, G170ETT01.0, G185XW01 V2, VGG107603-0TMLWD, VGG107603-0TMLWC, VGG128005-0TMLWB, VGG107606-6UFLWA, VGG137601-2UFLWA, G185BGE-L01, M238HCJ-L31, G215HVN01.0, AM-1024768FTMQW-05H, AM-1024600L3TMQW-01H, AM-1280800J3TZQW-00, LQ190E1LW02, ETML1010K6DHA, EJ101IA-01G, EJ101IA-01D, DV215FHM-NN0, G215HAN01.3, G215HCJ-L01, EV238FHM-N11, MV230FHM-N10, MI210UT-1, ETML1210G0DRA, NL10276AC30-53D, NL128102AC29-17, LM215WFA, G240HW01V1, G215HVN01.3, JIC-192FILXXNL000-01, G156HAN02.3, G170ETN03.1, TM156VDSG17, OT070ZGWDLV00, G070ACE-L01, P215HAN01.2, G104XCE-LH1, G070ACE-LH3, G156HAN04.0, LM270WF7, PH128800T003-ZFA, PH128800T003-ZFC01, DLC1850BDP00LF-C-2, G190EG02V1(V104), P1850FHF1MB01, P1730FHF1MB00, P1560FHF2MA00, G156HAN04.1, G215HCJ-LH1, ETML121025LUDYA

Product Notes

The following board is supported : aStone A9r2 - armstone A9r4

Matching backlight cable : KAB-DF19G-14S-0500RK
