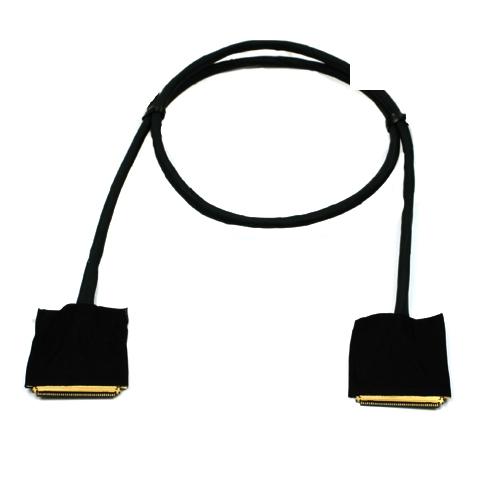

Informations about CABLINE VS Technical drawing KAB-I-PEX-20453-030T-0500-1:1-ROUND Informations about CABLINE VS Technical drawing I-PEX CABLINE VS series, cable for high speed LVDS applications especially for LCD display control.

side 1: 20453-030T , pitch = 0.50 mm

side 2: 20453-030T , pitch = 0.50 mm

round cable AWG40, micro-coax, configuration 1:1

weight: 9 g

Key Features

• standard cable length L = 500 mm
• 30 pin connector, pitch 0.50 mm, two-sided
• flat design, counter part on PCB with maximum height of 1.00 mm
• reliable shielding by metal frame
• mechanical detent towards shock and vibration
• This cable is also available as ribbon cable in different pins available. 20-pin version on request.

Product Notes

Ribbon cable e.g. 30 pin.: KAB-I-PEX-20453-030T-0500-1:1-FLAT

Series compatible with: JAE HD1P030MA1, TE 5-2069716-3, STARCONN 111B30-1210TA-G3, Hirose KN38-30S-0.5H, KN38B-30S-0.5H, CSTAR LS050-W40B-H10-G , 20453-230T-11

Mating connectors: STM MSAK24025P30, PK24025P30, FOXCONN GS13301-1110A-7H, JAE HD1S030HA1, STARCONN 111A30-0000RA-G3, I-PEX-20455-030E, I-PEX 20455-040E-12R, ACES 50473-030, UJU IS050-L30B-C10, STARCONN 300E30-0010RA-G3

Fits for display: HX104X01-212, HV101WX1, FG100180DSSWNG01, B156HW01 V3 , N156BGE-E41, N173HGE-E11, B140XTN3.2(H/W:0A), G156HTN01.0, LP156WH4-TPA1, N156BGE-E41, N173HGE-E11, DLF1095‐ENN‐A01, G156HTN01.0 REV.1.0, LM270WR2-SPA1, LTD111EXCA, G150XTK01.1, G150XTN03.4, G150XTN03.7, G150XTN03.8, G150XTN06.6, G150XTN06.7, G156HAN02.0, G150XTK02.0, G150XTN06.A, G133HAN02.0, LM238WR2-SPE1, N133HCE-GA1, N116HSE-EBC, NV133FHM-N52, TM116VDSP01-00, G156HAN05.0, TM116VDSP02, LM270WR3, TM116VDSP02 - 00, PV156FHM-N20, IPS156A102A, G121ACE-LH2, G185HAN01.4, G101ICE-LH3, G101ICE-LH1, G101EAN02.4, G116HAN01.0, G121ACE-LH1, P1160FHF1MA00, G1010ICE-LH1, G154ICE-LH1

Fits for eDP™ display: B140HAN01.1_rev1.1, G156HTN01.0, VVX09F035M10, LP141WP2-TPA1, LP156WF4-SPU1, M116NWR4R1, NV156FHM-N42, LM237WR2-SPB1, LQ133M1JW03, NV140FHM-N41, B116XTN02.2, LD116WH1-SPN1, N133BGE-E41, LP140WHU-TPD1, LP140WF3-SPC1, LP140WF3-SPD1, LP140WF3-SPL1, LP140WF3-SPL2, LP140WF1-SPK3, LP125WF2-SPB3, LP156WHB-TPB1, CLAA140UA01 CN, NV133FHM-N43, LP140WF3-SPL2, LP140WF3-SPL1, LP140WF3-SPD1, LP140WF3-SPC1, LP140WF1-SPK3, LP140WH2-TPA1, LTN156AT39-H01, LTN140KT14-401, NV156FHM-N41, LQ133M1JW08A, LP140WH8-TPC2,N156HGE-DB1, B116XAN02.7, M125NWR2 R1, B173HTN01.1, N140HCE-EAA, LTN156HL07-401, N173HGE-E21, LM133LF1L01, LP125WF2-SPB4, LTN156HL02-201, LQ133M1JW08, N156BGE-E42, N116HSE-EBC, LP156WF6-SPF1, LP156WF6-SPD1, LP156WF6-SPA1, LP156WF6-SPB1, B140XTN03.4, LQ133M1JW02, LTN133HL03-201, LTN156HL01, LP173WF4-SPD1, HB140WX1-601, LQ133M1JW07, N133BGE-EAB, N133BGE-EAA, B156HTN03.7, VVX09F035M20, LP116WF1-SPA2, LP133WF2-SPA1, CLAA101FP07, B133HAN02.0, M140NWR4 R1, M116NWR1 R7, LM270WR2-SPA1, B156HTN03.5, B140HAN01.3, LP156WHB-TPC1, LP156WHB-TPA1, NT116WHM-N21, N156BGE-E32, N133BGE-E01, LP140WH8-TPE1, LP140WH2-TPSH, LP140WH2-TPTH, LP133WH2-SPA2, LP156WHU-TPBH, LP156WHU-TPD1, LP156WF4-SPH3, LP140WF1-SPK1, LP140WH8-TPC1, NT156WHM-N12, N116HSE-DJ1, HB156FH1-301, G156HTN01.0, LP156WH4-TPP2, LP156WF4-SPL1, LP116WH6-SPA2, LP116WH6-SPA1, LP133WF1-SPA1, HN116WX1-102, LP156WH3-TPTH, LP156WHB-TPD1, N156BGE-EB2, N156BGE-EA2, N156HGE-EBB, N156HGE-EAB, LP116WH6-SPA1, LP116WH6-SPA2, LP133WF1-SPA1, LP156WH3-TPSH, LP156WH3-TPTH, VVX13F009G00, N133HSE-EA3, N133HSE-EB3, N133HSE-EB2, B156XTN04.1, B156XTN04.0 , B116XTN02.1, B133XTN02.1, B140HTN01.2, N156HGE-EA2, B140HTN01.1, HB140WX1-301, HB140WX1-401, HB140WX1-501, N140HGE-EAA, VVX11F009G00, VVX13F009G10, M125NWN1 R0, HB125WX1-100, HB125WX1-200, LP156WH3-TPS2, N116HSE-EA2, N156BGK-E33, N156BGE-E31, N156BGE-E11, N140BGE-E43, N133BGE-E51, N116BGE-EA2, LP173WF4-SPF1, VVX10F011B00, LP156WH4-TPP1, N173FGE-E23, N173HGE-E11, B116XAN03.2, B133HAN02.3, B125XTN02.0, B125XTN01.0, LP156WF4-SPH1, M133NWF2 R0, LP140WHU-TPB2, HB133WX1-402, CLAA133WB03, M133NWN1 R3, LP173WD1-TPE1, LP156WHU-TPA1, LP156WH3-TPT2, LP156WH3-TPS1, LP140WF1-SPU1, LP140WF1-SPJ1, LP140WF1-SPB1, B156HTN03.0, B156HTN03.4, LP125WH2-SPT1, LP125WH2-TPH1, LP140WH2-TPT2, LP140WH2-TPS1, LP140WHU-TPA1, LP140WF1-SPB1, LP156WHU-TPB1, B156XTN03.5, N140FGE-E32, N140BGE-E33, B140XTN03.2, LP140WH2-TPT1, N156BGE-E41, LP156WF4-SPK1, LP156WF4-SPU1, N156HGE-EB1, N156HGE-EA1, LP133WH2-SPA1, N133BGE-EB1, B140RTN03.0, N133BGE-E31, LP156WHA-SPA1, B156HAN01.2, B156HAN01.1, B140HAN01.2, B133HAN03.0, M133NWN1 R1, HN116WX1-100, B140XTN01.1, N156BGE-EB1, N156BGE-EA1, N133HSE-E21, B116HAN03.0, B116XAN02.0, B140XTN02.4, N140BGE-EB3, N140BGE-EA3, N140FGE-EA2, N116HSE-EJ1, LP156WF4-SPB1, LTN121AP05-302, N133HSE-EA1, N116HSE-EA1, B116XTN01.0, B140XTN02.1, N133HSG-DJ1, B140XTN01.0 , LP140WD1-TPD1, LP156WF1-TPB1, LP140WH1-TPD1, B140XW01 V4, B140RW01 V2, B133XTN01.2, B116XW05 V004, LP133WH1-TPD1, LP141WP2-TPA1, LP156WH2-TPB1, N141I6-D11, LC133LF4L01, NV156FHM-N43, NT173WDM-N21, LP156WH4-TPA1, LP156WHA-SPA2, LP156WHU-TPA1 ACER Laptop, LM340UW1-SSA3, LP156WF6-SPM2, NT116WHM-N22, HN116WX1-101, HB133WX1-301, NV156FHM-A11, VVX10F087J00, LP156WHU-TPH1, LP156WHU-TPH1, LP173WF4-SPF4, B173HAN01.1, TV101WXM-NP1, B173HTN01.0, B140XTN03.9, LP156WF6-SPK3, N133HSE-EA2, N125HCE-GN1, B133XTN01.6 HW4A, B133XTN01.6 HW2A, B133XTN01.6 HW1A, B140HAN03.0, B140HAN01.8, B140HAN01.7, N156HCA-EA1, B156XTN07.1, N133HCE-GP1, B125XTN03.0,

Compatible with boards: ​C6-AD-T6T2
