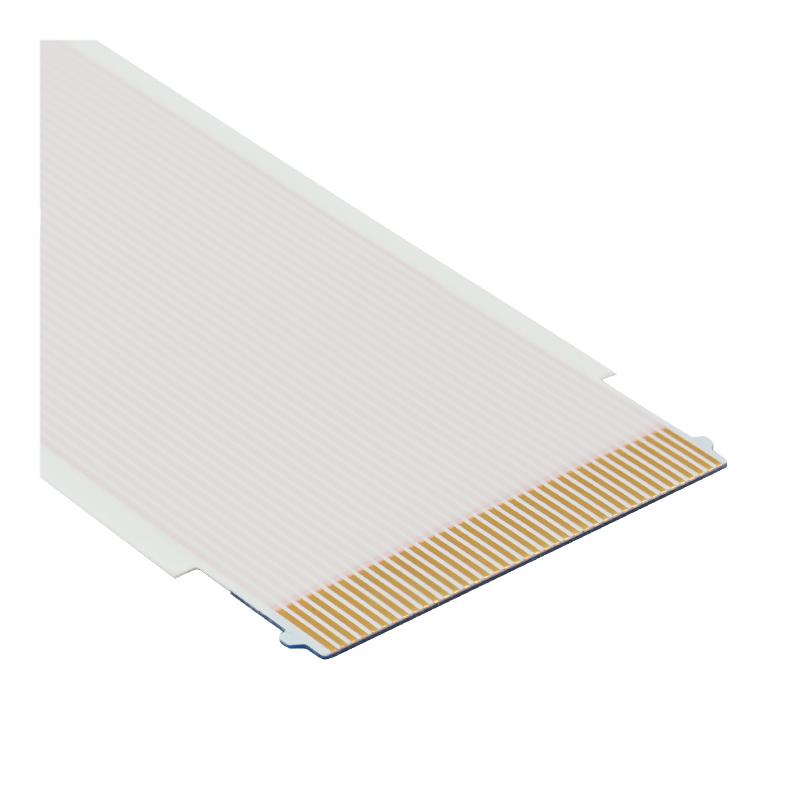

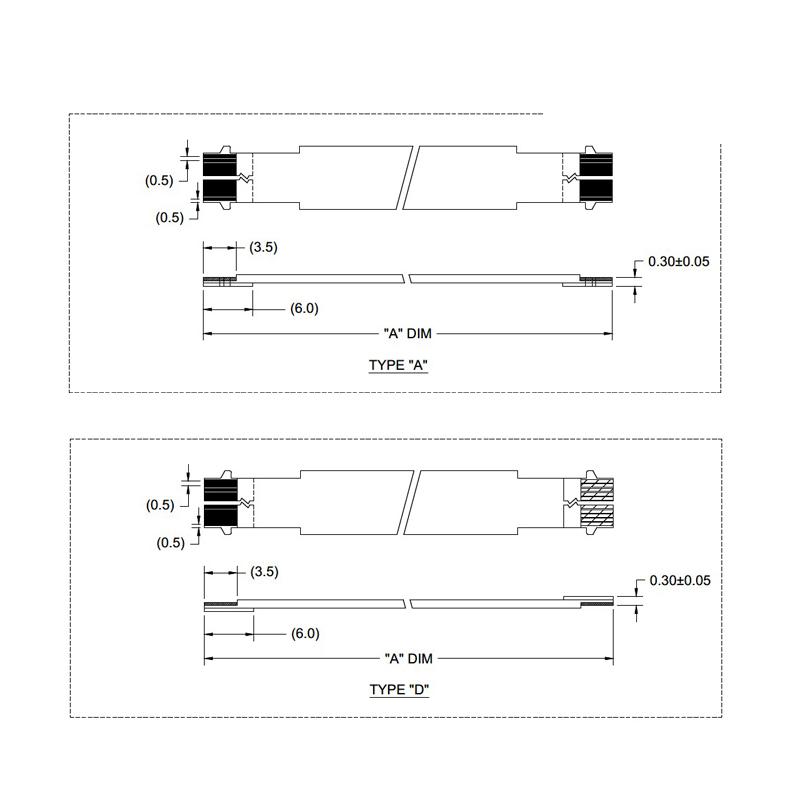

Technical drawing Information Premo-Flex FD19 FFC with side catcher | Pitch: 0.50 mm | 40-pin FFC0.50A40-0196L-3.5-3.5-06-06-AU-SC-FD19 Technical drawing Information Premo-Flex FD19 With this 40 pin FFC cable you get a durable and very flexible solution for PCB connections. The so-called Premo-Flex FFC is suitable for MOLEX FD19 connectors (series 15018). The unique notched design of the side catchers ensures a reliable connection and protects against accidental removal. FFC, 40-pin with side catcher, stripped on both sides

pitch: 0.50 mm

total length: 203 mm

conductor: 0.05 x 0.32 mm

contact material: nickel 0.3 μm and gold 0.05 μm

cut-outs for MOLEX connector FD19

voltage: max. 60 V AC

current: max. 0.5 A

dielectric strength voltage: 200 V AC per 1 minute

insulation resistance: min. 10 MΩ per km

conductor resistance: max. 730 Ω per km

heat resistance: 168 hours at +135ºC

humidity resistance: 95% relative humidity exposed for 96 hours

bending angle: min. 20 cycles

temperature range: -40 ºC to +105 ºC

RoHS compliant UL 20861

Key Features

• suitable for Easy-On FFC/FPC connectors
• high reliability and fast data rates
• ideal for small spaces
• easy mounting
• Fields of application:
• display panels, LCD displays
• automotive industry, car navigation, car infotainment, LCD displays
• industry
• robotics
• printer, scanner
• flat-screen television
• refrigerators
• vacuum cleaner
• augmented reality/virtual reality (AR/VR) headphones
• …
• Suitable connectors for the circuit boards (4 to 80 pin):
• 5051100492 - 4-pin
• 5051100592 - 5-pin
• 5051100692 - 6-pin
• 5051100792 - 7-pin
• 5051100892 - 8-pin
• 5051100992 - 9-pin
• 5051101092 - 10-pin
• 5051101192 - 11-pin
• 5051101292 - 12-pin
• 5051101392 - 13-pin
• 5051101492 - 14-pin
• 5051101592 - 15-pin
• 5051101692 - 16-pin
• 5051101792 - 17-pin
• 5051101892 - 18-pin
• 5051101992 - 19-pin
• 5051102091 - 20-pin
• 5051102191 - 21-pin
• 5051102291 - 22-pin
• 5051102391 - 23-pin
• 5051102491 - 24-pin
• 5051102591 - 25-pin.
• 5051102691 - 26-pin
• 5051102791 - 27-pin
• 5051102891 - 28-pin
• 5051102991 - 29-pin
• 5051103091 - 30-pin.
• 5051103191 - 31-pin
• 5051103291 - 32-pin
• 5051103391 - 33-pin
• 5051103491 - 34-pin
• 5051103591 - 35-pin
• 5051103691 - 36-pin
• 5051103791 - 37-pin
• 5051103891 - 38-pin
• 5051103991 - 39-pin
• 5051104091 - 40-pin
• 5051104191 - 41-pin
• 5051104291 - 42-pin
• 5051104391 - 43-pin
• 5051104491 - 44-pin
• 5051104591 - 45-pin
• 5051104691 - 46-pin
• 5051104791 - 47-pin
• 5051104891 - 48-pin
• 5051104991 - 49-pin
• 5051105091 - 50-pin
• 5051105191 - 51-pin
• 5051105291 - 52-pin
• 5051105391 - 53-pin
• 5051105491 - 54-pin
• 5051105591 - 55-pin
• 5051105691 - 56-pin
• 5051105791 - 57-pin
• 5051105891 - 58-pin
• 5051105991 - 59-pin
• 5051106091 - 60-pin
• 5051106191 - 61-pin
• 5051106491 - 64-pin
• 5051106891 - 68-pin
• 5051107091 - 70-pin
• 5051108091 - 80-pin

Product Notes

The following displays will be supported: TX38D203VM0BAA
