Product catalogue: I-PEX EVAFLEX® 5-VS

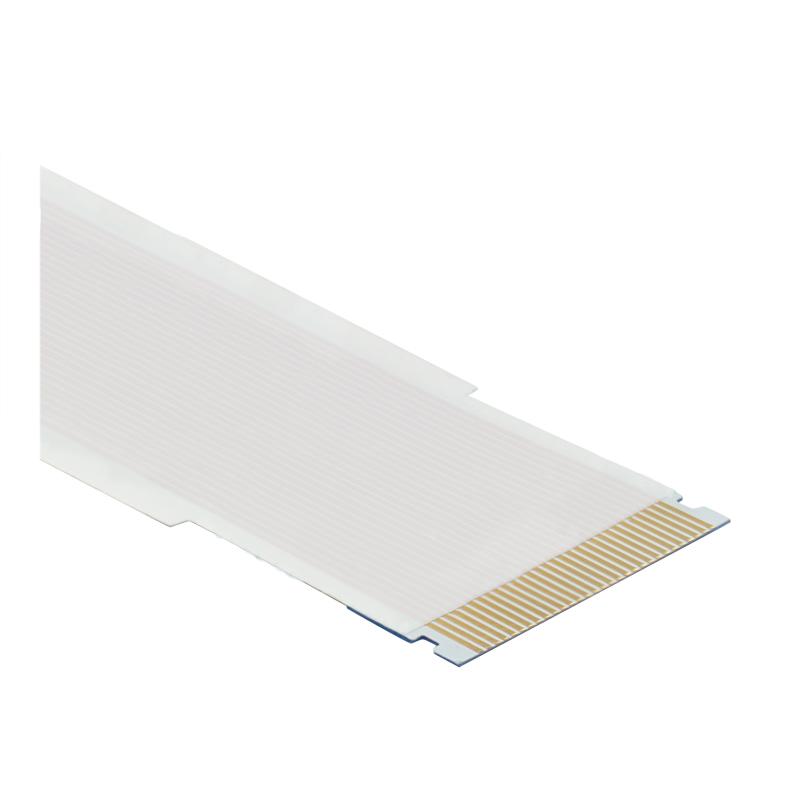

FFC for I-PEX EVAFLEX® 5-VS | Pitch: 0.5 mm | 30-pin

FFC0.50A30-0294L-3-3-06-06-SC-EVA Product catalogue: I-PEX EVAFLEX® 5-VS

This 30 pin FFC is compatible with the I-PEX connector of the EVAFLEX® 5-VS series. This article is an example, we can always customize the FFC cable to your requirements and produce it for you in other pole numbers and lengths. The following pole numbers can be selected: 10, 15, 20, 24, 30, 40 pins. EVAFLEX® 5-VS supports 8+ Gbps high-speed signals. The I-PEX connector is compatible with CABLINE®-VS/VESA® standard notebook PC-LCD connectors and can be mounted on the same PCB with a layout for VESA® standard CABLINE-VS sockets. The unique W-point contact design of I-PEX has also been used for EVAFLEX®, providing a highly reliable contact connection. I-PEX W-point contact prevents poor contact with foreign particles between contact and FFC/FPC conductor. The contact reliability is much better than with typical single point contact designs. In addition, the FFC is protected against unintentional removal by a side catcher.

board pitch: 0.5 mm

height: 1.9 +/- 0.1 mm

width: 6.25 +/- 0.5 mm

depth: 4.95 mm

wiping length: 1.1 mm

FFC/FPC insertion depth: 3.3 mm

FFC/FPC type: shielded/non-shielded FFC/FPC

FFC/FPC thickness: 0.33 +/- 0.03 mm

contact point: Signal: Upper | GND: Lower

compatibility footprint pattern: CABLINE - VS

current rating: 0.5 A/pin (7.5 A/conn)

supported standard: PCI Express 3.0 (8 Gbps)

operating condition: -40 °C ~ +105 °C, 85 % RH max (type CH)

For more details, see the attached EVAFLEX® I-PEX . In addition, this FFC cable is an impedance controlled foil cable. Impedance controlled high speed FFC cables offer optimal transmission characteristics! This FFC is suitable for high speed data transmissions without loss of signal quality. With increasing, higher serial data speeds, maintaining signal integrity and quality becomes more difficult or impossible. Here, impedance-controlled foil cables are the right choice! This impendance matched FFC cable is coated on one side with an aluminium shield foil. Inductive and capacitive properties of the cable are thus adjusted to the required differential impedance, predominantly 100 Ohm. Further information about our impedance controlled FFCs can be found here . FFC cable for EVAFLEX® 5-VS, 30-pin pitch 0.50 mm side catcher for EVAFLEX® 20535-030E connectors gold-plated contacts one side is coated with aluminium foil differential impedance = 100 Ohm L = 300 mm UL 20706 Suitable connectors :

20535-010E

20535-015E

20535-020E

20535-024E

20535-030E

20535-040E
