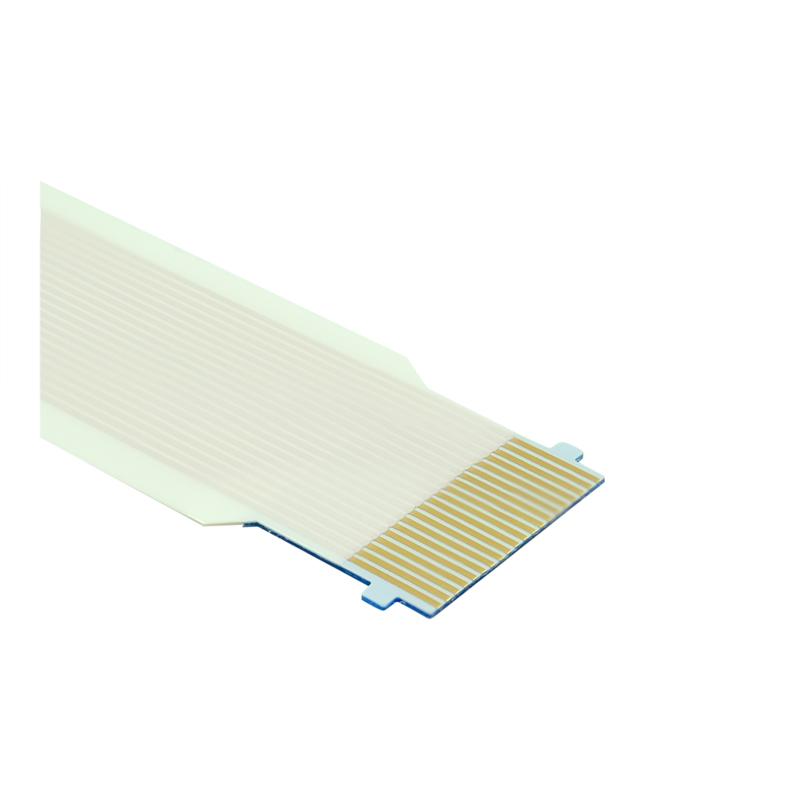

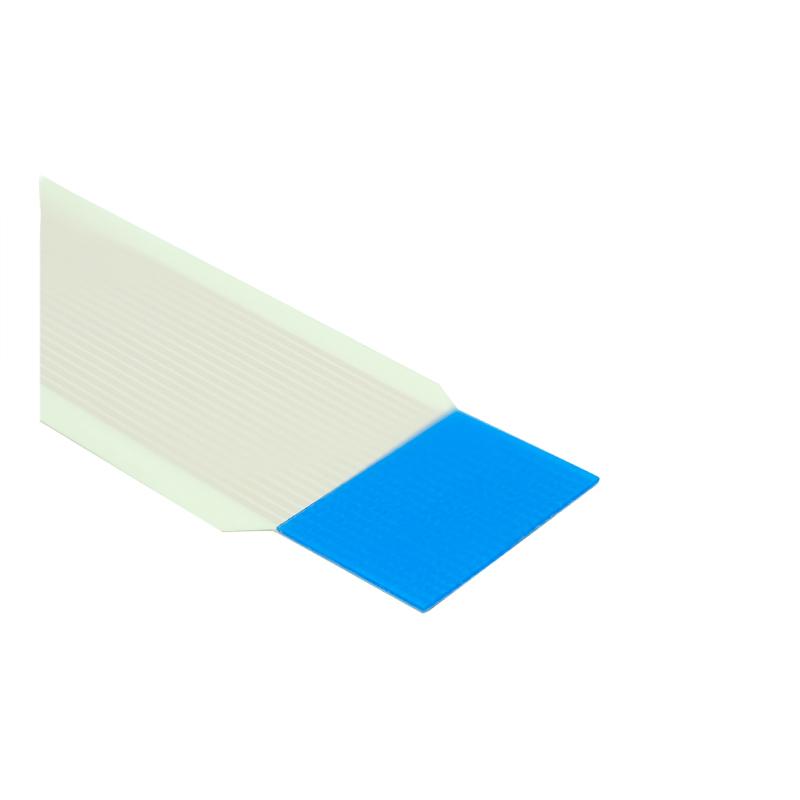

Technical drawing FFC with side catcher | Pitch: 0.50 mm | 20-pin FFC0.50A20-0092L-4-4-08-08-AU-SC-TF38-ONE-SIDE Technical drawing We are pleased to introduce our new foil cable with a pitch of 0.50 mm and 20 pins. This high-quality cable features a uniform insulation and a total length of 100 mm, making it an ideal choice for numerous applications. Our FFC is UL20861 certified, which means it has a maximum temperature resistance of 105 °C and a rated voltage of 60 V. It consists of a conductor with dimensions of 0.05 x 0.32 mm and is equipped with gold-plated contacts to ensure excellent conductivity and resistance to corrosion. In addition, the FFC features «side catcher» for the HIROSE TF38 connector series on one side, making it easy to connect to other devices. You need side catchers on both sides? No problem, you can also order this variant from us. With its high-quality craftsmanship and excellent performance characteristics, this cable is ideal for applications such as data transfer control and electronic devices. ribbon cable, 20-pin

pitch: 0.50 mm

conductor: 0.05 x 0.32 mm

uniformly insulated

total length: 100 mm

gold-plated contacts side catcher for HIROSE TF38 on one side UL 20861 (105 °C, 60 V) Overall, this foil cable is an excellent choice for users who require a reliable, high-performance, and easy-to-install cable. If you have any questions or concerns please do not hesitate to contact us. Additionally, this FFC cable can be customized to meet your specific requirements. Please feel free to get in touch with us and let us know your needs. We are happy to assist you!

Suitable for connector from HIROSE: TF38-20S-0.5SV
