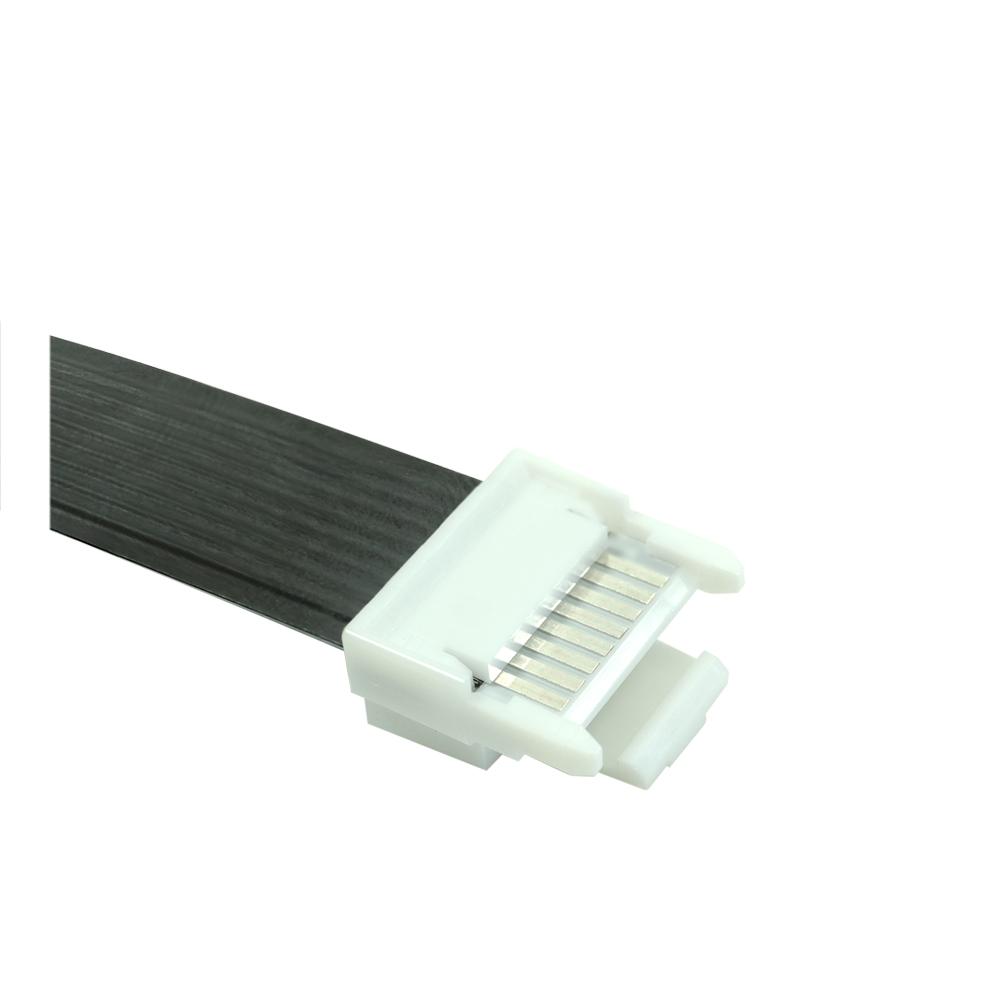

Back to overview New Flexible Flat Cable | 1.00 mm Pitch | 8-pin KAB-HS100-L09N-0400FFC-SW This high-quality, flexible flat cable with a 1.00 mm pitch is specifically designed for compact and reliable connections in electronic applications. With a total length of 400 mm and connectors pre-assembled on both sides (UJU HS100-L08N-N62-A), it offers easy and secure handling, even in tight spaces.

Side 1: UJU HS100-L08N-N62-A connector

Side 2: UJU HS100-L08N-N62-A connector

Stripping: Equal stripping

FFC Cable: 8-pin, black

FPC/FFC Connectors (for display and LED power supply)

Pitch: 1.00 mm

Connector Dimensions: Height: 6.2 mm, Width: 10.95 mm

Compatible with FFC thickness: 0.40 ± 0.03 mm

Housing Material: PA66 (natural), UL94V-0

Maximum Current: 1.0 A per contact

Contact Resistance: Max. 50 mΩ

Insulation Resistance: Min. 50 MΩ at 500 V DC

Operating Temperature Range: -35 °C to +85 °C

Total Length: 400 mm

Compatibility: Compatible with IS100-L08T-C46-A and IS100-L08T-C46-C

Key Features

• Compact design for space-saving and efficient applications
• Easy handling with connectors on both sides
• Reliable signal transmission due to premium material quality
• Flexible and durable, ideal for use in demanding environments
• High adaptability to tight space requirements
• Versatile applications due to compatibility with various connectors
• Versatile Applications
• This flat cable is ideal for use in various fields such as electronics, industry, medical technology, and automation engineering. It provides reliable control and signal connections, especially in devices with limited space. Thanks to the precise 1.00 mm pitch and high-quality connectors, you can rely on stable performance and easy integration into your applications. The integrated connector is particularly well-suited for use in mobile devices, displays, and PCs, offering a perfect solution for connecting display and LED power supplies.
• Do you have any questions or need a custom solution? Contact us – we are happy to advise you and offer tailored solutions that perfectly meet your requirements.
