Technical drawing FFC for HIROSE FH41/FH48 | pitch: 0.50 mm | 50-pin FFC0.50A50-0146E-2-2-06-06-AU-SC-FH41 Technical drawing This FFC cable type is particularly suitable for the connector series of the manufacturer Hirose FH41 and FH48 (header) due to its punching out, the so-called “side catcher”.

number of wires: 50

pitch: 0.50 mm (+/- 0.05 mm)

cross sections: 0.05. x 0.32 mm (+/-0.05 mm)

contact length: 2 mm (+/- 0.5 mm)

reinforcement length: 6 mm (+/- 1.50 mm)

contact strength in mating area: 0.3 mm (+/- 0.05 mm)

80°C, 30 V, AC, VW-1

total length: 150 mm

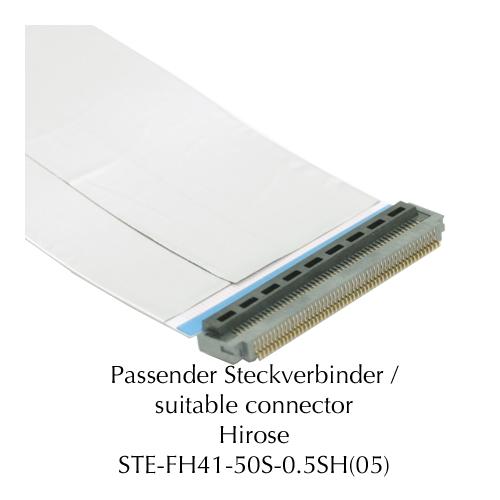

UL 2896 FFC cables fit to Hirose conector series: FH41-50S-0.5SH(05) FH48-50S-0.5SH(05) This FFC cable is also available in the length: 78 mm (FFC0.50A40-0074E-2-2-06-06-AU-SC-FH41) 350 mm (FFC0.50A68-0346E-2-2-06-06-AU-SC-FH41) 798 mm (FFC0.50A68-0794E-2-2-06-06-AU-SC-FH41)

This FFC cable is also available in a hot-melt variant. You are welcome to order this article under this article no: FFC0.50A50-0694E-2-2-06-06-AU-SC-FH41-HOT

In the hot-melt process, the screen is fused around the polyester substrate at a temperature of 150°C. This creates an irrevocable bond between the shield and the polyester carrier, giving the cable its characteristic flexibility. FFC shielded, pitch 0.50 mm, 50 pin. same side stripped, L = 700 mm conductor 0.035 x 0.32 mm UL2896 (80 °C, 30 V) punched holes for Hirose FH41+FH48 gold plating + hot melt shielding with grounding Fits with the following LCD's: TX31D203VM0EAB
