Technical drawing FFC for HIROSE FH52 | pitch: 0.50 mm | 40-pin FFC0.50D40-0044E-3-3-05-05-SC-FH52 Technical drawing This FFC cable type is particularly suitable for the connector series of the manufacturer Hirose FH52 due to its punching out, the so-called “side catcher”. FFC, 40-pin

pitch: 0.50 mm (+/- 0.1 mm)

cross sections: 0.035 x 0.30 mm (+/-0.05 mm)

contact length: 3.5 mm (+/- 1.00 mm)

reinforcement length: 5 mm (+/- 1.00 mm)

contact strength in mating area: 0.3 mm (+/- 0.03 mm)

total length: 50 mm

UL 2896 (80 °C, 30 V), AC, VW-1

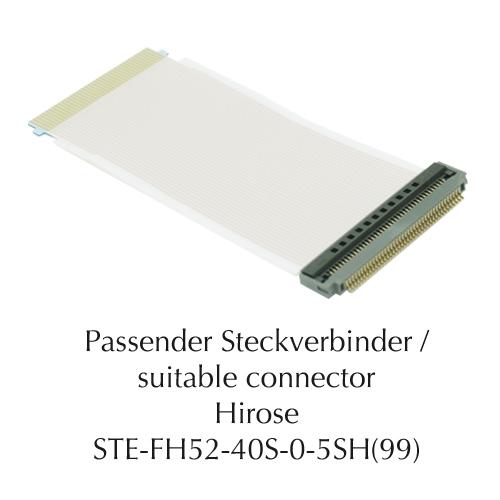

FFC cables fit to Hirose conector series: STE-FH52-40S-0.5SH(99)

Fits for the following displays: G104ACJ-L01, PH128800T002-ZBA, PH128800T002-ZBC01
