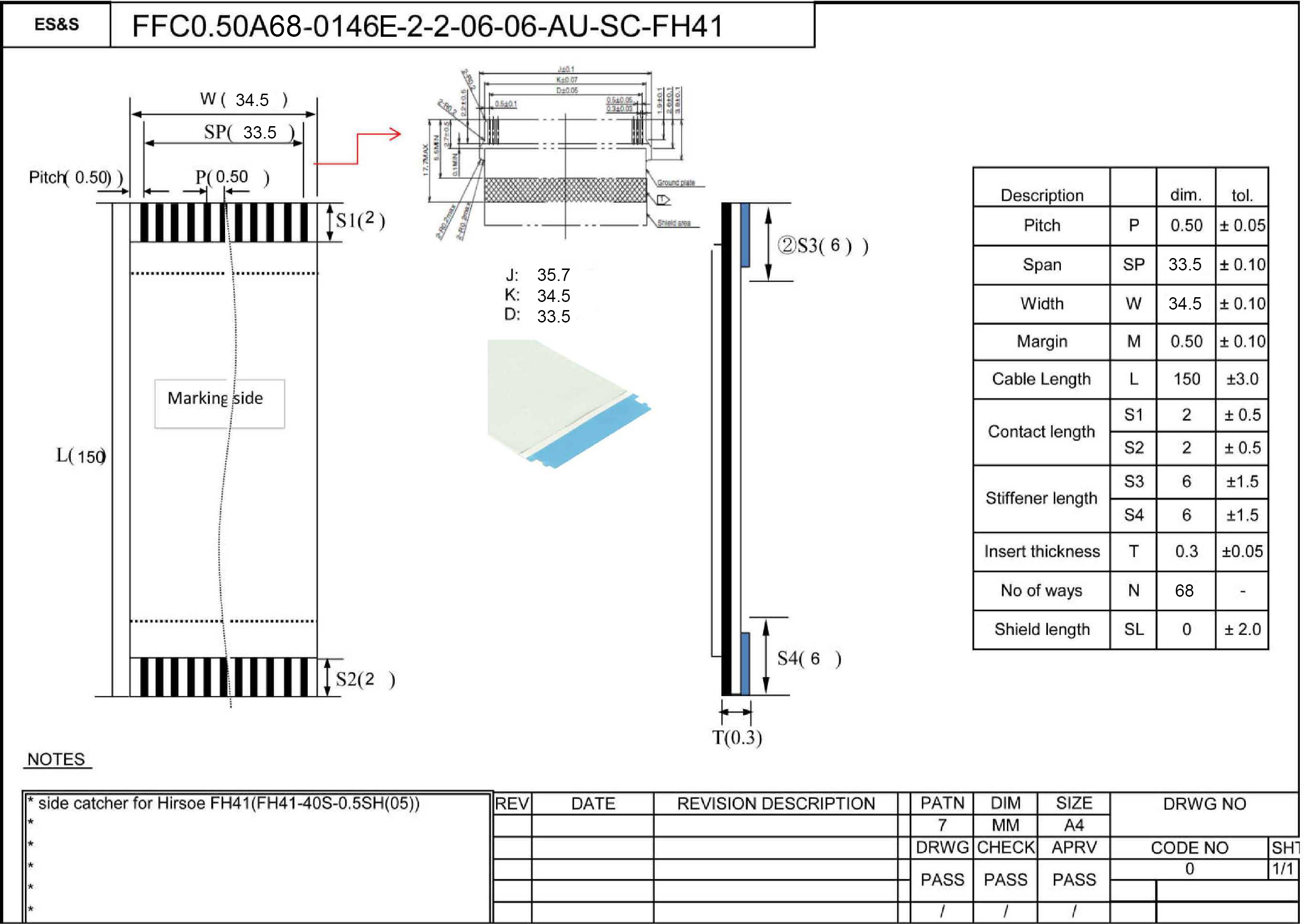

Technical drawing FFC | pitch: 0.50 mm | 68-pin FFC0.50A68-0146E-2-2-06-06-AU-SC-FH41 Technical drawing This FFC cable type is particularly suitable for the connector series of the manufacturer Hirose FH41 and FH48 (header) due to its punching out, the so-called “side catcher”.

number of wires: 68

pitch: 0.50 mm (+/- 0.05 mm)

cross sections:

contact length: 2 mm (+/- 0.5 mm)

reinforcement length: 6 mm (+/- 1.50 mm)

contact strength in mating area: 0.3 mm (+/- 0.05 mm)

80°C, 30 V, AC, VW-1

total length: 150 mm

UL 2896 FFC cables fit to Hirose conector series: FH41-68S-0.5SH(05) FH48-68S-0.5SH(05) This FFC cable is also available in the length: 80 mm (FFC0.50A68-0076E-2-2-06-06-AU-SC-FH41) 350 mm (FFC0.50A68-0346E-2-2-06-06-AU-SC-FH41) 798 mm (FFC0.50A68-0794E-2-2-06-06-AU-SC-FH41)

Compatible with the following displays: LH123WU01, S123WU01
