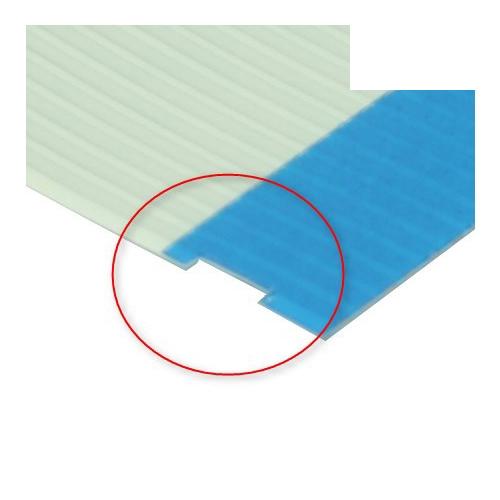

Technical drawing FFC for FCI SFW connector | pitch: 1.00 mm | 30-pin FFC1.00A30-0040L-4-4-06-06SC Technical drawing This FFC cable type is particularly suitable for the connector series SFW (SFW30R-3STE1LF) of the manufacturer FCI due to its punching out, the so-called “side catcher”. FFC, 30-pin

pitch: 1.00 mm (+/- 0.05 mm)

cross sections: 0.65.x0.10 mm (+/-0.02 mm)

contact length: 4 mm (+/- 0.50)

reinforcement length: 6 mm (+/- 1.50)

contact strength in mating area: 0.23 mm (+/- 0.05 mm)

max. power load: 280 mA

insulation resistance: 10 MΩ minimum at 500 V/min

total length: 48 mm

UL 2896 (80 °C, 30 V), AC, VW-1

Applications with connector: SFW30R-3STE1LF (FCI) or compatible connector series of other manufacturers.
