Technical drawing FFC for HIROSE/KYOCERA | pitch: 0.50 mm | 60-pin FFC0.50A60-0192L-4-4-08-08SC-FH28 Technical drawing This FFC cable type is particularly suitable for the connector series of the manufacturer Hirose and Kyocera due to its punching out, the so-called “side catcher”.

number of wires: 60-pin

pitch: 0.50 mm (+/- 0.05 mm)

cross sections: 0.5 x 0.10 mm (+/-0.02 mm)

contact length: 4 mm (+/- 0.50)

reinforcement length: 8 mm (+/- 1.50)

contact strength in mating area: 0.3 mm (+/- 0.05 mm)

80°C, 30 V, AC, VW-1

insulation resistance: 100 MΩ minimum at DC500 V/min

total length: 200 mm

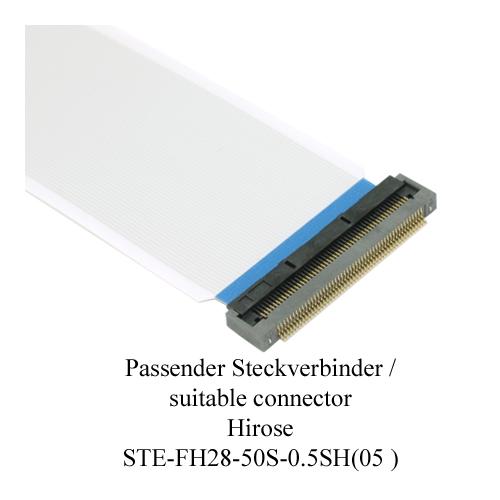

UL 2896 FFC cables fit to conector series: Hirose series

FH40: FH40-60S-0.5SV

FH28: FH28-60S-0.5SH

Kyocera series

AVX 6251: 04 6251 060 010 846+

AVX 6288: 04 6288 060 000 846+

Fits for the following displays: TM070RVHG01, TM104SDHG30-01, AV123Z7M-N17-58P0, TX26D208VM0AAA
