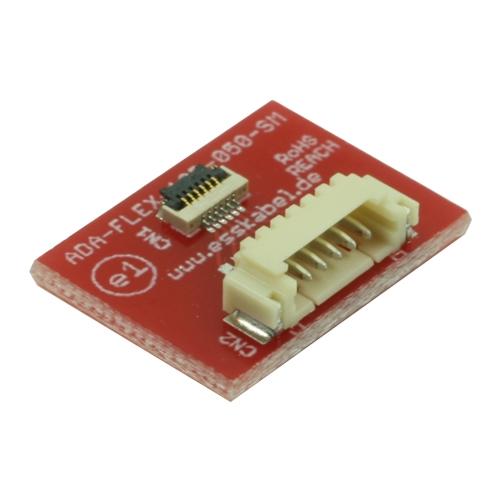

Adapter for FFC/FPC | pitch: 0.50 mm | 6-pin ADA-FLEX-06P-050-SM This adapter is designed for a comfortable connection of FFCs or FPCs with other plug connectors. It has a pitch of 0.50 mm / 6-pin and a height of 0.30 mm. A small adapter board is equipped with a FFC/FPC connector (bottom contact) and a multi-pin connector, 6-pin, pitch 1.25 mm to adapt a crimping socket for single conductors. Pros: small, light weight and low profile easy to handle no customized design for small quantities required customizable

side 1: FFC connector bottom, 6-pin, pitch: 0.50 mm

side 2: 53621-1000 (compatible with 51021-1000), 6 pins, pitch: 1.25 mm

L x W: 15 x 20 mm, assembled to one side

dimension: 15 (l) x 20 (w) x 1.7(h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 4.4 g

Not included in standard scope of supply : R ibbon cable of 500 mm KAB-51021-0600-0500FK with the matching number of poles, 6-pin connector, pitch = 1.25 mm. The FFC/FPC connector is designed for 0.30 mm (+/- 0.05 mm) FFCs/FPCs. The connector applies electrical contact to the FFC/FPC cable from below. You will find the suitable FFC cables with our FFC configurator.

Further lengths are also available upon request at short notice.
