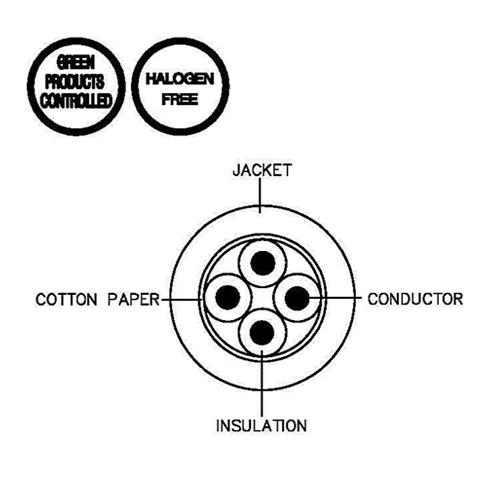

AWG28 Round Cable | 4-pin LTG-MPPE-04XAWG28-UL21455-WH This 4-pin unshielded round wire AWG28 with a strand diameter of only 0.60 mm is especially designed for LED backlight applications. Technical data:

AWG28

4-pin, tin-coated copper strand no halogens, LSOH and RoHS free

outer diameter: 3.0 mm

strand diameter: 0.60 mm

insulation jacket: MPPE-PE

white wire, cable roll = 100 m

operating temperature: -10°C to 80°C,30V

UL 21455 This cable is also available from us in a 6 or 10 pole version ( LTG-MPPE-6XAWG28-UL21455-WH / LTG-MPPE-10XAWG28-UL21455-WH ) or in a five and ten twisted pair version ( LTG-MPPE-5X2XAWG28-UL21455-WH / LTG-MPPE-10X2XAWG28-UL21455-WH ).
