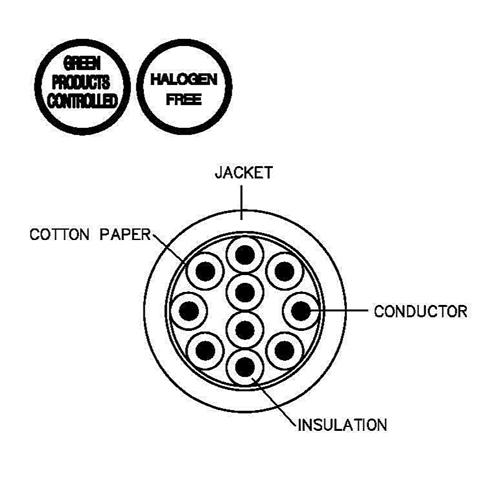

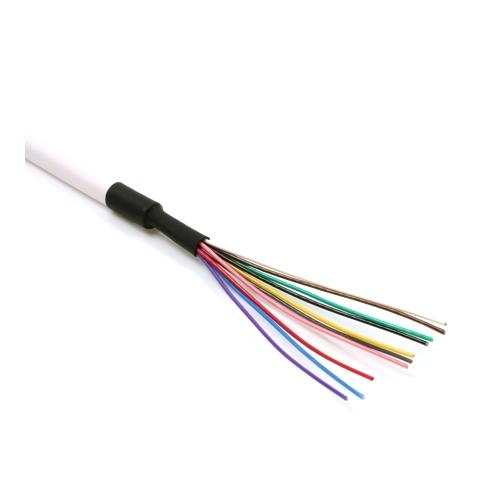

Drawing / AWG28 Round Cable | 10-pin LTG-MPPE-10XAWG28-UL21455-WH Drawing / This 10-pin unshielded round wire AWG28 with a strand diameter of only 0.60 mm is especially designed for LED backlight applications. AWG28, unshielded 10-pin, tin-coated copper strand no halogens, LSOH and RoHS free

outer diameter: 4.0 mm

strand diameter: 0.60 mm

insulation jacket: MPPE-PE

white wire, cable roll = 100 m operating temperature -10°C to 80°C,30V UL 21455
